Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 3 illustrations

Illustrations

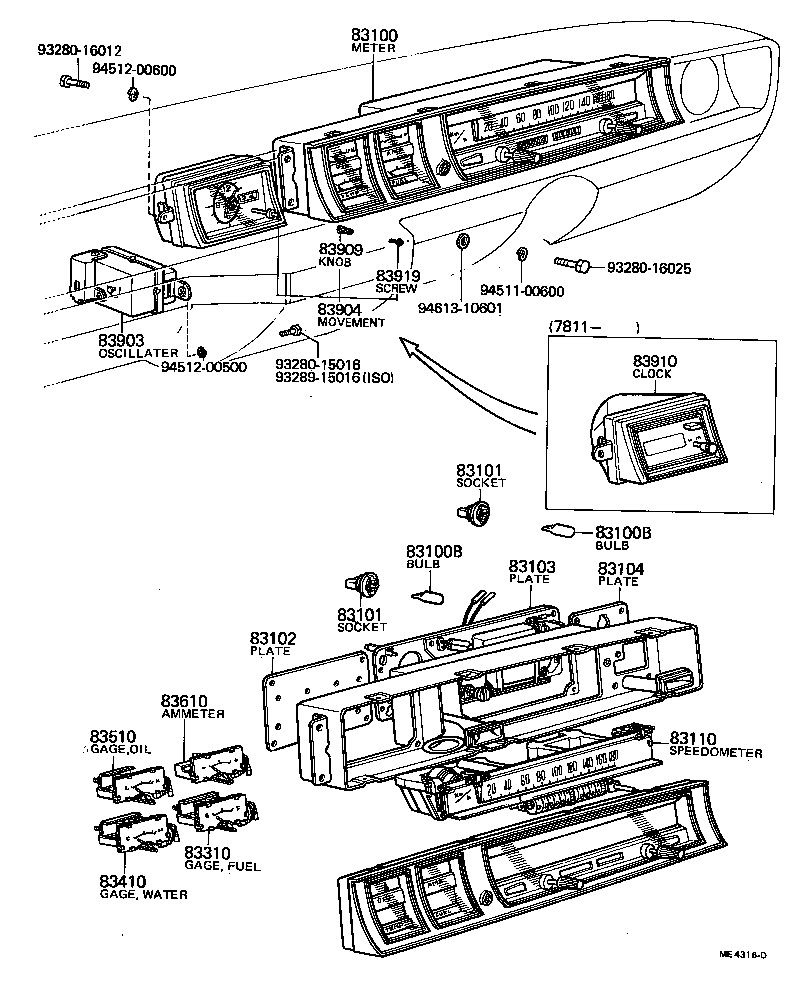

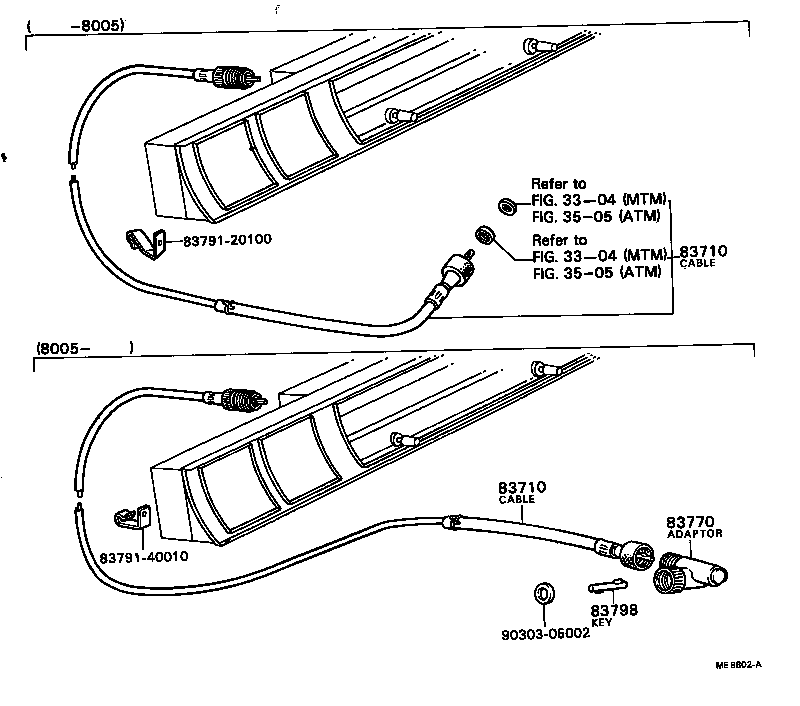

Figure ME4315B ME4315B 1967-11 → 1971-09 Figure ME4316D ME4316D 1967-11 → — Figure ME8802A ME8802A 1967-11 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83104 Plate Sub-assy, Combination Meter Circuit, NO.3
83110 Speedometer Assy
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83510 Gage Assy, Oil Pressure Receiver
83600 Gage Assy, Ammeter And Oil Pressure OR Fuel Receiver
83610 Ammeter Assy
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
83903 Oscillator Sub-assy, Clock
83904 Movement Sub-assy, Clock
83909 Knob, Clock
83910 Clock Assy
83919 Screw, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
