Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03
Cruise Control (AUTO DRIVE)

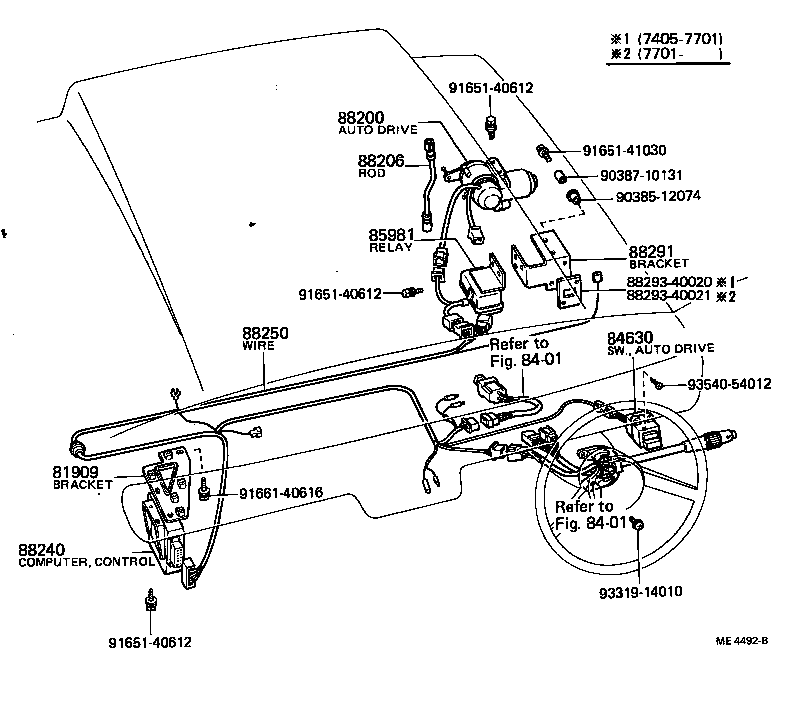

41 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81909 | Bracket Sub-assy, Relay, Autodrive |
| 84630 | Switch Assy, Cruise Control Main |
| 85981 | Relay Assy, Speed Control Actuator |
| 88023 | Control Set, Cruise Control(AUTO DRIVE) |
| 88150 | Relay Assy, Safety, Cruise Control(AUTO DRIVE) |
| 88160 | Generator Assy, Cruise Control(AUTO DRIVE) |
| 88200 | Cruise Control Assy |
| 88201 | Housing Sub-assy, Cruise Control(AUTO DRIVE) Shaft |
| 88203 | Clutch Sub-assy, Cruise Control(AUTO DRIVE) |
| 88203A | Ring, Snap (FOR CRUISE CONTROL(AUTO DRIVE) Clutch) |
| 88203B | Bearing, Ball (FOR CRUISE CONTROL(AUTO DRIVE) Clutch) |
| 88206 | Rod Sub-assy, Cruise Control(AUTO DRIVE) |
| 88210 | Body Assy, Cruise Control(AUTO DRIVE) |
| 88211 | Cap, Cruise Control Body |
| 88212 | Armature, Cruise Control(AUTO DRIVE) |
| 88213 | Gear, Cruise Control(AUTO DRIVE) First |
| 88214 | Gear, Cruise Control(AUTO DRIVE) Third |
| 88217 | Gear, Cruise Control(AUTO DRIVE) Clutch |
| 88219 | Packing, Cruise Control Housing B Terminal Plate |
| 88220 | Motor Assy, Cruise Control(AUTO DRIVE) |
| 88221 | Armature, Cruise Control(AUTO DRIVE) Motor |
| 88222 | Stator, Cruise Control(AUTO DRIVE) Motor |
| 88223 | Holder Sub-assy, Cruise Control(AUTO DRIVE) Motor Bush |
| 88223A | Bush, Cruise Control(AUTO DRIVE) Motor Holder |
| 88224 | Bush, Cruise Control(AUTO DRIVE) Lead Wire |
| 88225 | Housing, Cruise Control(AUTO DRIVE) Motor, NO.1 |
| 88226 | Housing, Cruise Control(AUTO DRIVE) Motor, NO.2 |
| 88226A | Housing, Cruise Control(AUTO DRIVE) Motor, NO.3 |
| 88227 | Housing, Cruise Control(AUTO DRIVE) Motor, B |
| 88228 | Wire, Cruise Control(AUTO DRUVE) Motor |
| 88229 | Bolt, Cruise Control(AUTO DRUVE) Motor |
| 88240 | Computer Assy, Cruise Control |
| 88250 | Wire Assy, TO Cruise Control(AUTO DRIVE) |
| 88260 | Cable OR Rod Assy, Cruise Control Accelerator Linkage |
| 88260A | Turnbackle, Accelerator Connecting Rod |
| 88261 | Rod, Cruise Control Accelerator Linkage Connecting, B |
| 88263 | Joint, Cruise Control Accelerator Linkage Rod Ball |
| 88264 | Clip, Cruise Control Accelerator Linkage Ball Joint |
| 88280 | Relay Assy, Cruise Control(AUTO DRIVE), B |
| 88290 | Relay Assy, Cruise Control(AUTO DRIVE), C |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
