Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

25 part groups · 2 illustrations

Illustrations

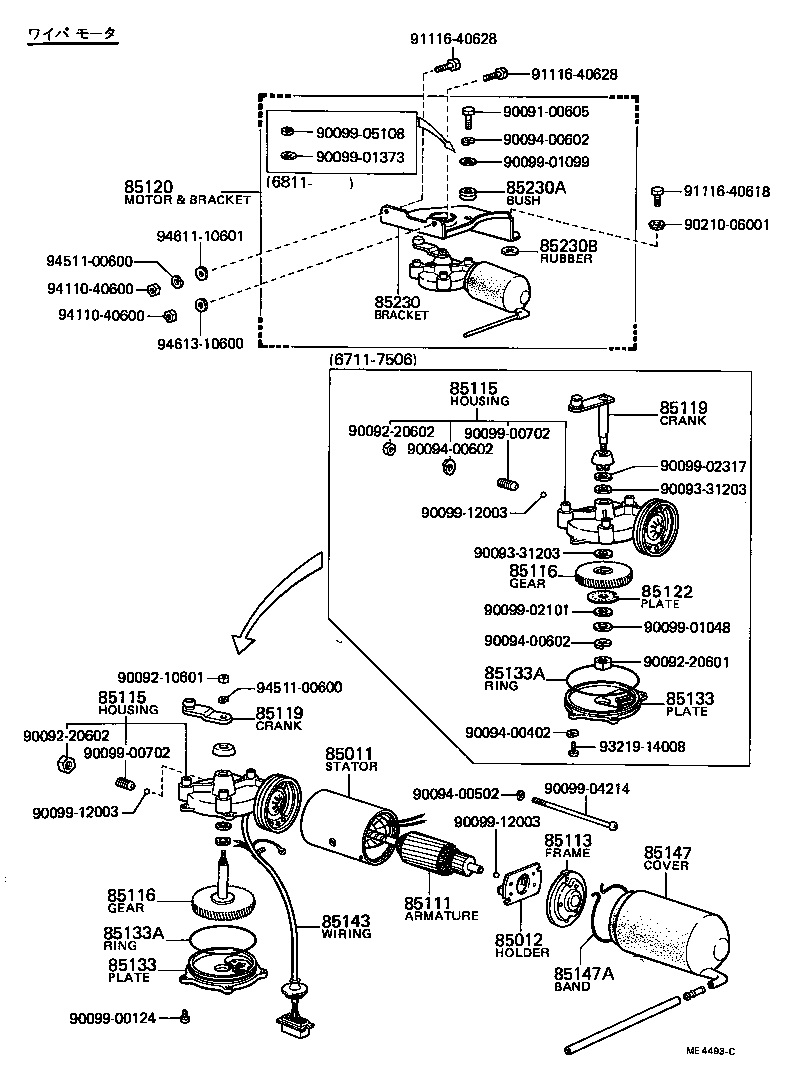

Figure ME0174H ME0174H 1967-11 → — Figure ME4493C ME4493C 1967-11 → —

Part groups

PNCDescription
85011 Stator Sub-assy, Windshield Wiper Motor
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85060 Arm And Blade Assy, Windshield Wiper
85111 Armature, Windshield Wiper Motor
85113 Frame, Windshield Wiper Motor End
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85119 Crank, Windshield Wiper Motor
85120 Motor And Bracket Assy, Windshield Wiper
85122 Plate, Windshield Wiper Motor Cam
85133 Plate, Windshield Wiper Motor Gear Housing Cover
85133A Ring, O (FOR WINDSHIELD WIPER MOTOR GEAR HOUSING COVER)
85143 Wiring, Windshield Wiper Motor Lead
85147 Cover, Windshield Wiper Motor
85147A Band, Windshield Wiper Motor Cover
85160 Link Assy, Windshield Wiper
85163 Packing, Windshield Wiper Pivot
85168 Nut, Windshield Wiper Link Pivot
85178 Nut (FOR FRONT WIPER ARM SETTING)
85188 Cap, Windshield Wiper Pivot, NO.1
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85230 Bracket Assy, Windshield Wiper
85230A Bush, Windshield Wiper Bracket
85230B Rubber, Windshield Wiper Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
