Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

15 part groups · 3 illustrations

Illustrations

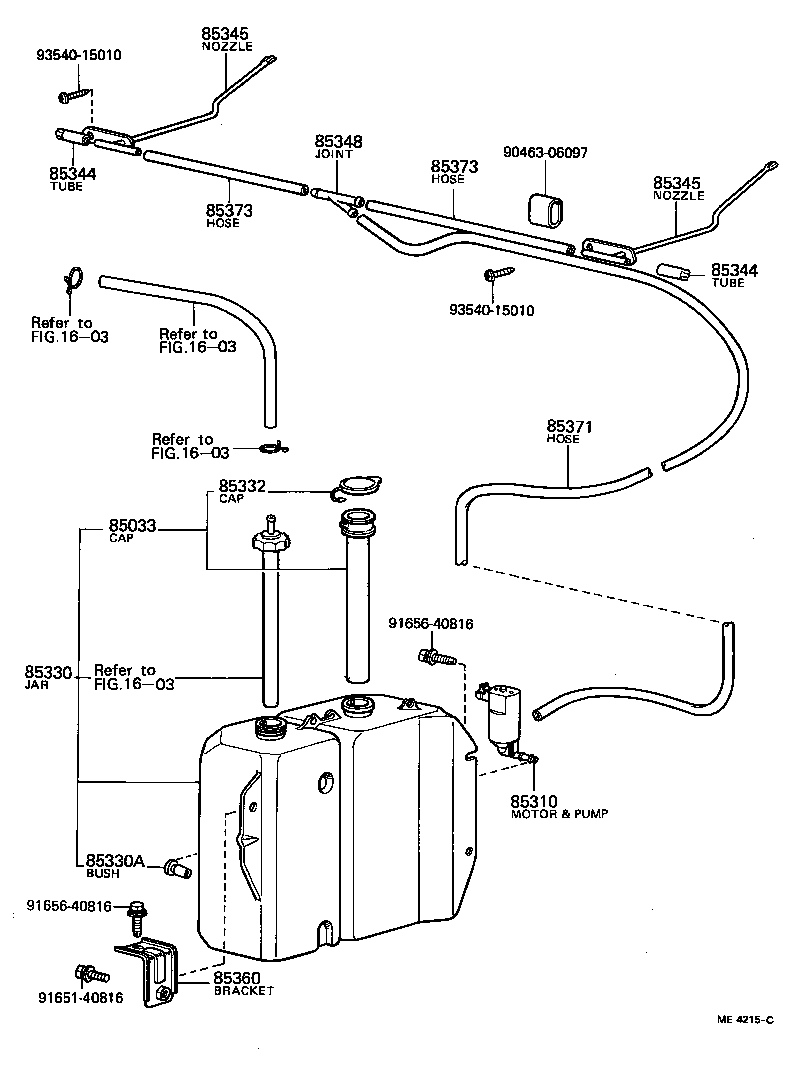

Figure ME0193F ME0193F 1967-11 → 1975-05 Figure ME4215C ME4215C 1975-05 → 1978-11 Figure ME7548C ME7548C 1978-11 → —

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85310 Motor And Pump Assy, Windshield Washer
85316 Support, Windshield Washer Motor
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85343 Hose, Windshield Washer Suction
85344 Tube, Windshield Washer Hose, Stop
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85360 Bracket Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85374 Hose, Windshield Washer (FROM NOZZLE TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
