Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Door Motor & Door Solenoid

52 part groups · 5 illustrations

Illustrations

ME2066C 1967-11 → 1975-05

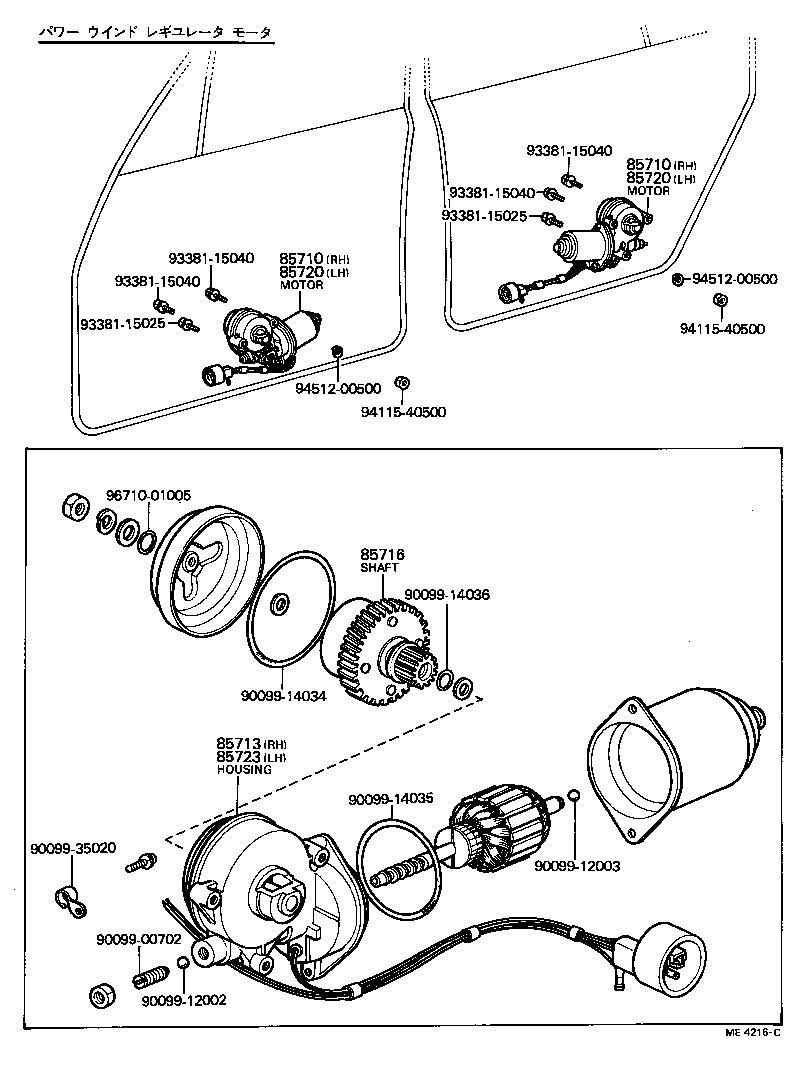

ME4216C 1975-05 → 1975-10

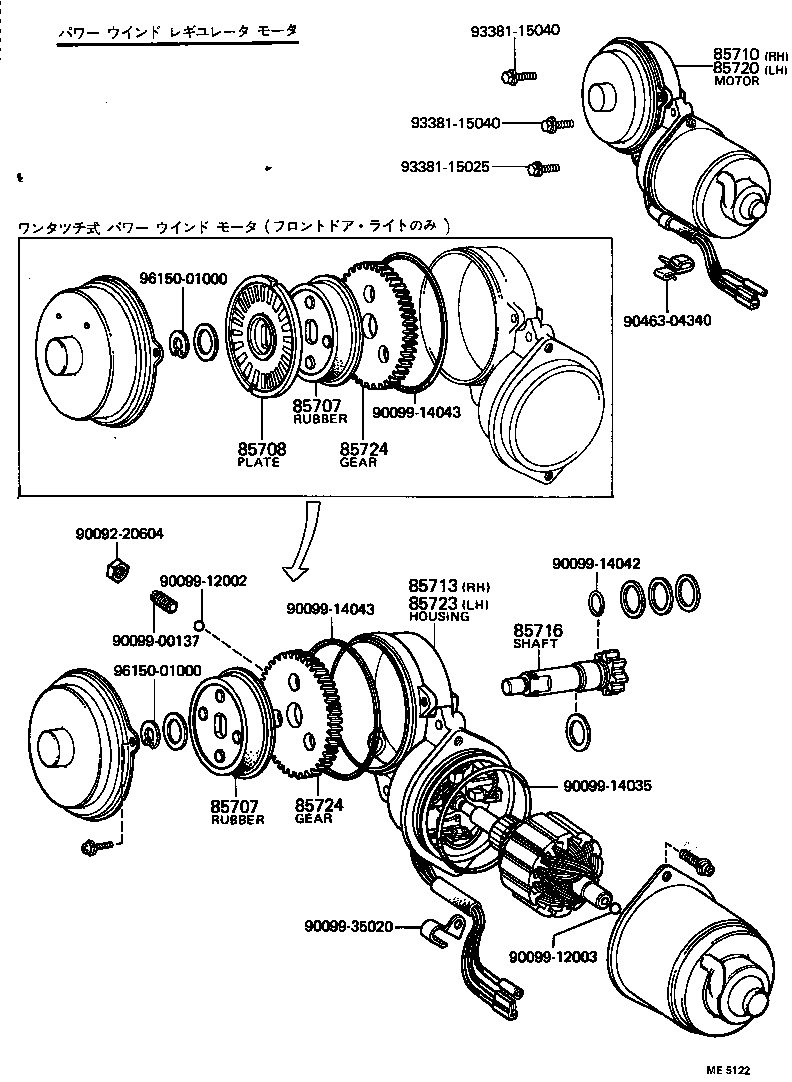

ME5122 1975-10 → —

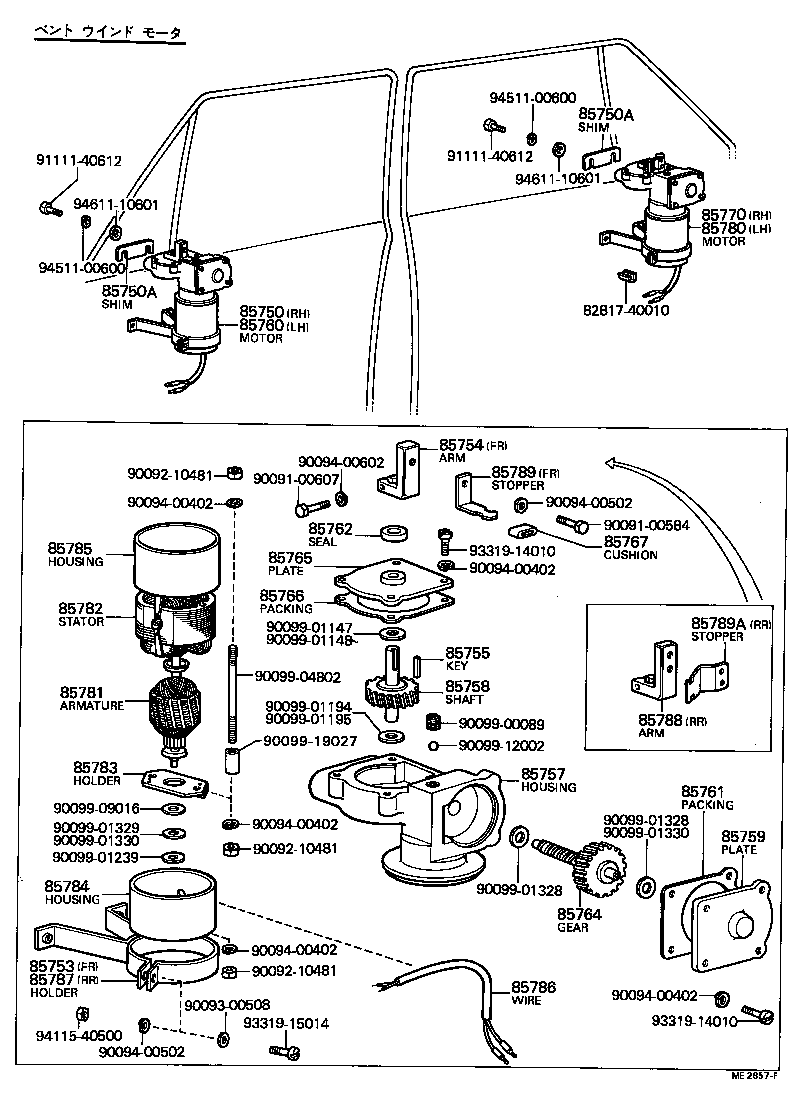

ME2857F 1967-11 → —

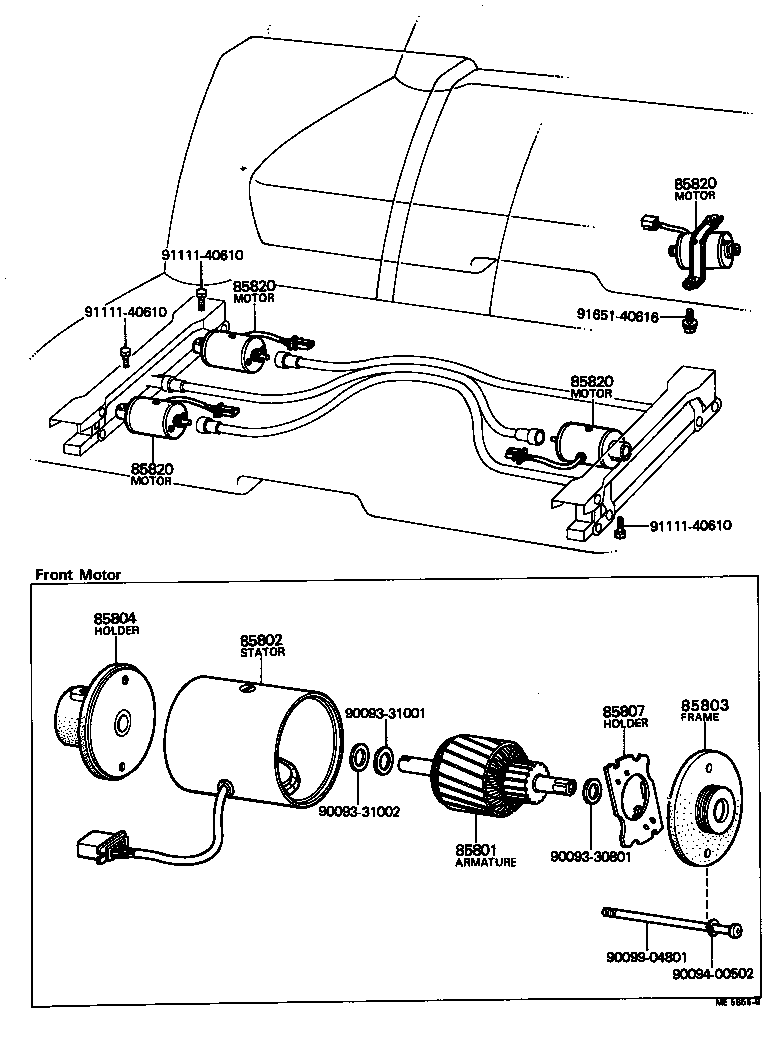

ME5855B 1967-11 → —

Part groups

PNC	Description
85701	Armature Sub-assy, Power Window Regulator Motor
85702	Stator Sub-assy, Power Window Regulator Motor, RH
85702A	Packing, Power Window Regulator Motor Stator
85703	Holder, Power Window Motor Brush
85705	Frame Sub-assy, Power Window Regulator Motor End
85706	Stator Sub-assy, Power Window Regulator Motor, LH
85707	Rubber Sub-assy, Power Window Regulator Motor Cushion
85708	Plate Sub-assy, Power Window Regulator Motor Limitter
85710	Motor Assy, Power Window Regulator, RH
85713	Housing, Power Window Regulator Motor Gear, RH
85714	Plate, Power Window Regulator Motor Cover
85715	Packing, Power Window Regulator Motor Cover
85716	Shaft, Power Window Regulator Motor Drive
85719	Cover, Power Window Regulator Motor, RH
85719A	Band, Power Window Regulator Motor Cover
85720	Motor Assy, Power Window Regulator, LH
85723	Housing, Power Window Regulator Motor Gear, LH
85724	Gear, Power Window Regulator Motor Helical
85729	Cover, Power Window Regulator Motor, LH
85750	Motor Assy, Front Vent Window, RH
85750A	Shim, Vent Window Motor Housing Base
85753	Holder, Vent Window Motor, Front
85754	Arm, Front Vent Window Drive
85755	Key, Vent Window Motor Drive Shaft
85757	Housing, Gear, Vent Window Motor
85758	Shaft, Drive Vent Window Motor
85759	Plate, Cover, Vent Window Motor Housing, Side
85760	Motor Assy, Front Vent Window, LH
85761	Packing, Vent Window Motor Housing, Side
85762	Seal, Vent Window Motor Plate Cover
85764	Gear, Vent Window Motor
85765	Plate, Cover, Vent Window Motor Housing, Upper
85766	Packing, Vent Window Motor Housing, Upper
85767	Cushion, Vent Window Stopper
85770	Motor Assy, Rear Vent Window, RH
85780	Motor Assy, Rear Vent Window, LH
85781	Armature, Vent Window Motor
85782	Stator, Vent Window Motor
85783	Holder, Brush, Vent Window Motor
85784	Housing, Vent Window Motor, Lower
85785	Housing, Vent Window Motor, Upper
85786	Wire, Lead Vent Window Motor
85787	Holder, Vent Window Motor, Rear
85788	Arm, Rear Vent Window Drive
85789	Stopper, Front Vent Window Drive Arm
85789A	Stopper, Rear Vent Window Drive Arm
85801	Armature Sub-assy, Power Seat
85802	Stator Sub-assy, Power Seat
85803	Frame Sub-assy, Power Seat Motor End
85804	Holder Sub-assy, Power Seat Motor Bearing
85807	Holder Sub-assy, Power Seat Motor Brush
85820	Motor Assy, Power Seat (FOR REAR)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
