Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

13 part groups · 3 illustrations

Illustrations

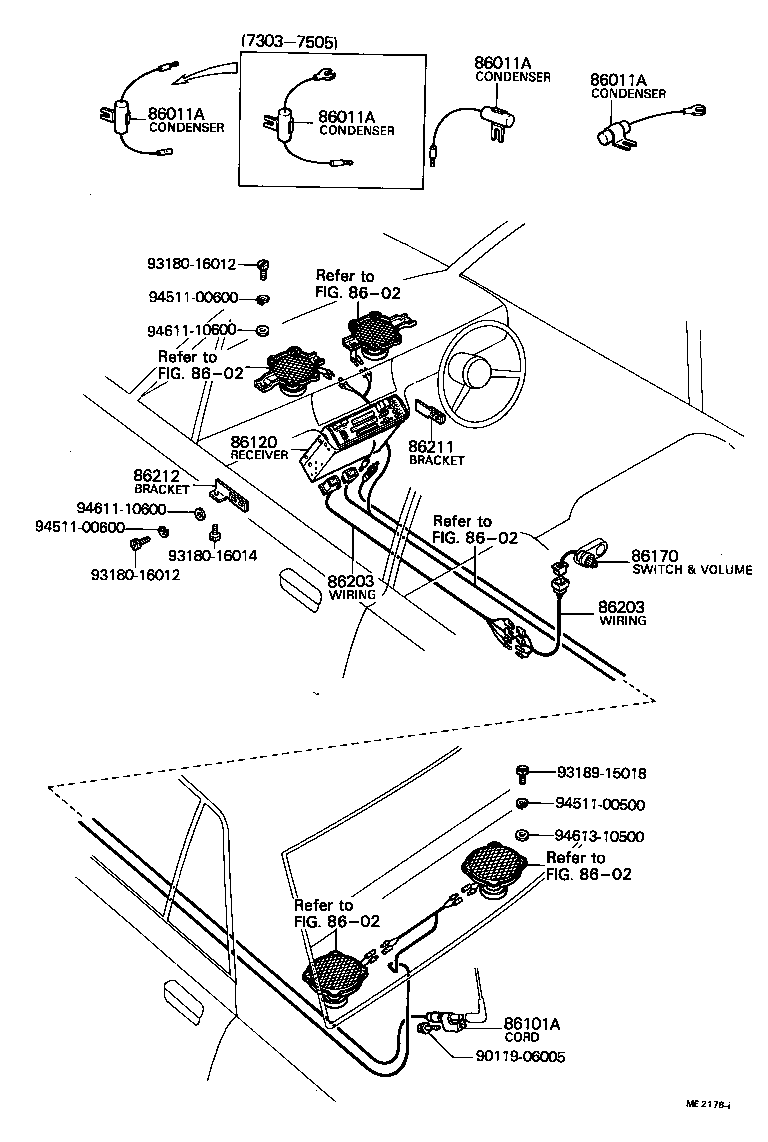

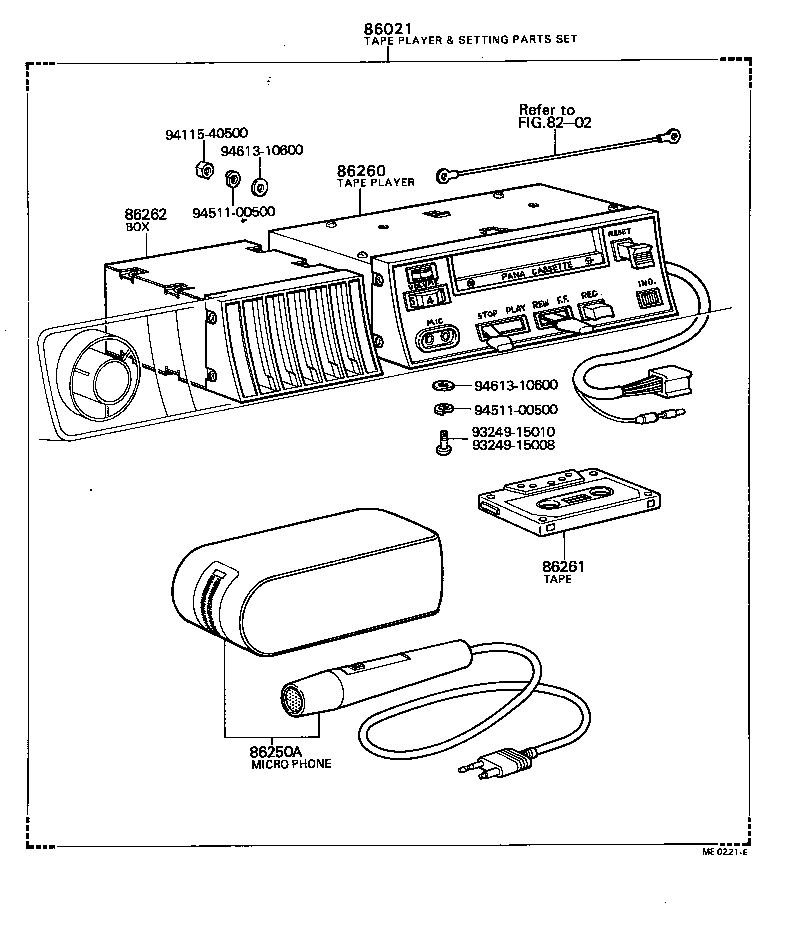

Figure ME0213G ME0213G 1967-11 → 1973-02 Figure ME2178I ME2178I 1973-03 → — Figure ME0221E ME0221E 1967-11 → 1973-02

Part groups

PNCDescription
86011A Condenser, Radio Setting
86021 Tape Player And Setting Parts Set
86100 Radio Assy
86101A Cord Sub-assy, Antenna, NO.1
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86250A Microphone Assy, Tape Recorder
86260 Tape Player Assy
86261 Tape, Tape Recorder OR Player
86262 Box, Tape
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
