Toyota Century
1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan
Discontinued model
Data version 1983-03
Mirror

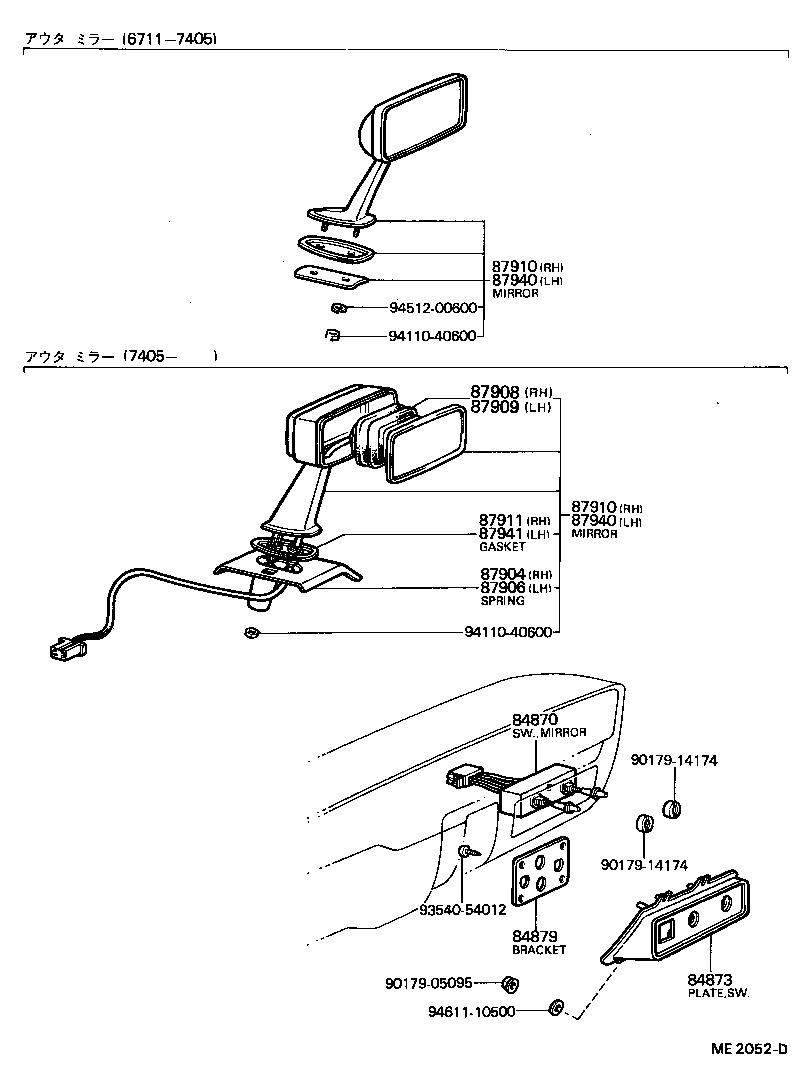

19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115 | Film, Inner Rear View Mirror TO Windshield |
| 84870 | Switch Assy, Outer Mirror |
| 84873 | Plate, Outer Mirror Switch |
| 84879 | Bracket, Outer Mirror Switch |
| 87810 | Mirror Assy, Inner Rear View |
| 87816 | Spring, Inner Rear View Mirror |
| 87821 | Arm, Inner Rear View Mirror, RH OR Upper |
| 87822 | Arm, Inner Rear View Mirror, LH OR Lower |
| 87824 | Pivot, Inner Rear View Mirror Arm |
| 87827 | Absorber, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87904 | Spring Sub-assy, Outer Mirror, RH |
| 87906 | Spring Sub-assy, Outer Mirror, LH |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87911 | Gasket, Outer Rear View Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87941 | Gasket, Outer Rear View Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
