Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03

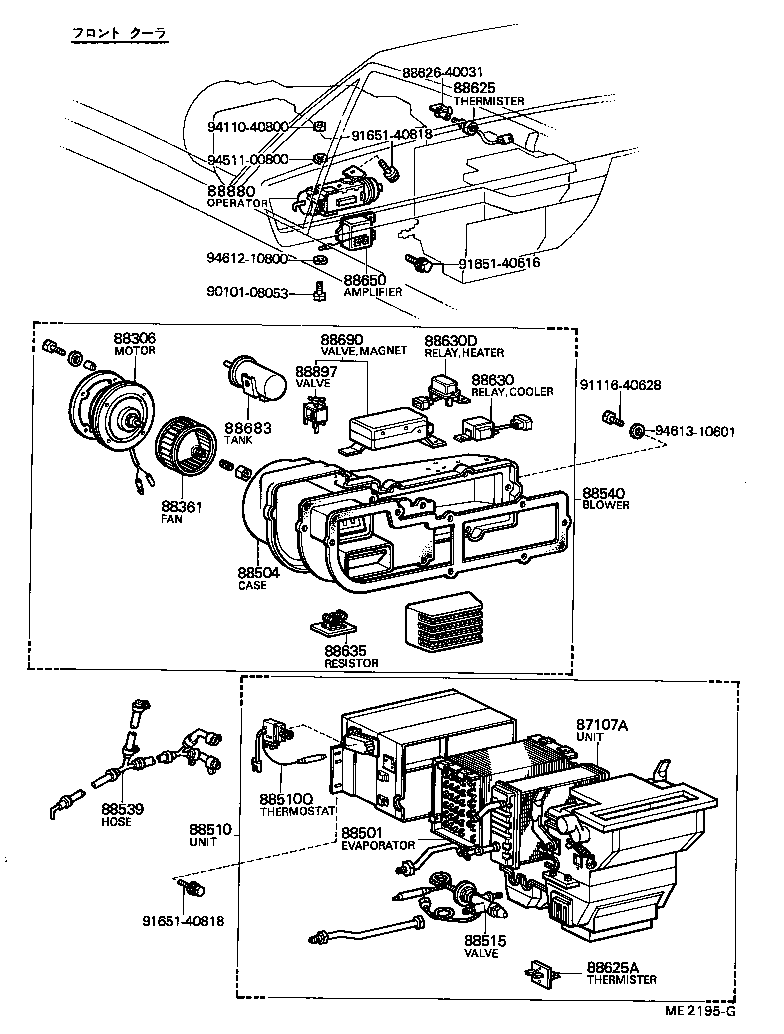

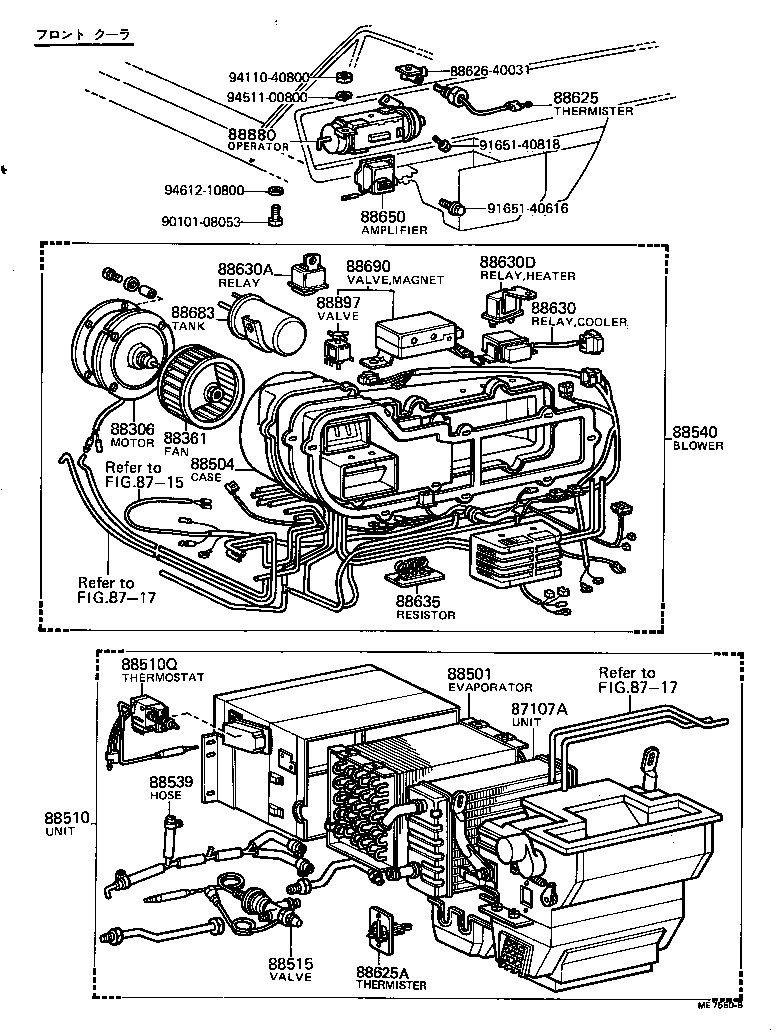

Heating & Air Conditioning - Cooler Unit

48 part groups · 6 illustrations

PNC	Description

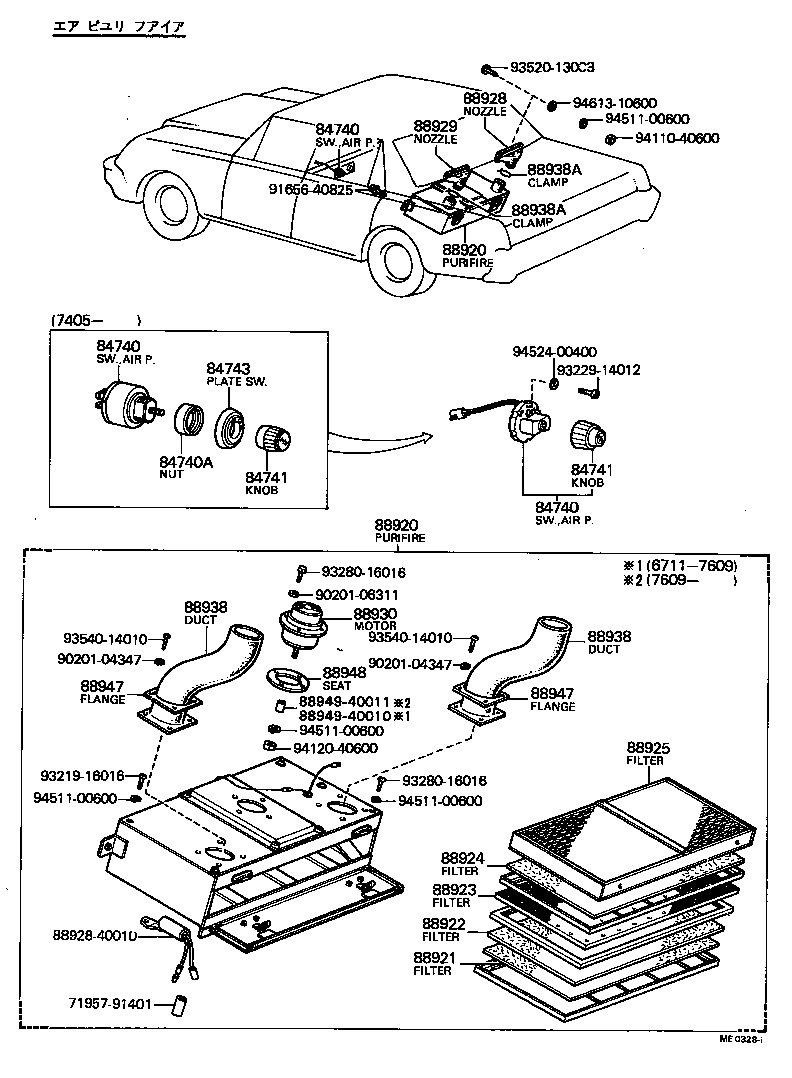

84740	Switch Assy, Air Purifier
84740A	Bolt OR Nut, Air Purifier Switch
84741	Knob, Air Purifier Switch
84743	Plate, Air Purifier Switch
87107A	Unit Sub-assy, Heater Radiator
88306	Motor Sub-assy, Cooler Blower, NO.1
88361	Fan, Cooler Blower, NO.1
88501	Evaporator Sub-assy, Cooler, NO.1
88504	Case Sub-assy, Cooler Blower

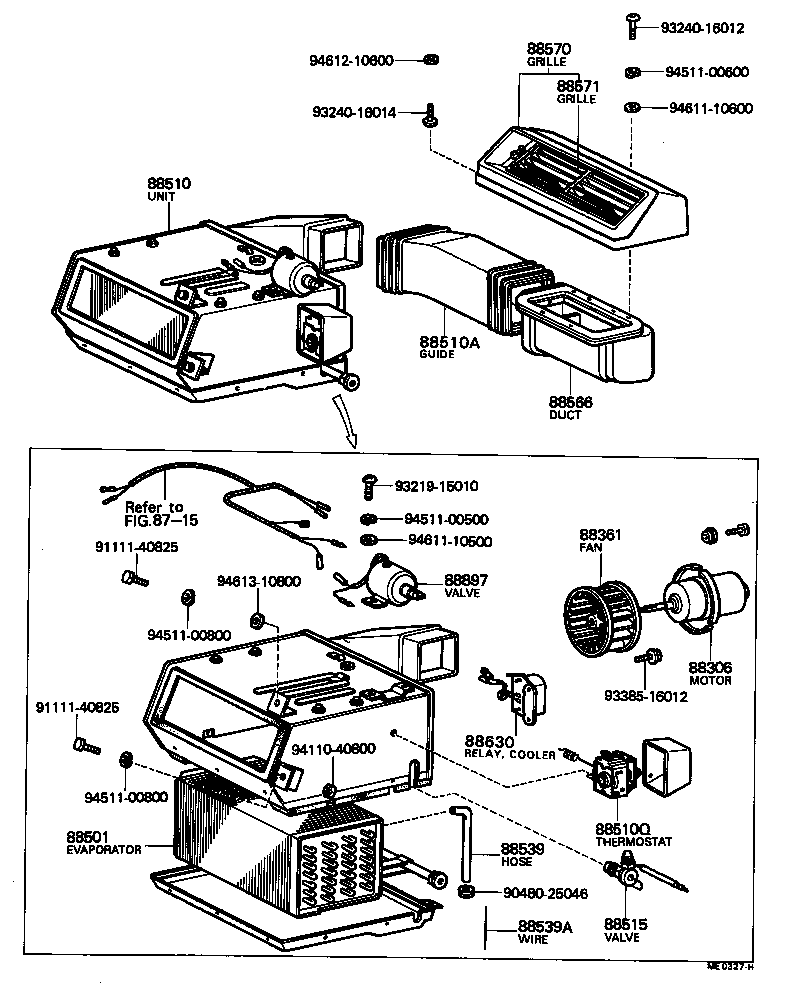

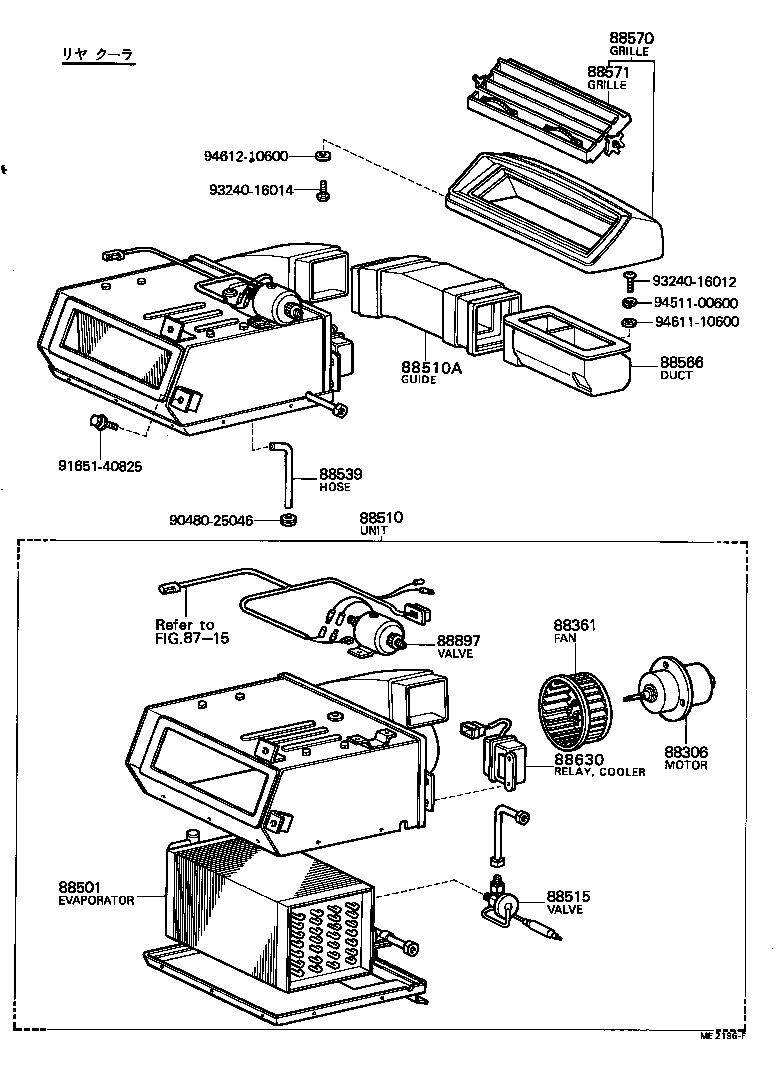

88510	Unit Assy, Cooler
88510A	Guide, Cooler Air
88510Q	Thermostat Assy, Cooler
88515	Valve, Cooler Expansion
88539	Hose, Cooler Unit Drain, NO.1
88539A	Wire, Drain Hose(FOR COOLER)
88540	Blower Assy, Cooler
88566	Duct, Cooler Air, NO.1
88570	Grille Sub-assy, Cooler Air Outlet
88571	Grille, Air Outlet
88606A	Diaphragm Sub-assy, Cooler
88625	Thermistor, Cooler, NO.1
88625A	Thermistor, Cooler NO.2
88625B	Thermistor, Cooler NO.3
88630	Relay Assy, Cooler
88630A	Relay Assy, Cooler
88630B	Relay Assy, Cooler
88630C	Bracket, Cooler Relay
88630D	Relay Assy, Heater Pump
88635	Resistor, Cooler Unit Blower
88650	Amplifier Assy, Cooler Stabilizer
88683	Tank, Air Conditioner Control Vacuum
88690	Valve Assy, Cooler Magnet
88700	Regulator Assy, Vacuum
88880	Operator Assy, Cooler
88897	Valve, Cooler Magnet
88920	Purifier Assy, Air
88921	Filter, Air Purifier, NO.1
88922	Filter, Air Purifier, NO.2
88923	Filter, Air Purifier, NO.3
88924	Filter, Air Purifier, NO.4
88925	Filter, Air Purifier, NO.5
88928	Nozzle Assy, Air Purifier, RH
88929	Nozzle Assy, Air Purifier, LH
88930	Motor Assy, Air Purifier Blower
88938	Duct, Rear Air Purifier
88938A	Clamp (FOR COOLER REAR OUTLET DUCT)
88947	Flange, Rear Cooler Air Duct
88948	Seat, Air Purifier Motor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
