Toyota Century

1967-11 → 1982-09 · chassis VG2#,3# · catalogue 341110 · Japan

Discontinued model Data version 1983-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

13 part groups · 3 illustrations

Illustrations

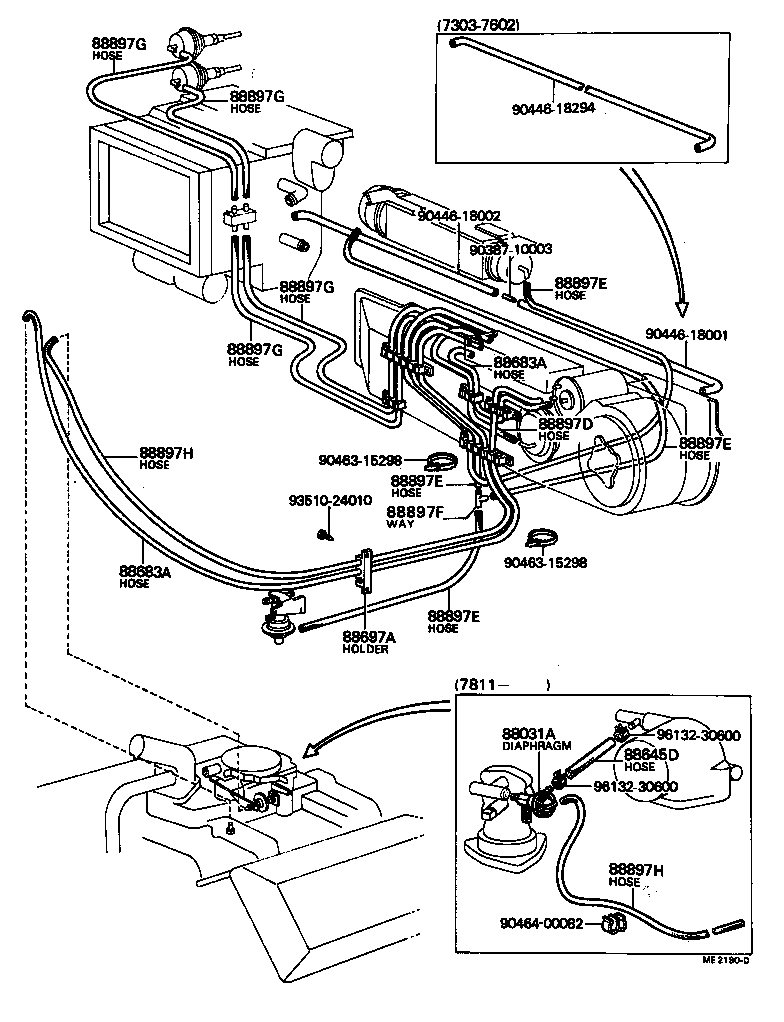

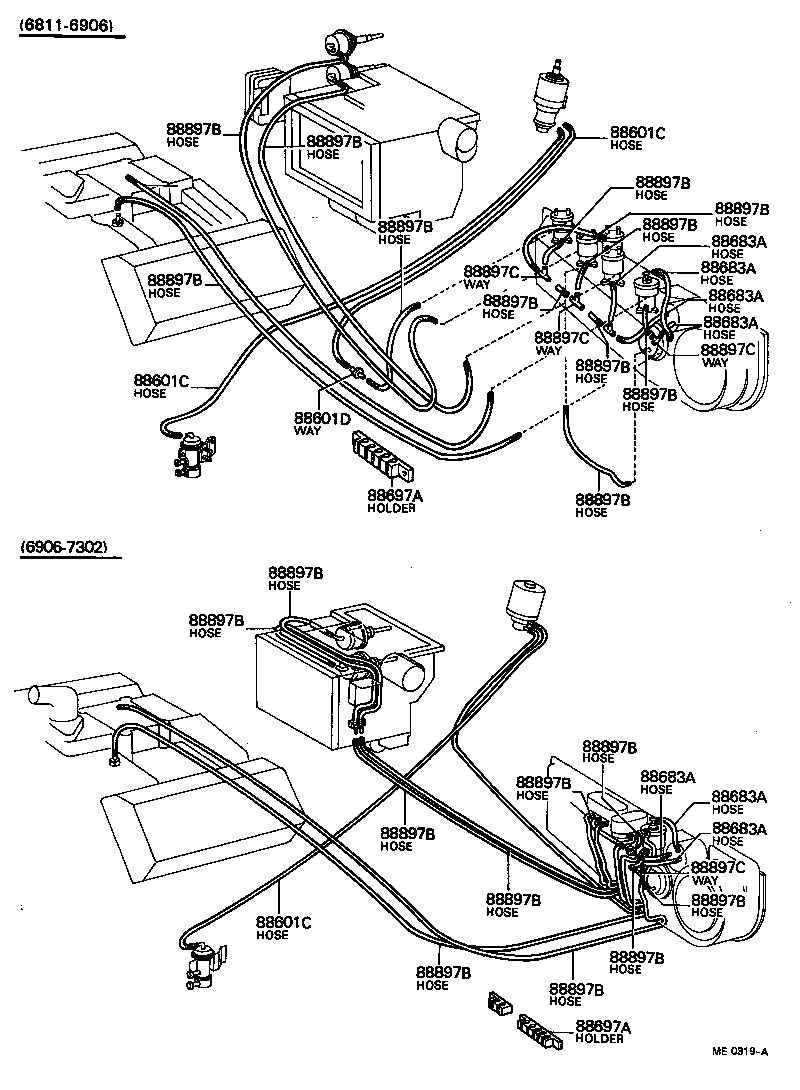

Figure ME0315A ME0315A 1967-11 → 1968-11 Figure ME0319A ME0319A 1968-11 → 1973-02 Figure ME2190D ME2190D 1973-03 → —

Part groups

PNCDescription
88031A Diaphragm Sub-assy, Idle-up Actuator
88601C Hose(CONTROL SWITCH TO WATER VALVE OR BLOWER DIAPHRAGM)
88601D Way, 2(FOR COOLER CONTROL SWITCH)
88645D Hose (FOR IDLE UP DEVICE)
88683A Hose (ENGINE TO MAGNET VALVE)
88697A Holder, Vacuum Hose
88897B Hose(MAGNET VALVE TO CONTROL SWITCH)
88897C Way, 3(MAGNET VALVE TO CONTROL SWITCH)
88897D Hose(MAGNET VALVE TO BLOWER DIAPHRAGM)
88897E Hose(MAGNET VALVE TO WATER VALVE OR OPERATOR)
88897F Way, 3 (MAGNET VALVE TO WATER VALVE OR OPERATOR)
88897G Hose(MAGNET VALVE TO COOLER UNIT)
88897H Hose(MAGNET VALVE TO THROTTLE OPENER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
