Toyota Century

1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

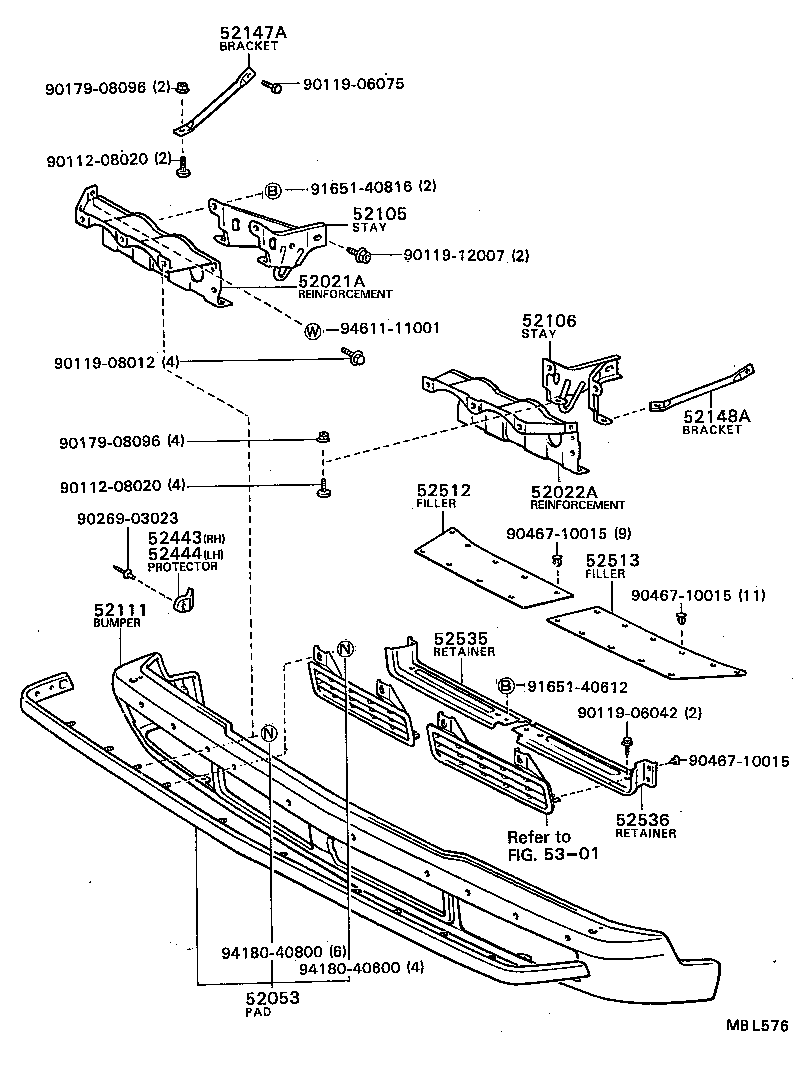

Figure MBE234E MBE234E 1982-10 → 1986-08 Figure MBL576 MBL576 1986-08 → —

Part groups

PNCDescription
52021A Reinforcement Sub-assy, Front Bumper, RH
52022A Reinforcement Sub-assy, Front Bumper, LH
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52147A Bracket, Front Bumper Stay, RH
52148A Bracket, Front Bumper Stay, LH
52443 Protector, Front Bumper, RH
52444 Protector, Front Bumper, LH
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
