Toyota Century
1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan
Discontinued model
Data version 1988-03

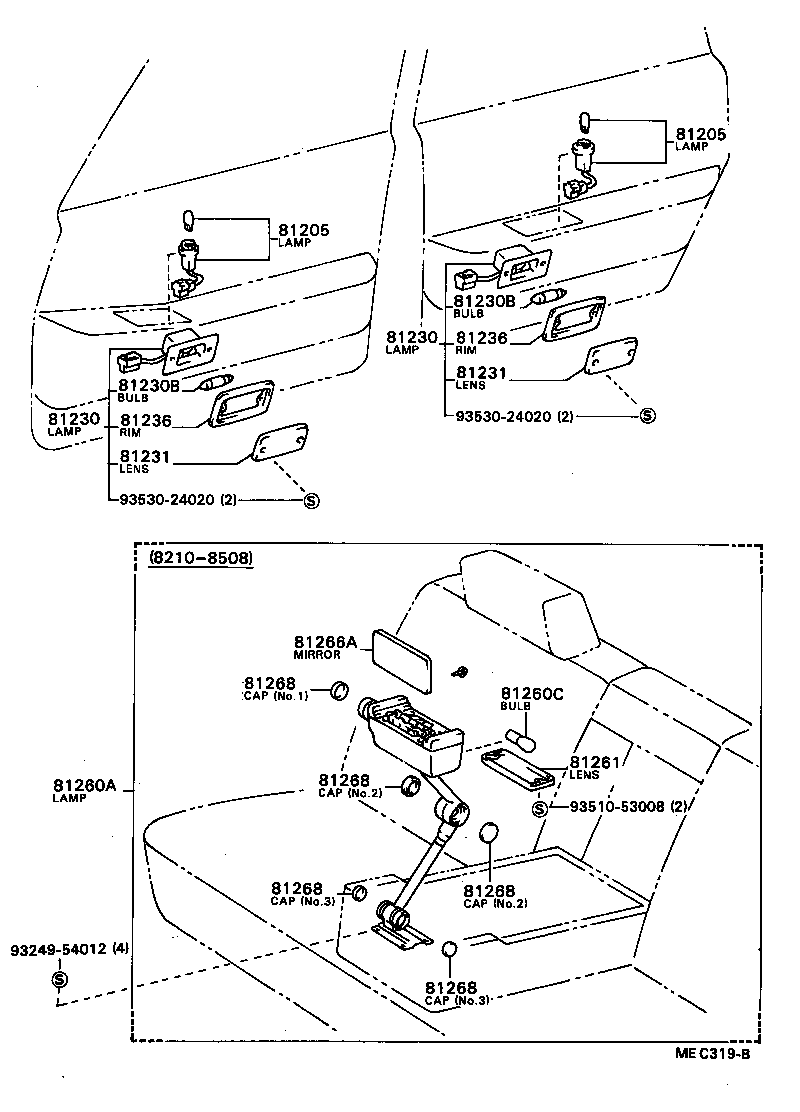

Interior Lamp
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81236 | Rim, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81266A | Mirror, Map Lamp |
| 81268 | Cap Map Lamp |
| 81280 | Lamp Assy, Engine Room |
| 81280B | Bulb, Engine Room Lamp |
| 81281 | Lens, Engine Room Lamp |
| 81282 | Packing, Engine Room Lamp Lens |
| 81310 | Lamp Assy, Rear Room, RH |
| 81310B | Bulb, Rear Room Lamp |
| 81320 | Lamp Assy, Rear Room, LH |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81332 | Packing, Luggage Compartment Lamp Lens |
| 81360 | Lamp Assy, Step OR Spot |
| 81360B | Bulb, Step OR Spot Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
