Toyota Century

1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

25 part groups · 4 illustrations

Illustrations

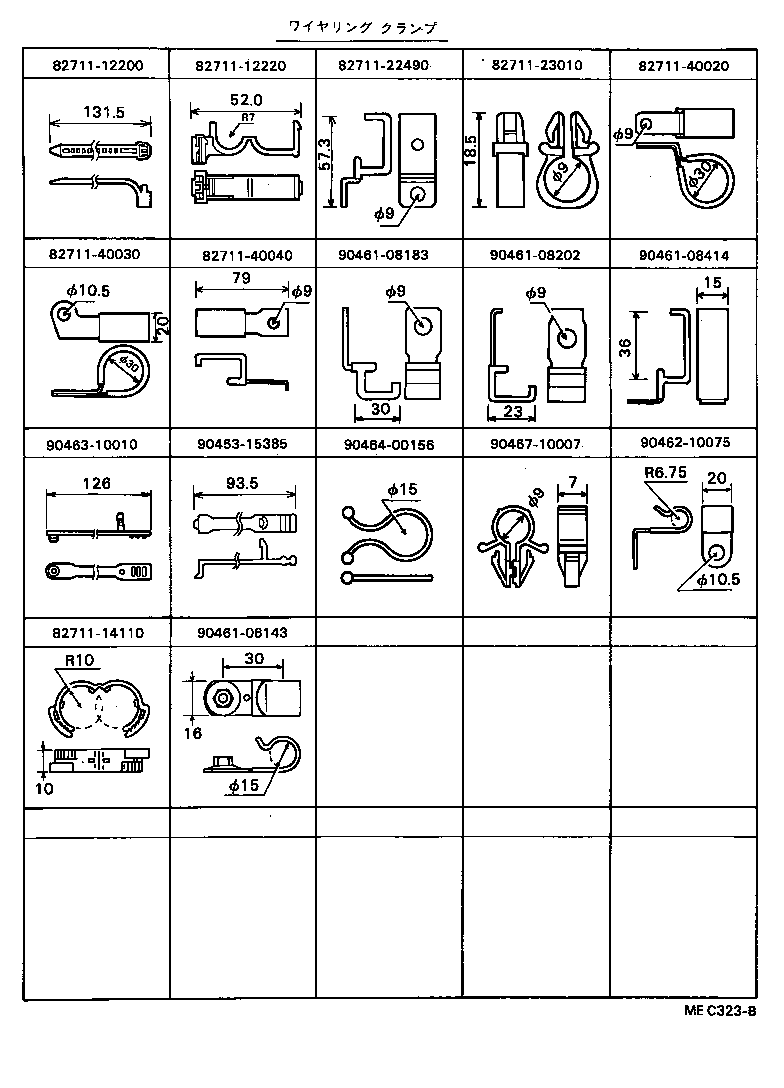

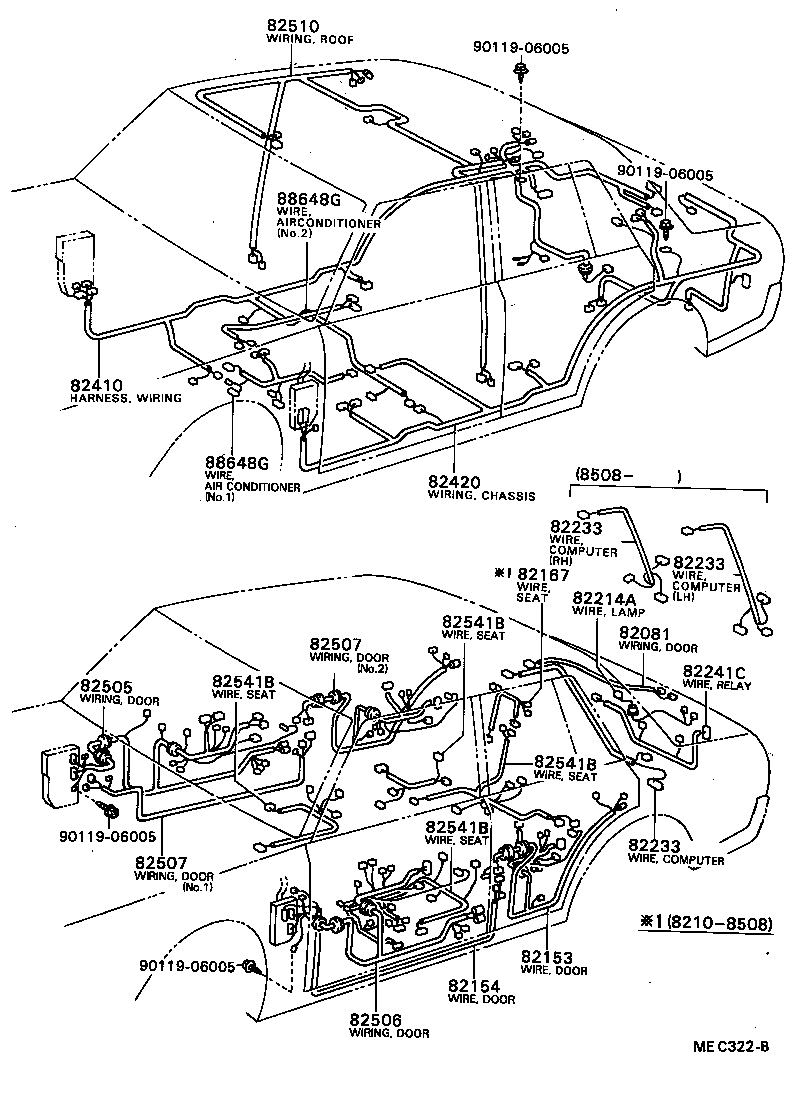

Figure MEC321B MEC321B 1982-10 → — Figure MEC322B MEC322B 1982-10 → — Figure MEC323B MEC323B 1982-10 → — Figure MEC324B MEC324B 1982-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82081 Wiring Assy, Door Lock
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82131 Wire, Cowl
82141 Wire, Instrument Panel
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82167 Wire, Seat, NO.1
82210D Fusible Link
82210E Fusible Link
82214A Wire, Lamp
82233 Wire, Computer
82241C Wire, Relay
82410 Harness Assy, Wiring TO Rear Lamp
82420 Wiring Assy, Chassis
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82510 Wiring Assy, Roof
82541B Wire, Seat Adjuster
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
