Toyota Century
1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan
Discontinued model
Data version 1988-03
Switch & Relay & Computer
85 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 28300 | Relay Assy, Starter |
| 81402 | Socket Sub-assy, Inspection Lamp, NO.1 |
| 81980 | Flasher Assy, Turn Signal |

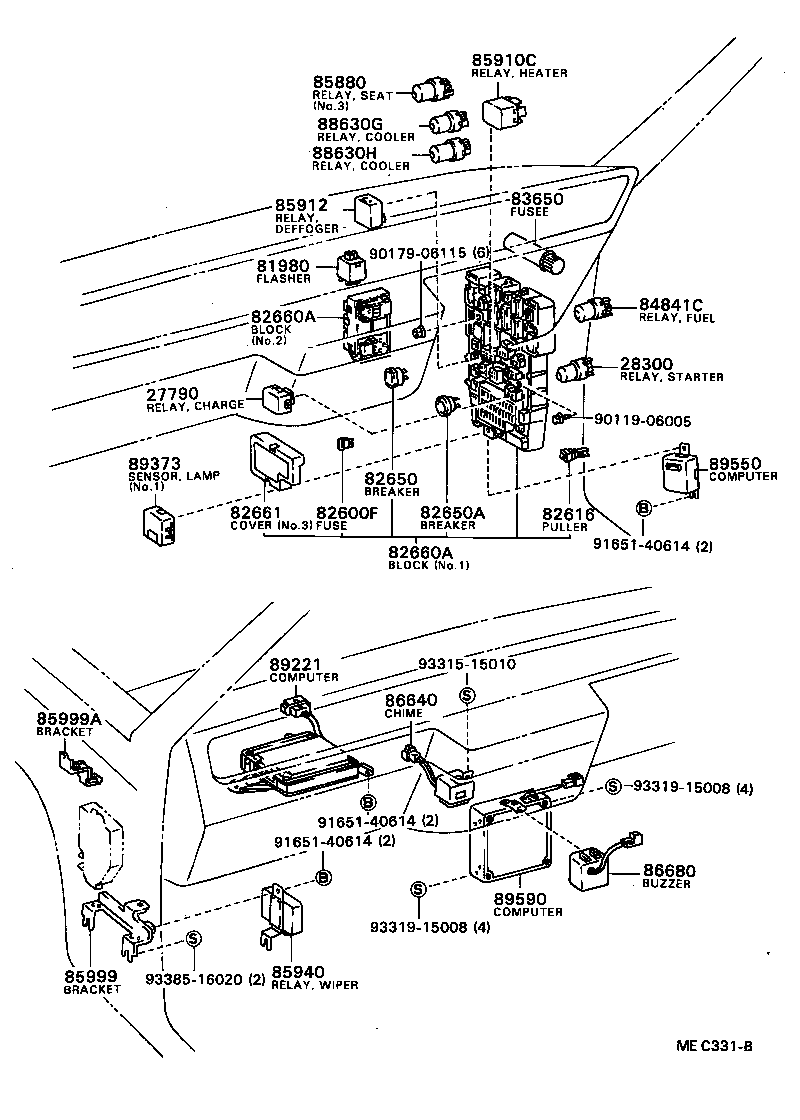

| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82650A | Breaker Assy, Wiring Circuit, NO.2 |

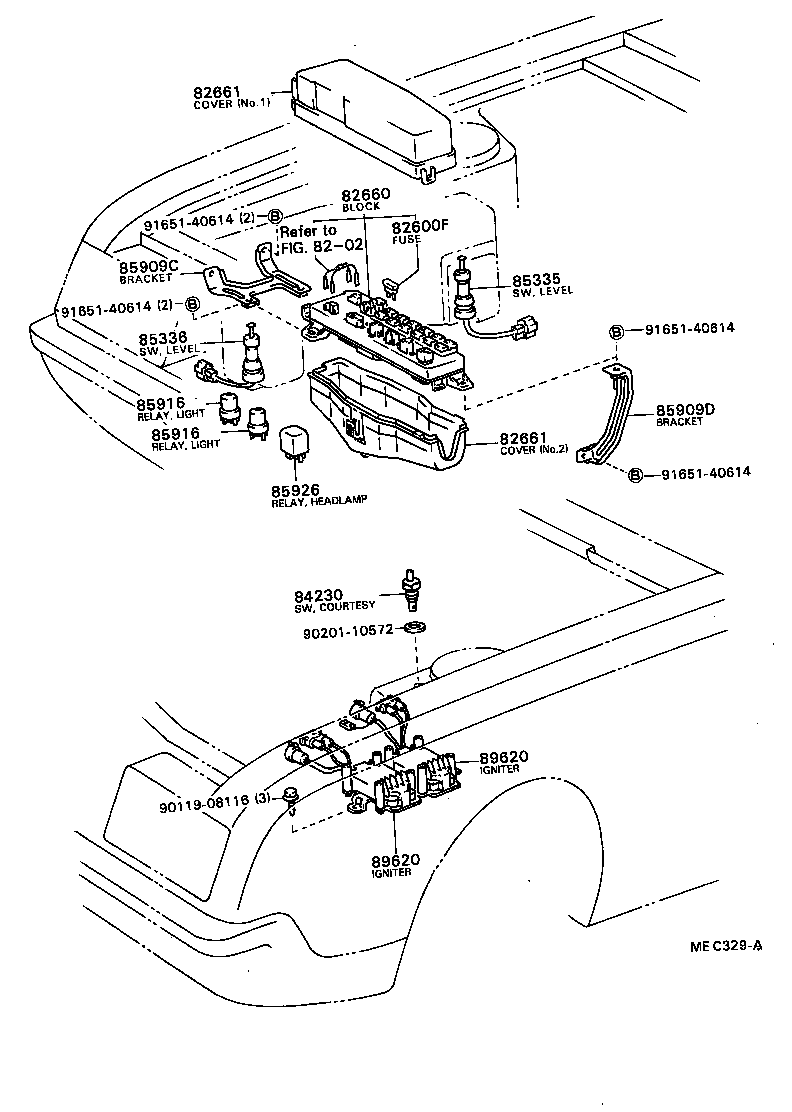

| 82660 | Block Assy, Relay, Engine Room |
| 82660A | Block Assy, Relay, Cowl Side |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150 | Switch Assy, Fog Lamp |
| 84150C | Bulb, Fog Lamp Switch |
| 84230 | Switch Assy, Courtesy Lamp (FOR ENGINE ROOM) |
| 84242 | Switch, Glove Box Lamp |
| 84249 | Switch, Map Lamp |
| 84249B | Bulb (FOR MAP LAMP SWITCH) |

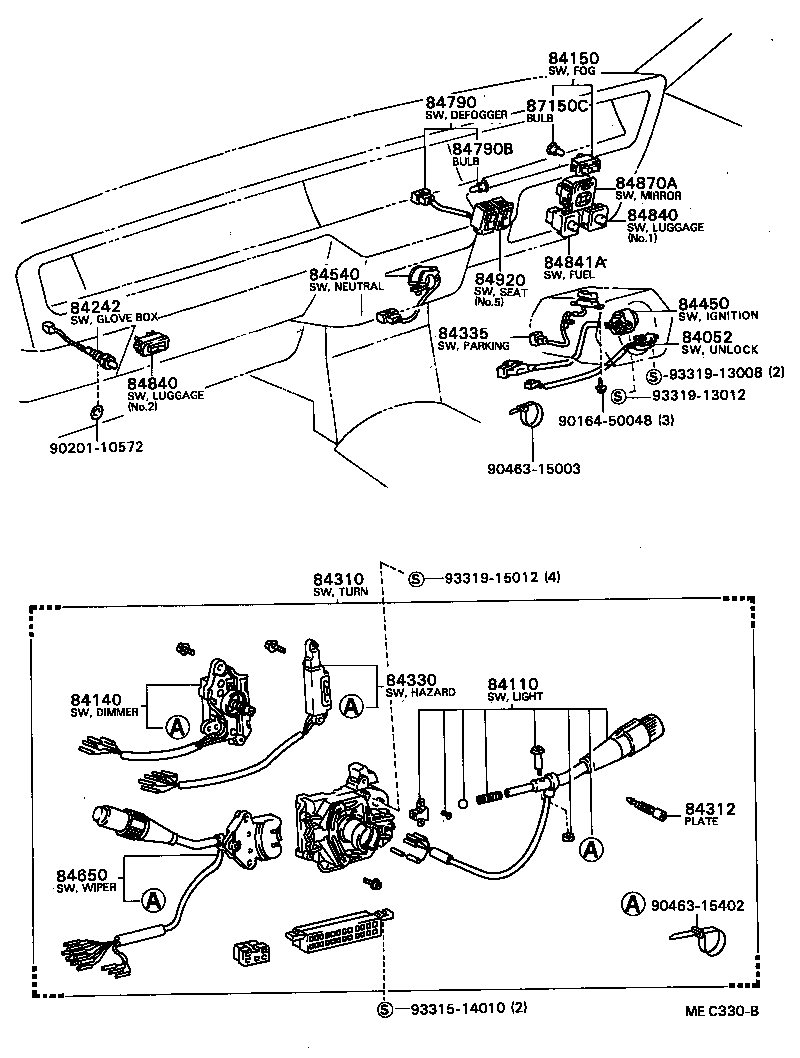

| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84335 | Switch Assy, Parking Lamp |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84533 | Switch, Luggage Closer Limit |
| 84535A | Switch, Door Lock |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84750A | Switch Assy, Seat |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810B | Bulb (FOR POWER WINDOW REGULATOR SWITCH) |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84841A | Switch, Fuel Lid Opener |
| 84841C | Relay, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

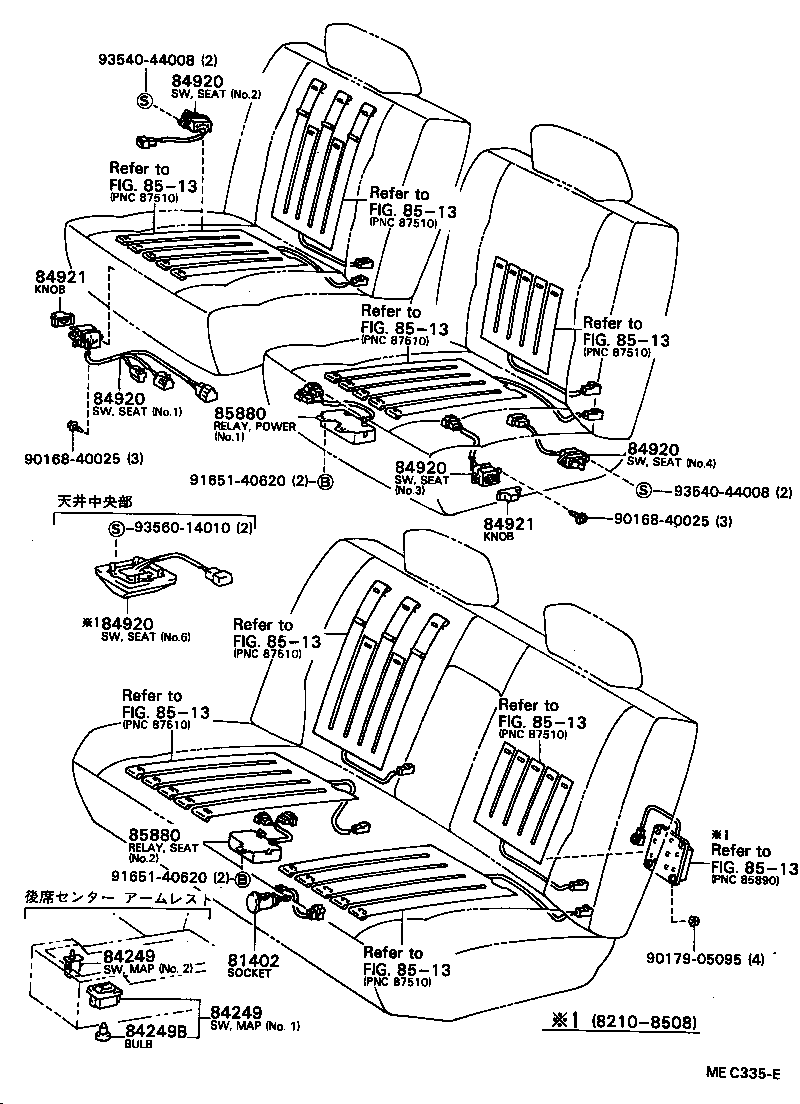

| 84920 | Switch Assy, Power Seat |
| 84921 | Knob, Power Seat Switch |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84931B | Switch, Door Control |
| 85335 | Switch Assy, Washer Level Warning |
| 85336 | Switch Assy, Reserve Tank Level Warning |
| 85410 | Solenoid Assy, Luggage Door Lock |
| 85490A | Solenoid Assy, Fuel Lid Opener |
| 85500 | Lighter Assy, Cigarette |

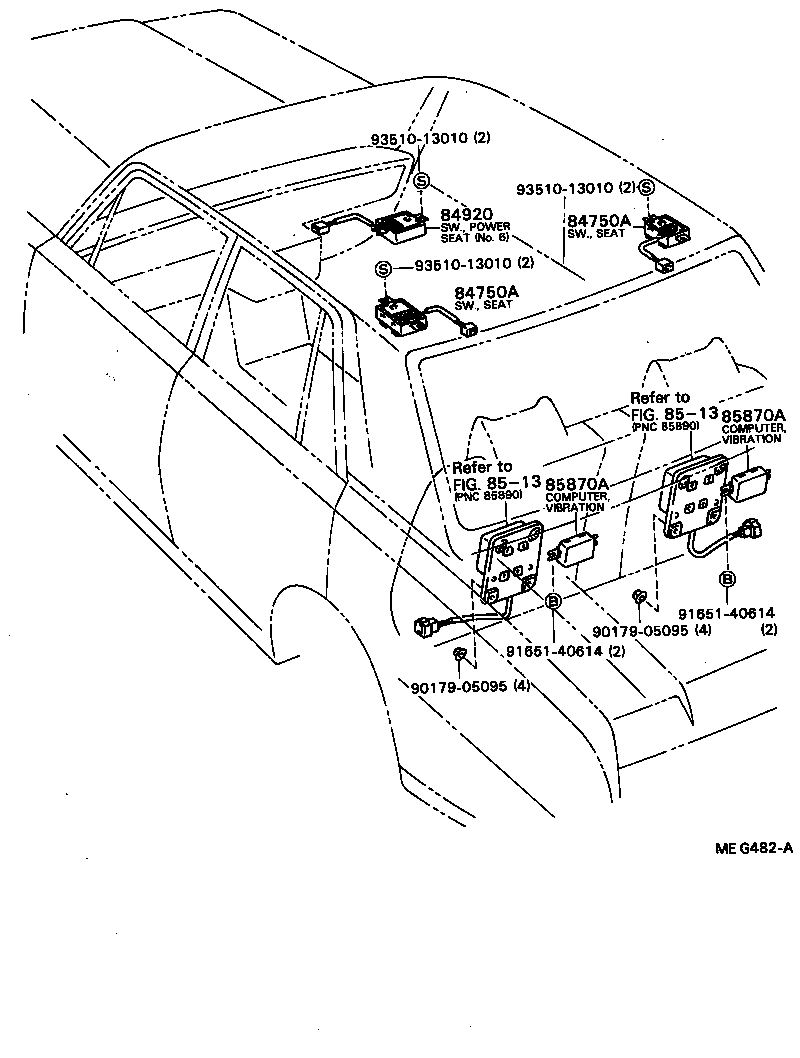

| 85870A | Computer Assy, Vibration Seat |
| 85880 | Relay Assy, Power Seat |
| 85909C | Bracket Sub-assy, Relay, NO.1 |
| 85909D | Bracket Sub-assy, Relay, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916 | Relay, Light Control |
| 85926 | Relay, Headlamp Dimmer |
| 85940 | Relay Assy, Windshield Wiper |
| 85982 | Relay, Luggage Closer |
| 85999 | Bracket, Combination Relay |
| 85999A | Bracket, Relay, NO.2 |
| 86640 | Chime Assy |
| 86680 | Buzzer Assy, Un-lock Warning OR Seat Belt Warning |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89221 | Computer, Multiplex Network Body |

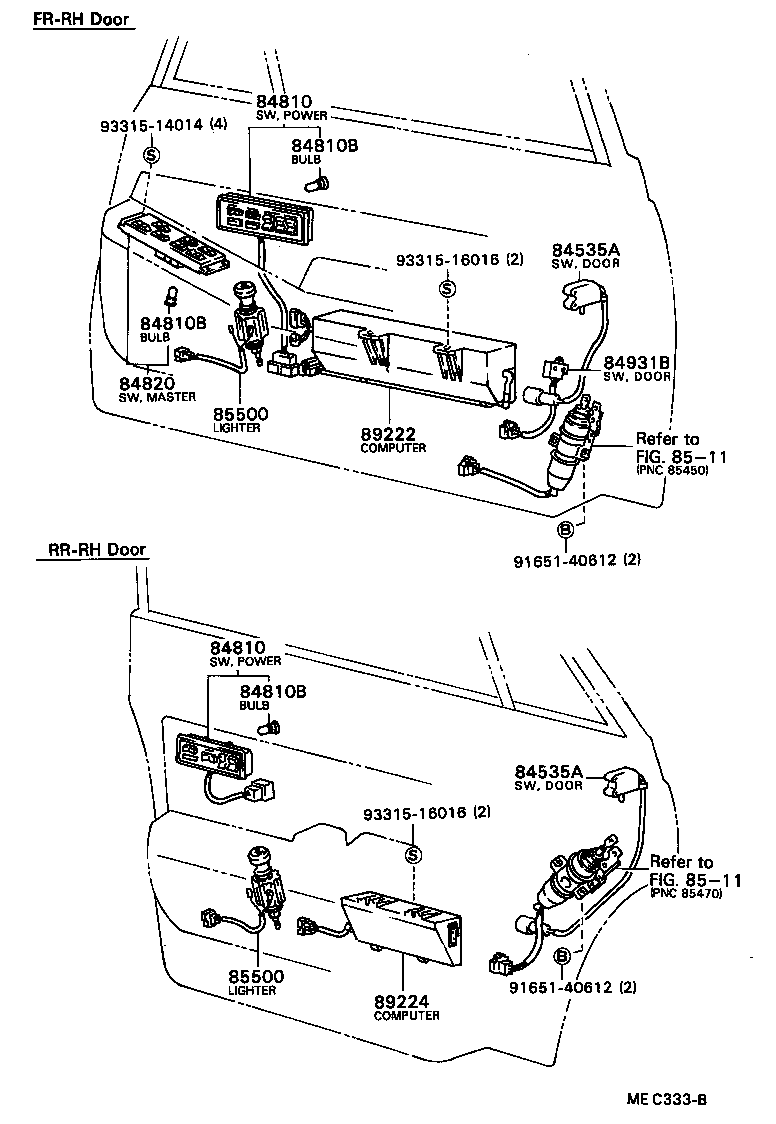

| 89222 | Computer, Multiplex Network Door, Front RH |

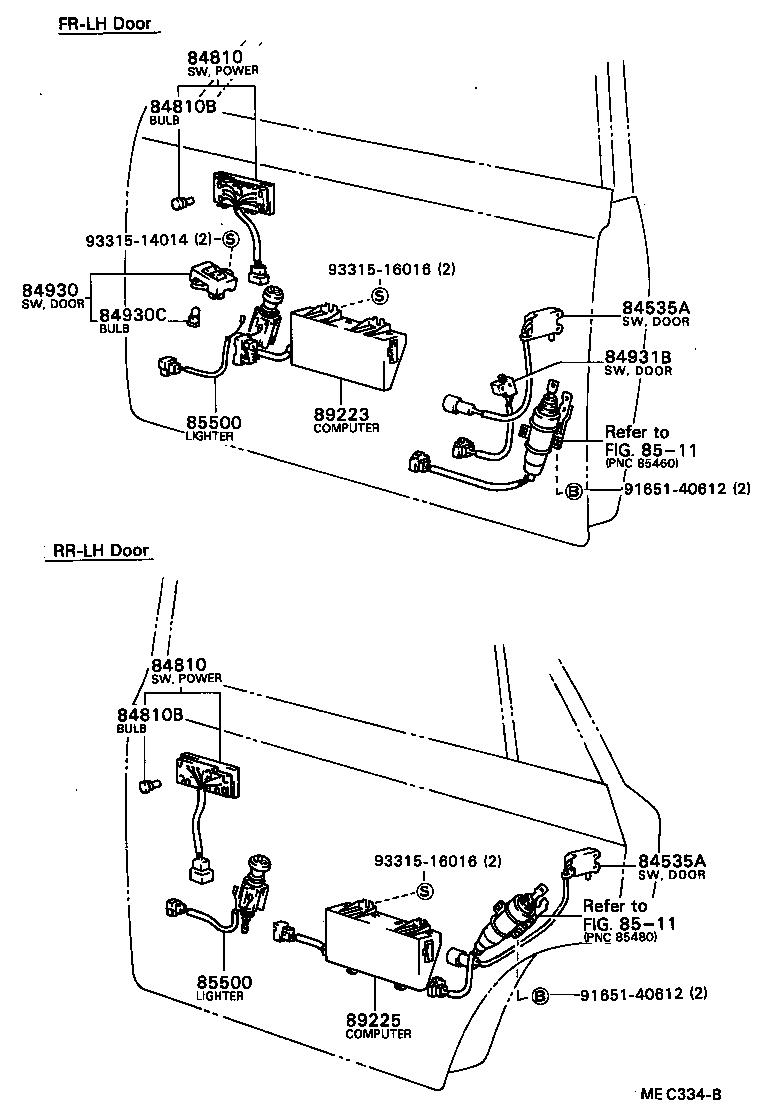

| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89225 | Computer, Multiplex Network Door, Rear LH |

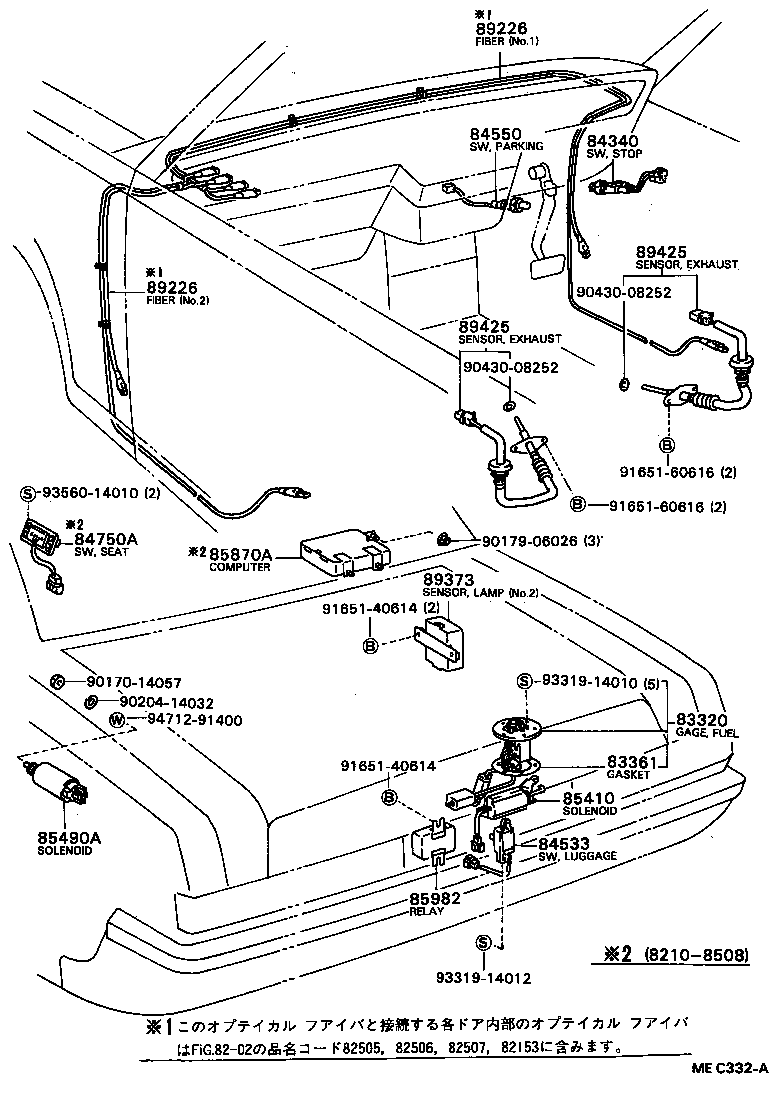

| 89226 | Fiber, Optical |
| 89373 | Sensor, Lamp Failure Indicator |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89550 | Computer Assy, Emission Control |
| 89590 | Computer Assy, Condition Indicator |
| 89620 | Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
