Toyota Century
1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan
Discontinued model
Data version 1988-03

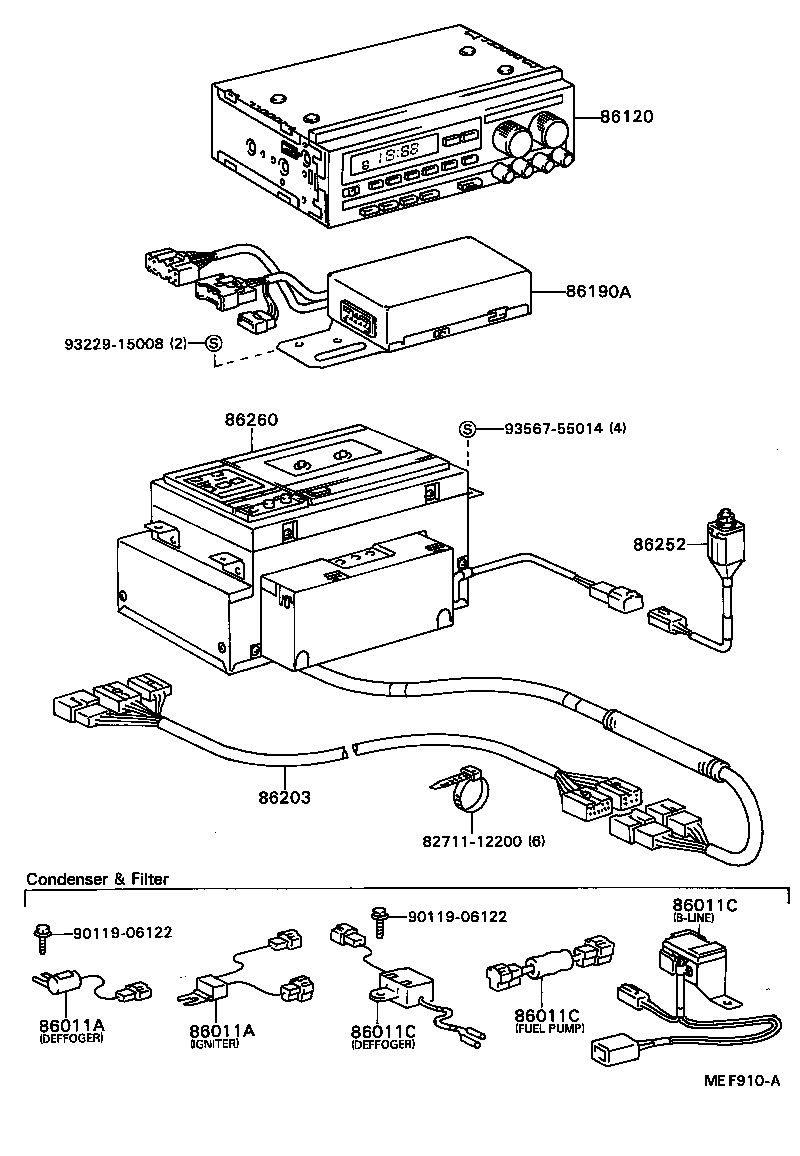

Radio Receiver & Amplifier & Condenser
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86170 | Switch And Volume Assy, Radio |
| 86171 | Base, Radio Remote Control |
| 86190A | Adapter Assy, Remote Control |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86252 | Code, Microphone, NO.1 |
| 86260 | Tape Player Assy |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
