Toyota Century

1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan

Discontinued model Data version 1988-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

25 part groups · 2 illustrations

Illustrations

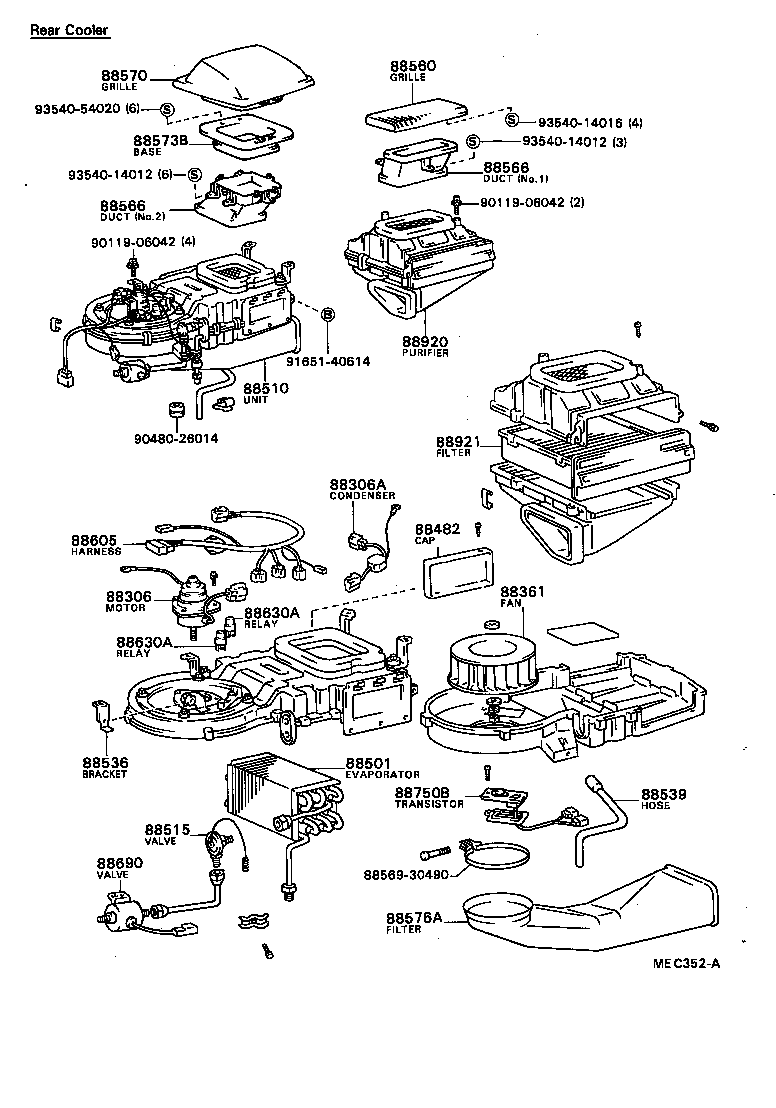

Figure MEC351A MEC351A 1982-10 → — Figure MEC352A MEC352A 1982-10 → —

Part groups

PNCDescription
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
88306 Motor Sub-assy, Cooler Blower, NO.1
88306A Condenser (FOR BLOWER MOTOR)
88361 Fan, Cooler Blower, NO.1
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88539 Hose, Cooler Unit Drain, NO.1
88560 Grille Assy, Cooler Air Inlet
88566 Duct, Cooler Air, NO.1
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88576A Filter, Expansion, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88606A Diaphragm Sub-assy, Cooler
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88690 Valve Assy, Cooler Magnet
88750B Transistor Assy, Blower Resistor
88920 Purifier Assy, Air
88921 Filter, Air Purifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
