Toyota Century
1982-10 → 1987-09 · chassis VG40 · catalogue 341120 · Japan
Discontinued model
Data version 1988-03

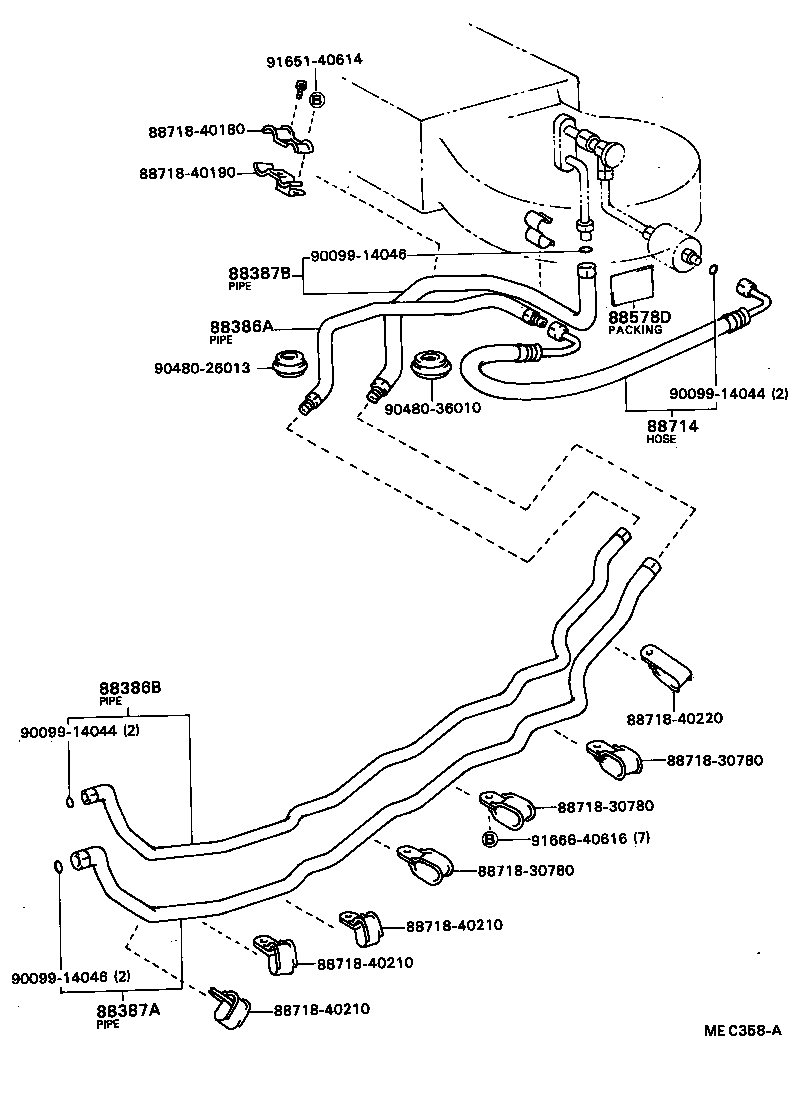

Heating & Air Conditioning - Cooler Piping
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88386A | Pipe, Rear Cooler Refrigerant Liquid, A (FROM CONDENSER) |
| 88386B | Pipe, Rear Cooler Refrigerant Liquid, B |
| 88387A | Pipe, RR Cooler Refrigerant Suction, A (FROM COOLER UNIT) |
| 88387B | Pipe, Rear Cooler Refrigerant Suction, B |
| 88460 | Condenser Assy, Cooler |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88486 | Muffler, Discharge |
| 88503 | Regulator Assy, Pressure |
| 88578D | Packing, Cooler Pipe, NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711A | Hose, Cooler Refrigerant Discharge, NO.2 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88715A | Pipe, Cooler Refrigerant Discharge, A |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88725 | Sensor, Refrigerant |
| 88896D | Pipe, Equalizer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
