Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

25 part groups · 2 illustrations

Illustrations

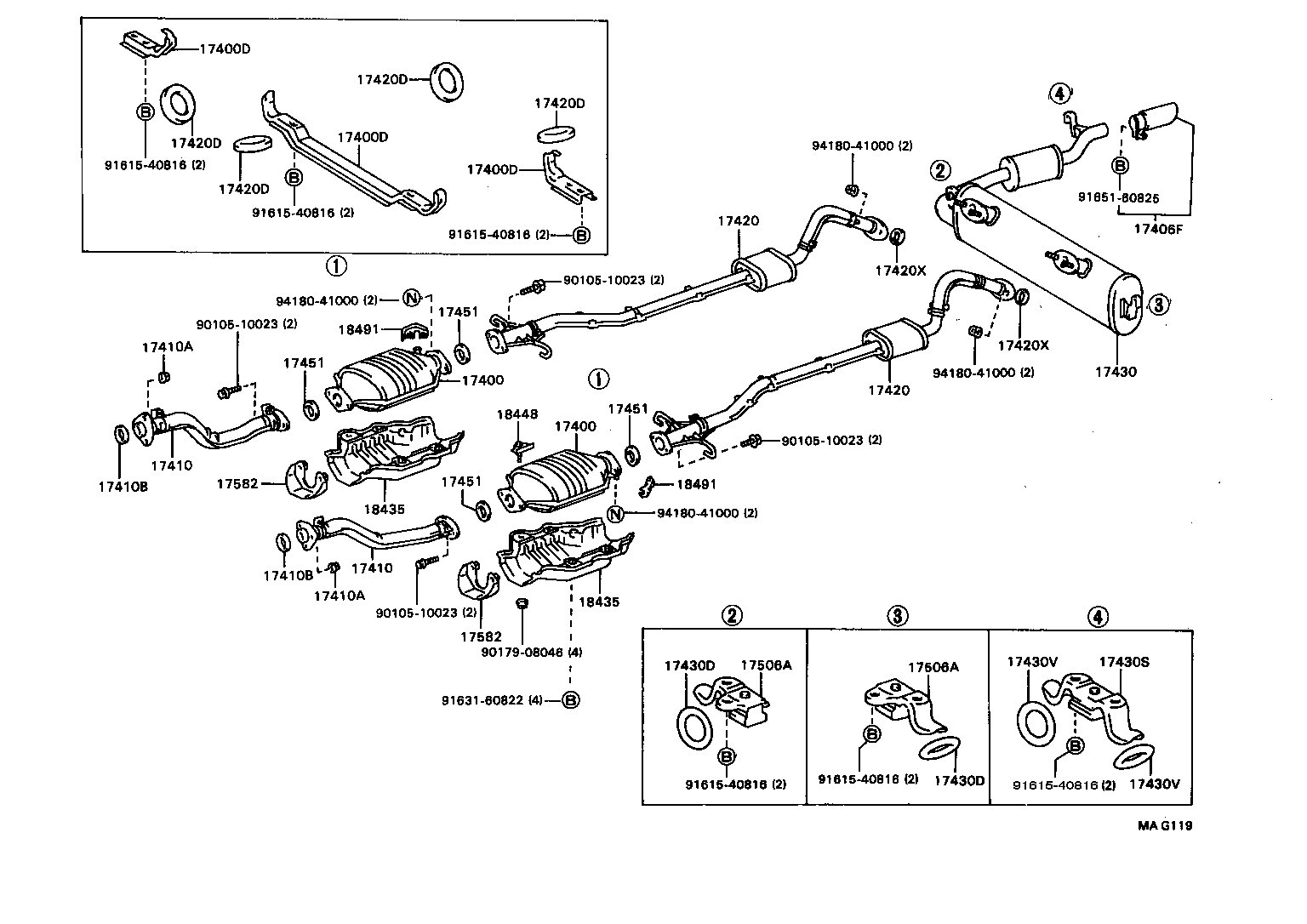

Figure MBA497B MBA497B 1987-09 → 1992-12 Figure MAG119 MAG119 1992-12 → —

Part groups

PNCDescription
04181 Pellet Kit
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17400H Plug, W/Head Straight Screw(FOR CATALYZER INLET)
17406F Diffuser Sub-assy, Exhaust Gas
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17582 Bracket, Catalytic Converter Support, Upper
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
18491 Flange, Thermosensor Inlet
18492 Guide, Catalytic Converter Sensor
18493 Plate, Catalyzer Inlet Plug Lock
18494 Gasket, Catalyzer Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
