Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Control Shaft & Crossshaft

28 part groups · 2 illustrations

Illustrations

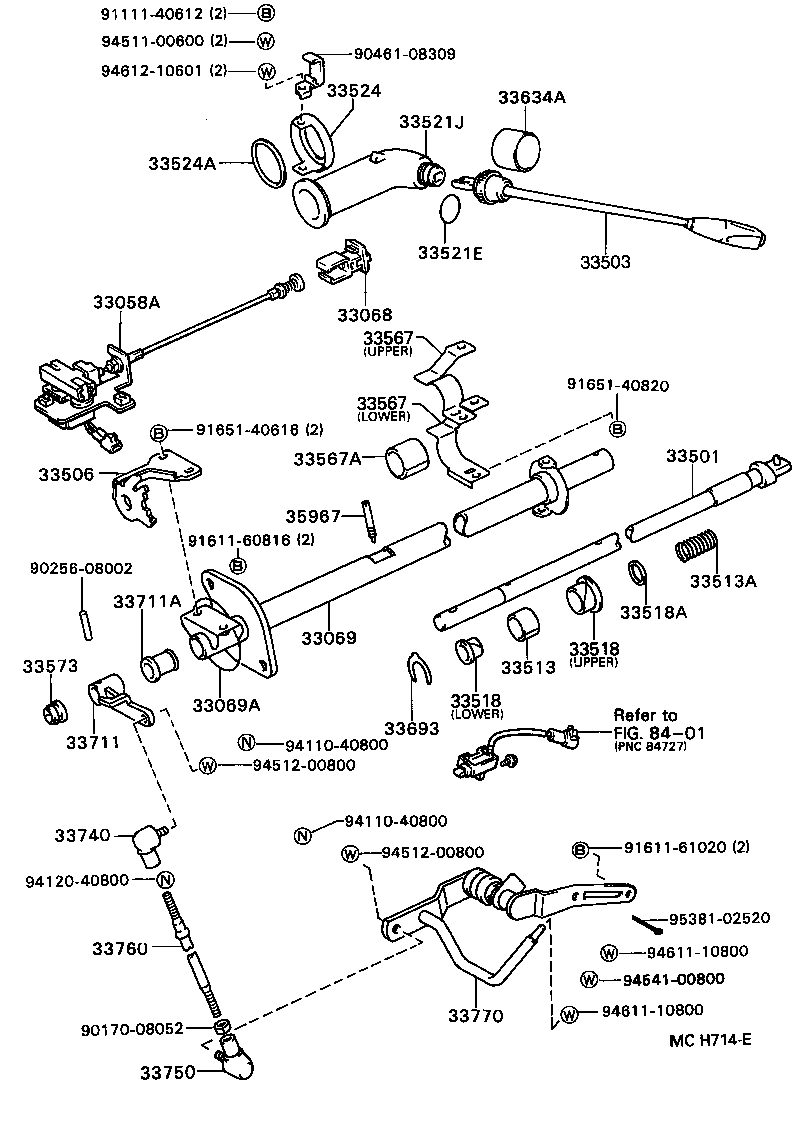

Figure MCF296E MCF296E 1987-09 → 1989-05 Figure MCH714E MCH714E 1989-05 → —

Part groups

PNCDescription
33058A Bracket Sub-assy, Shift Lock Solenoid
33068 Button Sub-assy, Shift Lock Release
33069 Tube Sub-assy, Control Shaft(FOR COLUMN SHIFT)
33069A Ring, O(FOR CONTROL SHAFT TUBE)
33501 Shaft Sub-assy, Control (FOR COLUMN SHIFT)
33503 Lever Sub-assy, Shift(FOR COLUMN SHIFT)
33506 Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT)
33513 Shaft, Control Shaft Bracket, Upper
33513A Spring, Compression (FOR BRACKET UPPER SHAFT)
33518 Bush, Upper Control Shaft Piece
33518A Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH)
33521E Ring, O (FOR SHIFT LEVER HOUSING)
33521J Housing, Shift Lever (FOR COLUMN SHIFT)
33524 Bracket, Control Lever Housing Support (FOR COLUMN SHIFT)
33524A Washer, Plate (FOR CONTROL LEVER HOUSING)
33567 Clamp, Control Shaft Tube
33567A Grommet (FOR CONTROL SHAFT TUBE)
33573 Cover, Control Shaft Dust, Lower
33634A Protector, Wire
33693 Shim, Shift Lever Adjusting (FOR COLUMN SHIFT)
33711 Lever, Control Shaft (FOR COLUMN SHIFT)
33711A Bush (FOR CONTROL SHAFT LEVER)
33740 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
33750 End, Connecting Rod, NO.2 (FOR COLUMN SHIFT)
33760 Rod Assy, Connecting, NO.1
33770 Shaft Assy, Cross (FOR COLUMN SHIFT)
35519B Label, Automatic Trans Information (FOR COLUM SHIFT)
35967 Pin, Indicator Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
