Toyota Century
1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan
Discontinued model
Data version 1997-10

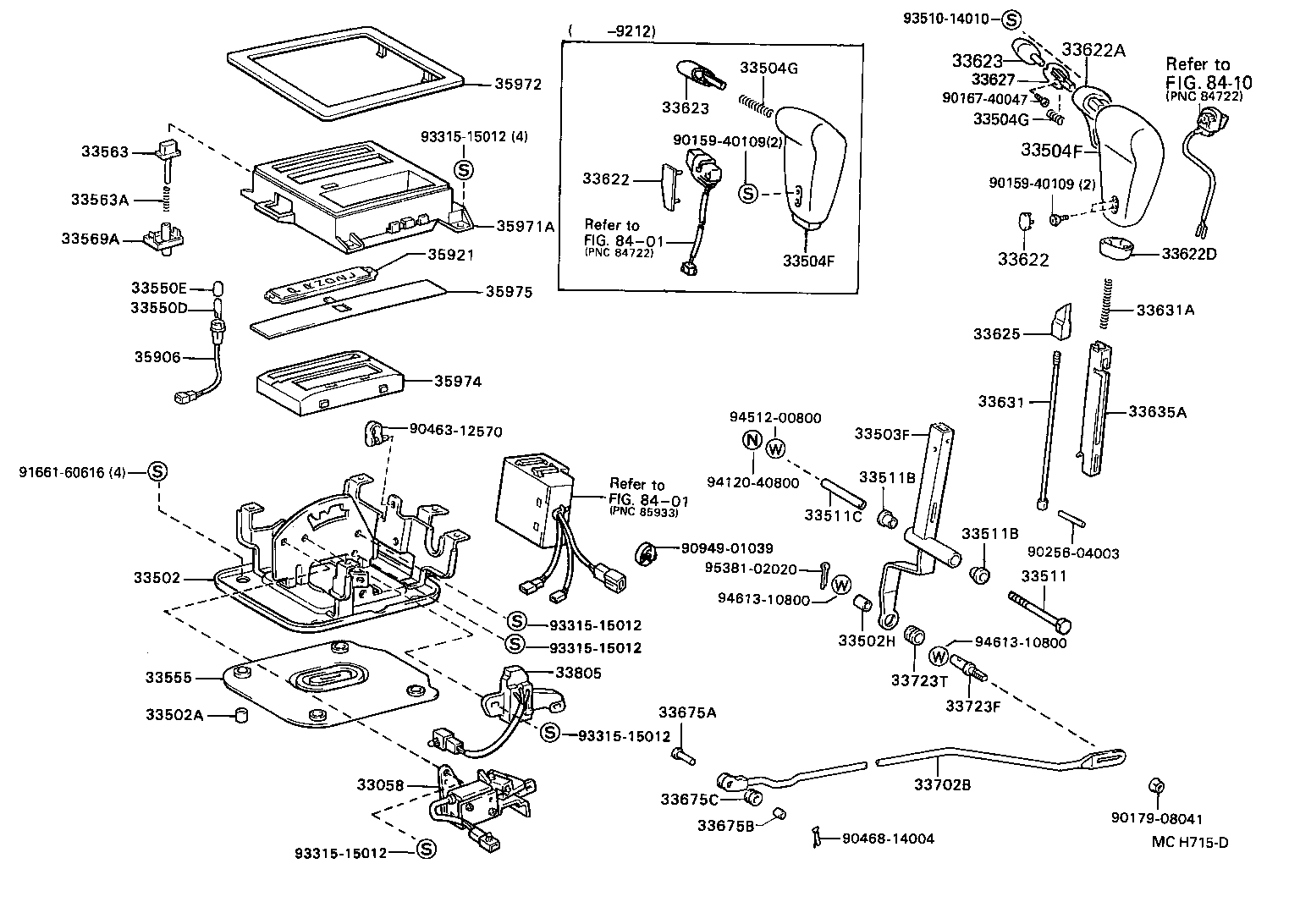

Shift Lever & Retainer
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33058 | Bracket Sub-assy, Shift Lock Solenoid |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33502H | Bush, NO.1 (FOR SHIFT LEVER PLATE) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33504G | Spring, Compression (FOR SHIFT LEVER KNOB) |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511B | Bush (FOR CONTROL SHAFT) |
| 33511C | Collar (FOR CONTROL SHAFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33569A | Guide, Shift Lock Release Button |
| 33622 | Cover, Shift Lever Knob, NO.1 |
| 33622A | Cover, Shift Lever Knob, NO.2 |
| 33622D | Cover, Shift Lever Knob, NO.3 |
| 33623 | Button, Shift Lever Knob |
| 33625 | Sleeve, Shift Lever Knob |
| 33627 | Insert, Shift Lever Button |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33675B | Bush (FOR TRANSMISSION CONTROL ROD) |
| 33675C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723T | Grommet (FOR CONNECTING ROD SWIVEL) |
| 33805 | Plate Sub-assy, Shift Lock (FOR FLOOR SHIFT) |
| 35519C | Label, Automatic Transmission Information |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35972 | Cover, Position Indicator Housing |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
