Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

34 part groups · 3 illustrations

Illustrations

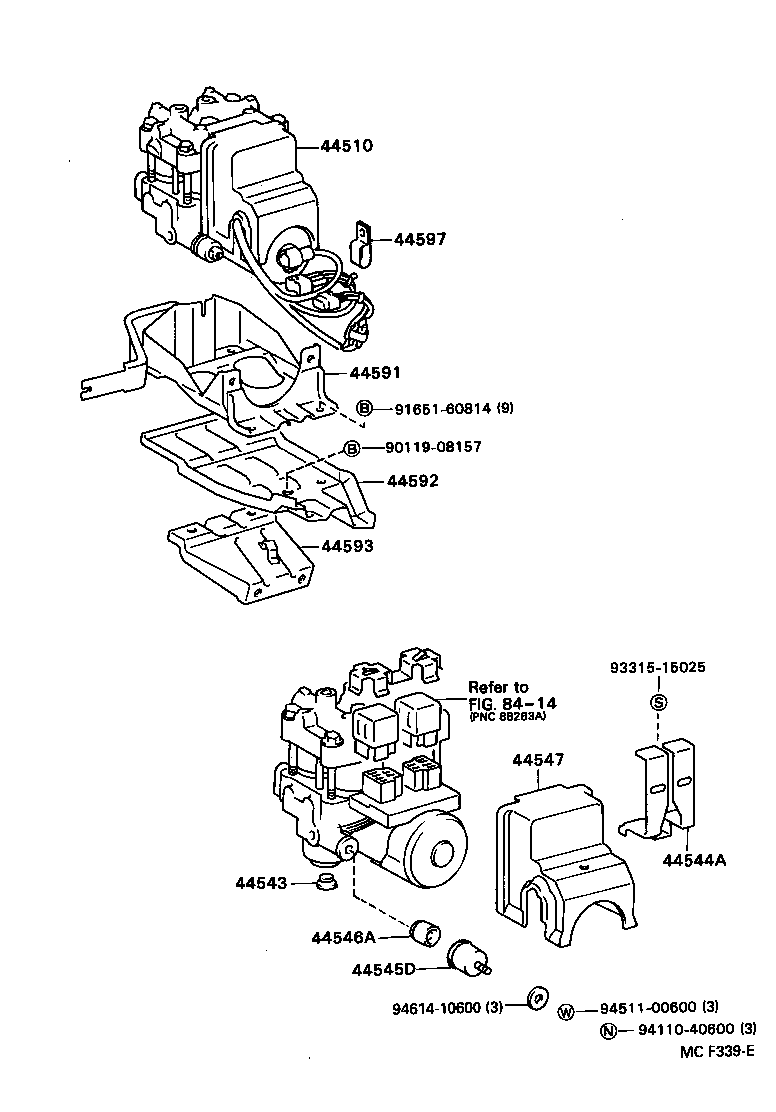

Figure MCF337C MCF337C 1987-09 → — Figure MCF338C MCF338C 1987-09 → — Figure MCF339E MCF339E 1987-09 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44543 Cap, Rubber
44544A Clamp, Brake Actuator Wire
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44547 Case, Relay(FOR BRAKE ACTUATOR)
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44593 Bracket, Brake Actuator, NO.3
44597 Clamp, Brake Actuator Connector, NO.1
47159B Bracket, Proportioning & By-pass Valve
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
