Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

20 part groups · 2 illustrations

Illustrations

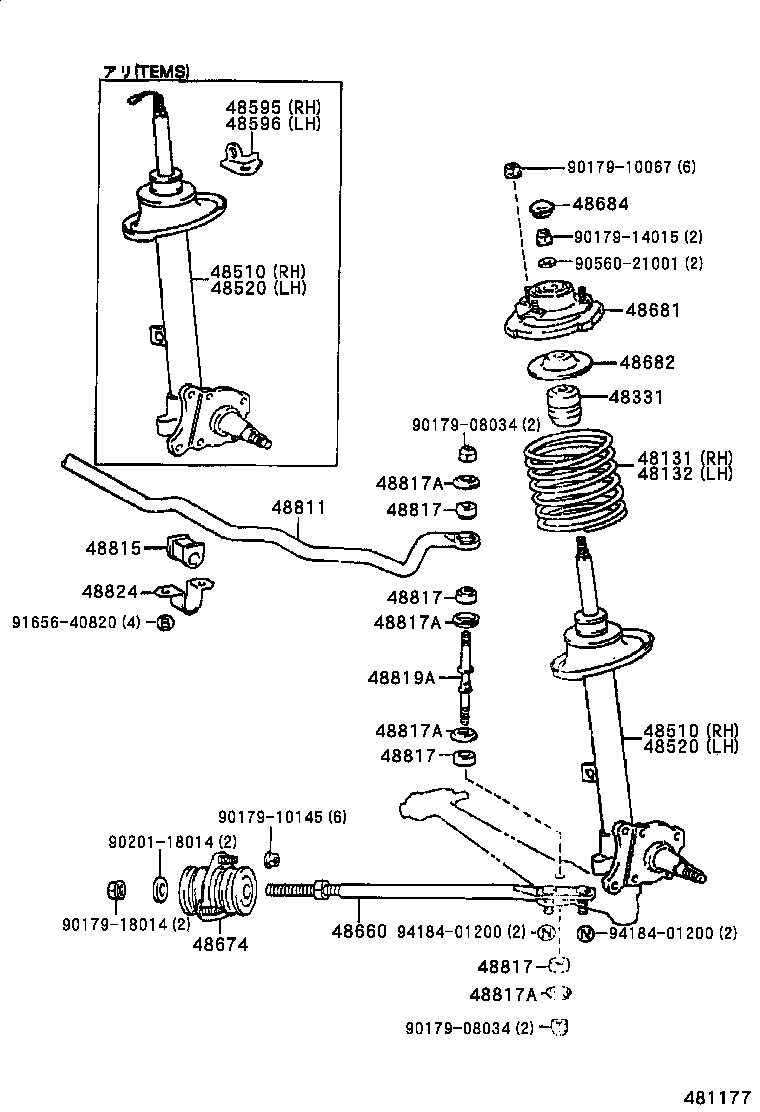

Figure 481176 481176 1987-09 → 1992-12 Figure 481177 481177 1992-12 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48331 Bumper, Front Spring, NO.1
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48595 Clamp, Actuator Harness, RH
48596 Clamp, Actuator Harness, LH
48660 Bar Assy, Strut, RH
48674 Cushion, Strut Bar
48674A Retainer, Cushion(FOR STRUT BAR CUSHION)
48674B Collar(FOR STRUT BAR CUSHION)
48681 Support, Front Suspension, NO.1
48682 Support, Front Suspension, NO.2
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48819A Bolt, Front Stabilizer
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
