Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

17 part groups · 2 illustrations

Illustrations

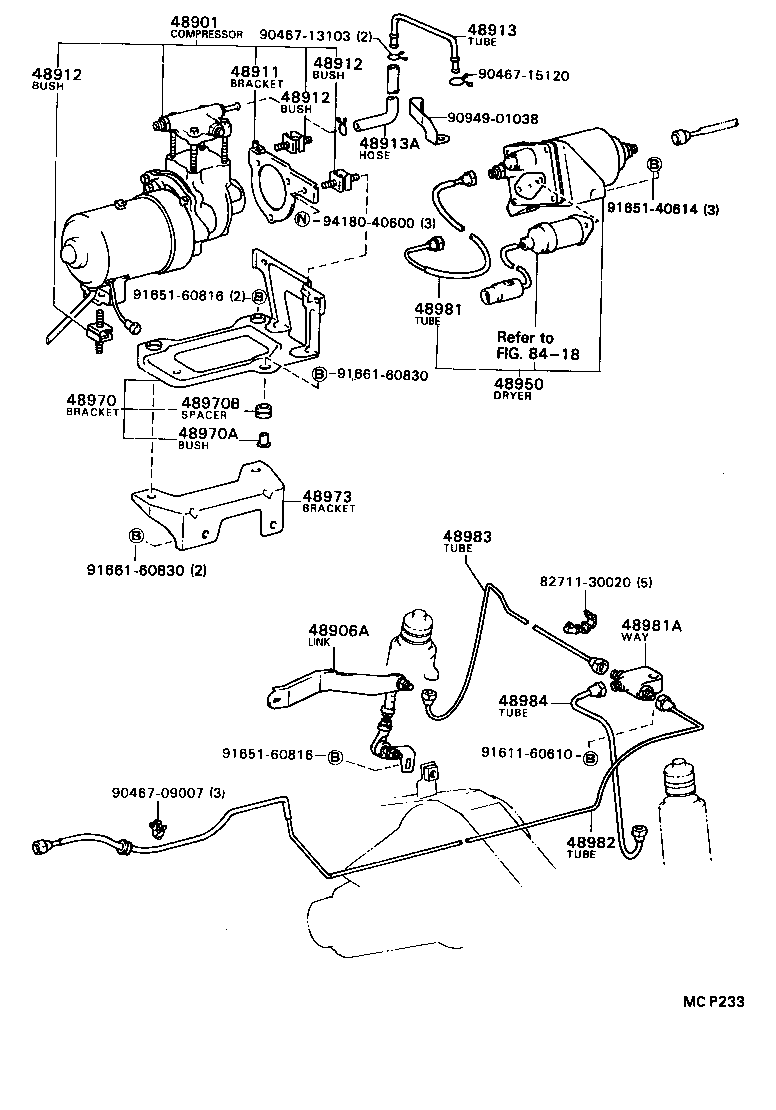

Figure MCF344A MCF344A 1987-09 → 1992-05 Figure MCP233 MCP233 1992-05 → —

Part groups

PNCDescription
48901 Compressor Sub-assy, Height Control
48906A Link Sub-assy, Height Control Sensor, Rear
48911 Bracket, Height Control Compressor
48912 Bush, Compressor
48913 Tube, Suction
48913A Hose(FOR SUCTION TUBE)
48950 Dryer Assy, Height Control
48970 Bracket Assy, Height Control Compressor
48970A Bush(FOR HEIGHT CONTROL COMPRESSOR)
48970B Spacer(FOR HEIGHT CONTROL COMPRESSOR BRACKET)
48973 Bracket, Compressor Side Member
48981 Tube, Height Control, NO.1
48981A Way, 3(FOR HEIGHT CONTROL TUBE)
48982 Tube, Height Control, NO.2
48983 Tube, Height Control, NO.3
48984 Tube, Height Control, NO.4
48999A Grommet(FOR COMPRESSOR TO DRYER TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
