Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 3 illustrations

Illustrations

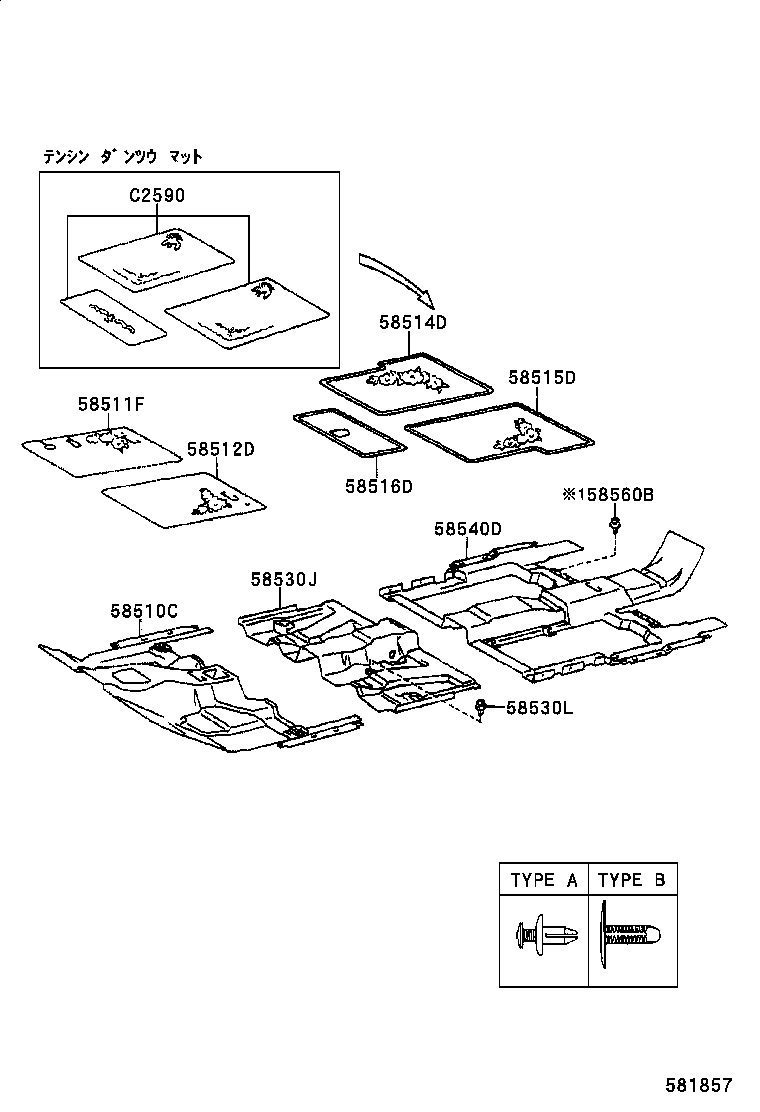

Figure MBS025 MBS025 1987-09 → — Figure 581857 581857 1989-10 → 1990-09 Figure 581857 581857 1990-09 → 1997-01

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58511F Carpet, Floor, Front RH
58512D Carpet, Floor, Front LH
58514D Carpet, Floor, Rear RH
58515D Carpet, Floor, Rear LH
58516D Carpet, Floor, Rear Center
58530J Carpet Assy, Floor, Center
58530L Clip, Floor Carpet, Center
58540D Carpet Assy, Floor, Rear
58560B Clip(FOR FLOOR CARPET, REAR)
C2590 Carpet Assy, Floor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
