Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

91 part groups · 3 illustrations

Illustrations

MBS016C 1987-09 → —

MBS016C 1990-09 → —

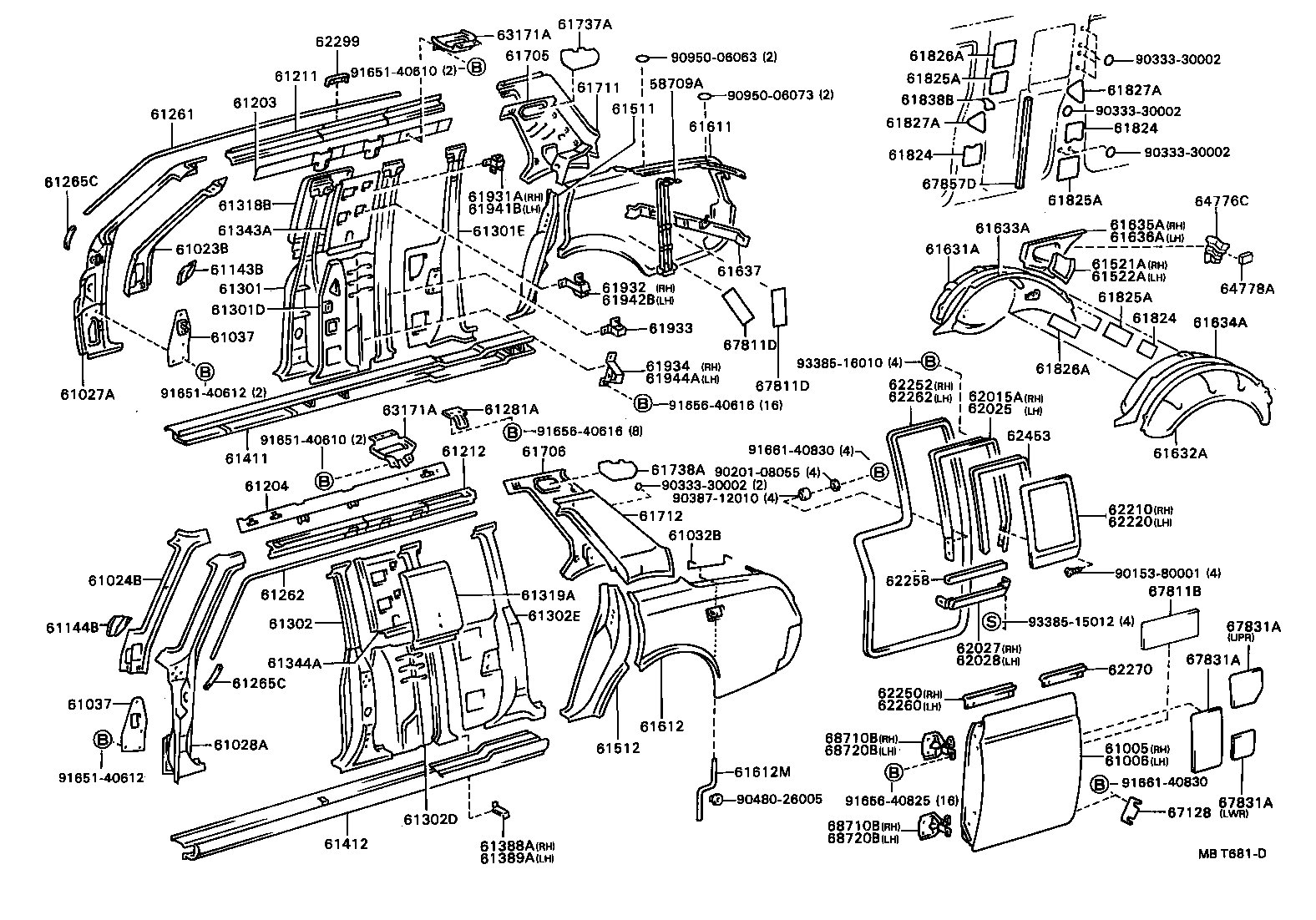

MBT681D 1989-10 → —

Part groups

PNC	Description
58709A	Carrier Sub-assy, Jack
61005	Panel Sub-assy, Side, RH
61006	Panel Sub-assy, Side, LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61032B	Extension Sub-assy, Quarter Panel, LH
61037	Reinforce Sub-assy, Front Body Pillar, Center
61143B	Gusset, Front Body Pillar, Upper Inner RH
61144B	Gusset, Front Body Pillar, Upper Inner LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61265C	Channel, Roof Drip, Lower
61281A	Bracket, Sliding Roof Housing Side Mounting, NO.1
61301	Pillar Sub-assy, Center Body, RH
61301D	Pillar Sub-assy, Center Body, NO.2 RH
61301E	Pillar Sub-assy, Center Body, NO.3 RH
61302	Pillar Sub-assy, Center Body, LH
61302D	Pillar Sub-assy, Center Body, NO.2 LH
61302E	Pillar Sub-assy, Center Body, NO.3 LH
61318B	Panel, Center Body Pillar Finish, RH
61319A	Panel, Center Body Pillar Finish, LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61388A	Plate, Center Body Pillar End, RH
61389A	Plate, Center Body Pillar End, LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61425	Reinforcement, Rocker Panel, NO.4 RH
61426A	Reinforcement, Rocker Panel, NO.4 LH
61511	Pillar, Quarter Lock, RH
61512	Pillar, Quarter Lock, LH
61521A	Brase, Quarter Lock Pillar TO Rear Panel, RH
61522A	Brase, Quarter Lock Pillar TO Rear Panel, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61612M	Hose(FOR FUEL INLET BOX)
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61635A	Brace, Quarter Wheel House, RH
61636A	Brace, Quarter Wheel House, LH
61637	Brace, Quarter Wheel House, RH
61705	Panel Sub-assy, Roof Side, Inner RH
61706	Panel Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61737A	Plate, Roof Side Inner Rain Proof, RH
61738A	Plate, Roof Side Inner Rain Proof, LH
61824	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
61826A	Plate, Noise Control, NO.3
61827A	Plate, Noise Control, NO.4
61838B	Plate, Noise Control, NO.5
61931A	Strength, Upper Rail, NO.1 RH
61932	Strength, Upper Rail, NO.2 RH
61933	Strength, Upper Rail, NO.3 RH
61934	Strength, Upper Rail, NO.4 RH
61941B	Strength, Upper Rail, NO.1 LH
61942B	Strength, Upper Rail, NO.2 LH
61944A	Strength, Upper Rail, NO.4 LH
62015A	Frame Sub-assy, Side Window, RH
62025	Frame Sub-assy, Side Window, LH
62027	Channel Sub-assy, Side Window Glass, RH
62028	Channel Sub-assy, Side Window Glass, LH
62210	Glass, Side Window, Front Upper RH
62220	Glass, Side Window, Front Upper LH
62250	Weatherstrip Assy, Side Window, Outer RH
62252	Weatherstrip, Side Window, RH
62258	Filler, Side Window Glass Channel
62260	Weatherstrip Assy, Side Window, Outer LH
62262	Weatherstrip, Side Window, LH
62270	Weatherstrip Assy, Side Window, Outer Rear
62299	Bracket, Side NO.2 Window Stopper
62453	Run, Rear Side Window, Outer Center Upper RH
63171A	Bracket, Room Lamp
64776C	Guard, Spare Wheel, NO.2
64778A	Protector, Spare Wheel
67128	Plate, Center Door Panel
67811B	Pad, Side Panel Silencer
67811D	Pad, Quater Silencer
67831A	Cover, Side Panel Service Hole
67857D	Weatherstrip, Center Door, Center
68710B	Hinge Assy, Side Panel, Upper RH
68720B	Hinge Assy, Side Panel, Upper LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
