Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

15 part groups · 3 illustrations

Illustrations

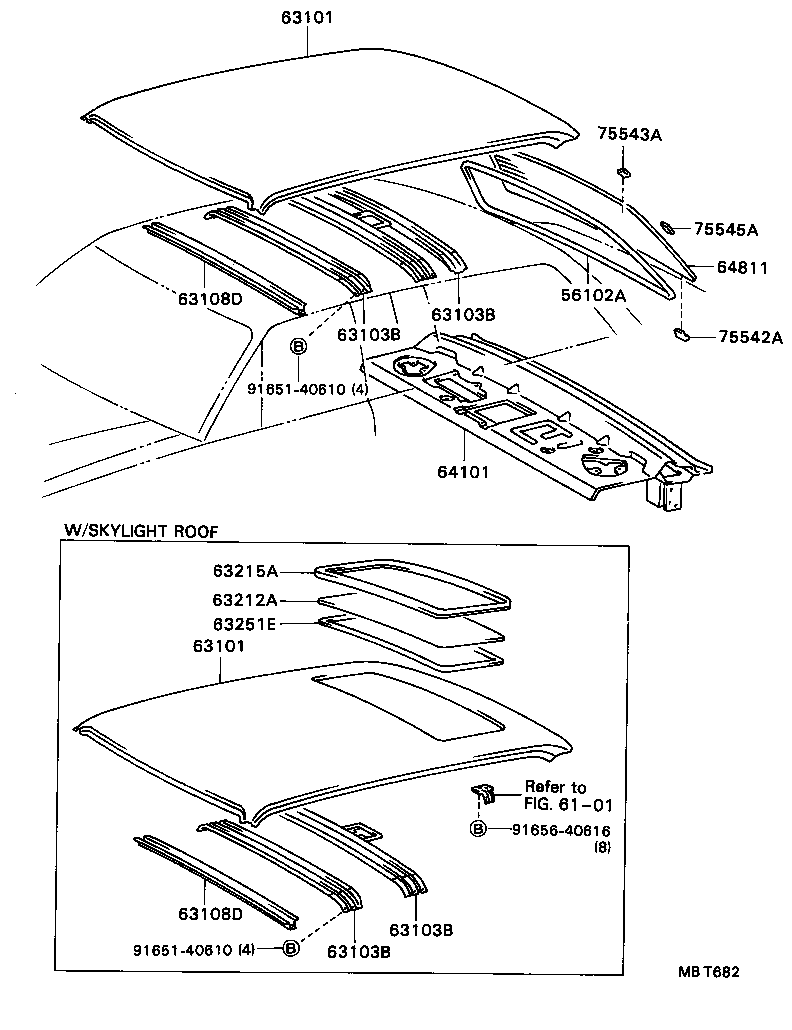

Figure MBS017B MBS017B 1987-09 → — Figure MBS017B MBS017B 1990-09 → — Figure MBT682 MBT682 1989-10 → —

Part groups

PNCDescription
56102A Stop Sub-assy, Window Shield
63101 Panel Sub-assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63103B Reinforcement Sub-assy, Roof Panel, Center
63104E Reinforcement Sub-assy, Roof Panel, Rear
63108D Support Sub-assy, Roof Panel
63141G Reinforcement, Roof Panel, NO.1
63212A Glass, Roof Window
63215A Moulding, Roof Window, Upper
63251E Dam, Roof Window, NO.1
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
75542A Spacer, Step Rubber Back Window Glass
75543A Spacer, Flat Rubber Back Window Glass
75545A Spacer, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
