Toyota Century
1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan
Discontinued model
Data version 1997-10

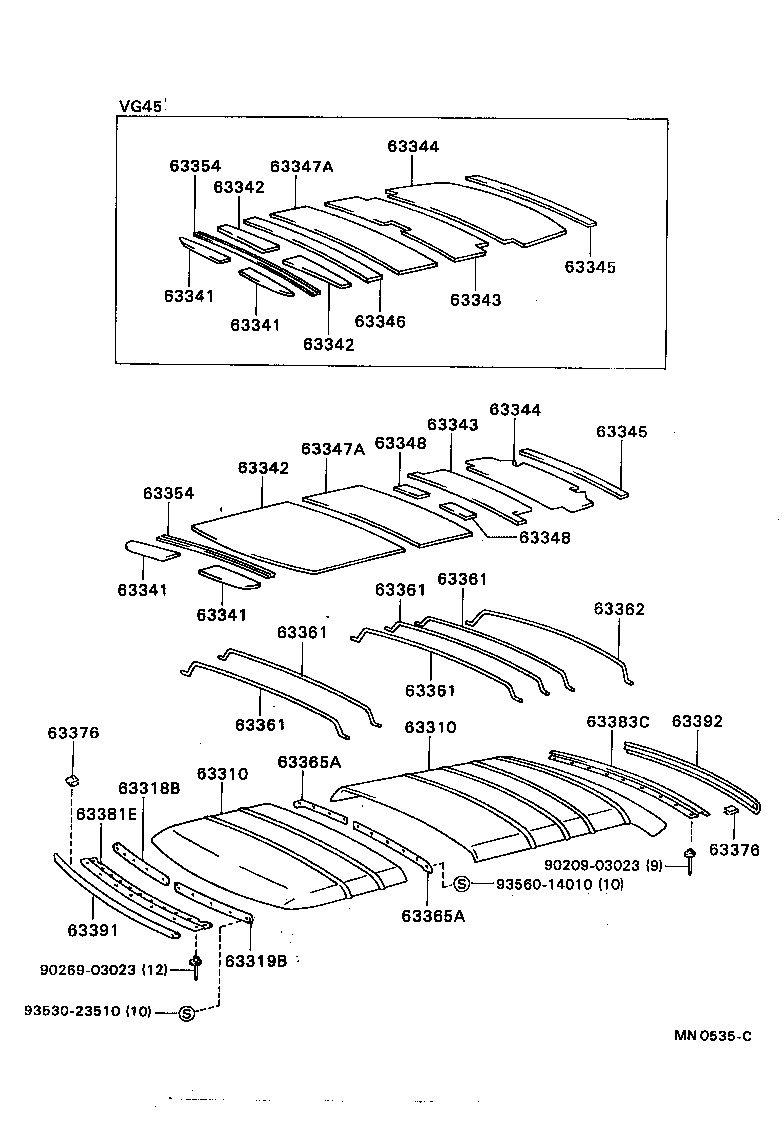

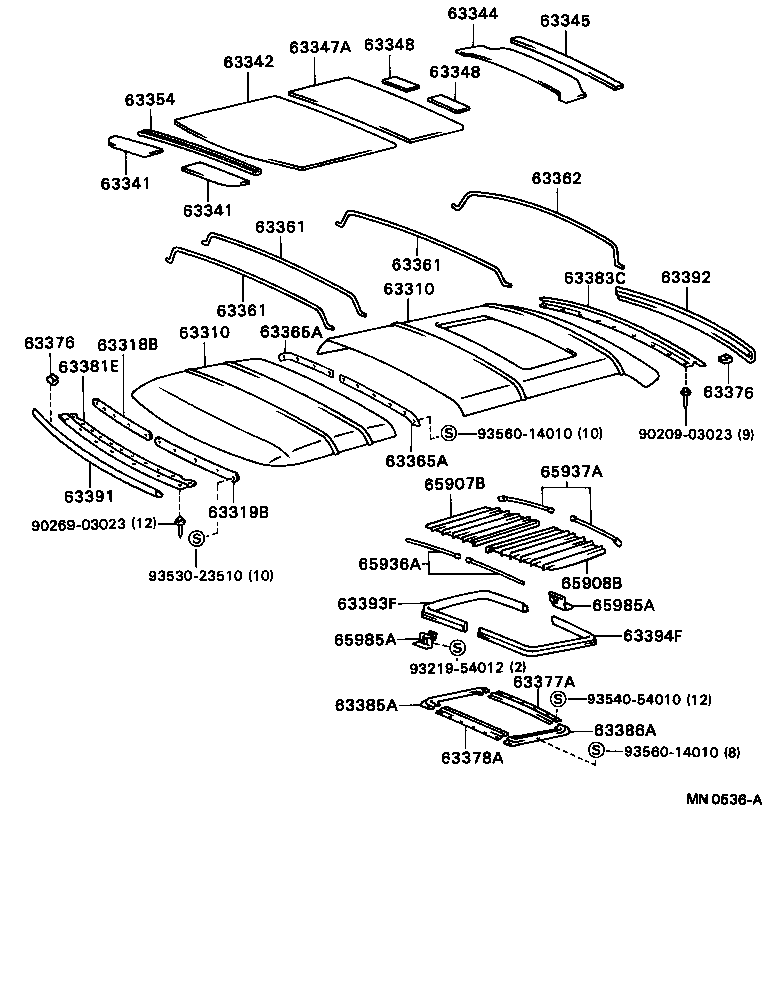

Roof Headlining & Silencer Pad
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63318B | Moulding, Roof Headlining Set, NO.1 |
| 63319B | Joint, Roof Headlining Trim |
| 63319D | Moulding, Roof Headlining Set, NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63346 | Pad, Roof Silencer, NO.6 |
| 63347A | Pad, Roof Silencer, NO.7 |
| 63348 | Pad, Roof Silencer, NO.8 |
| 63354 | Pad, Roof Headlining Front Support |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63365A | Plate, Roof Headlining Set |
| 63376 | Clip, Headlining |
| 63377A | Retainer, Roof Headlining Support, NO.1 |
| 63378A | Retainer, Roof Headlining Support, NO.2 |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63383C | Retainer, Roof Headlining Trim, Rear |
| 63385A | Retainer, Roof Headlining Trim Side, RH |
| 63386A | Retainer, Roof Headlining Trim Side, LH |
| 63391 | Trim, Roof Headlining, Front |
| 63392 | Trim, Roof Headlining, Rear |
| 63393F | Trim, Roof Headlining, RH |
| 63394F | Trim, Roof Headlining, LH |
| 65907B | Curtain Sub-assy, Rear RH |
| 65908B | Curtain Sub-assy, Rear LH |
| 65936A | Rail, Curtain, NO.1 |
| 65937A | Rail, Curtain, NO.2 |
| 65985A | Holder, Curtain Rail |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
