Toyota Century
1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan
Discontinued model
Data version 1997-10
Front Seat & Seat Track

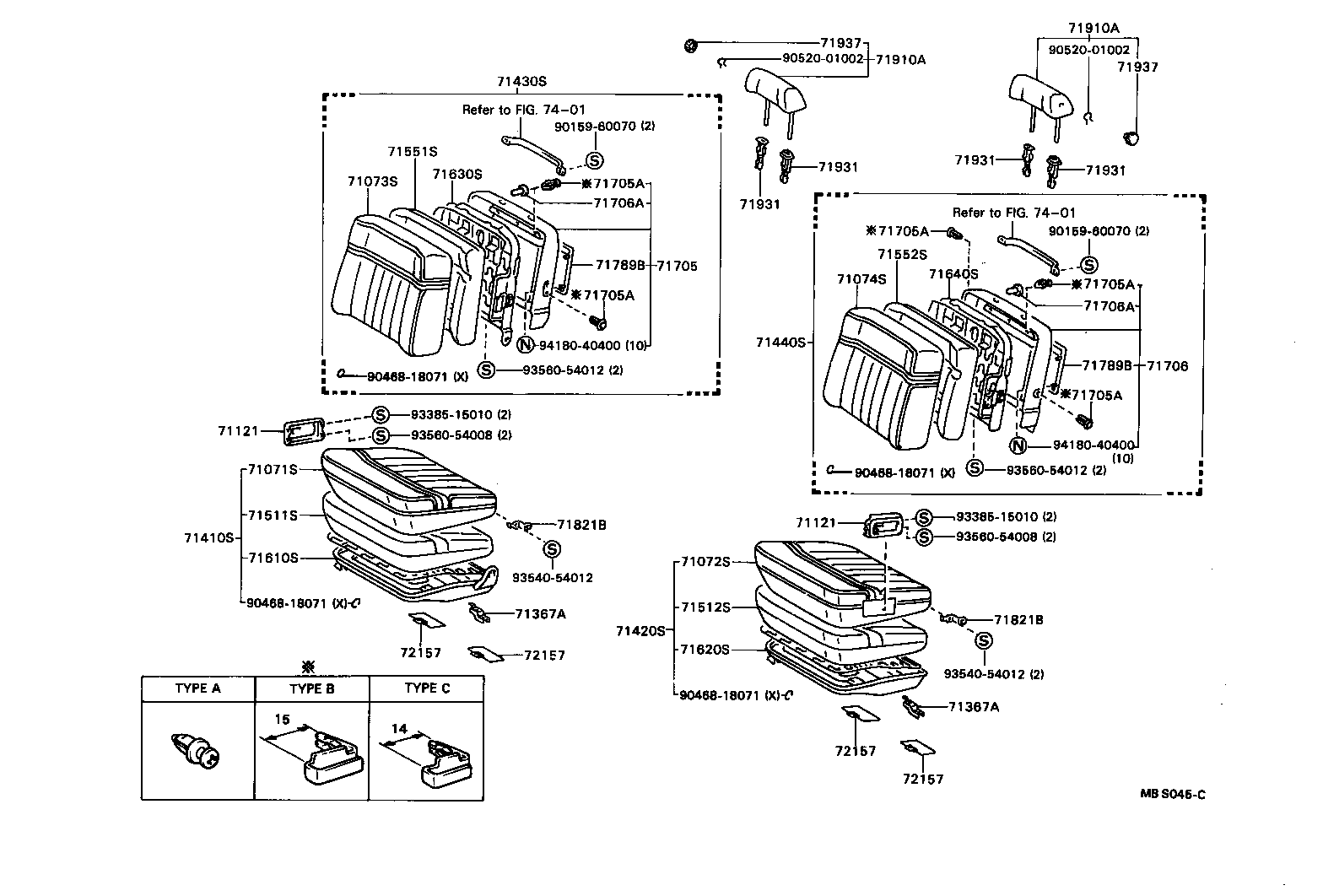

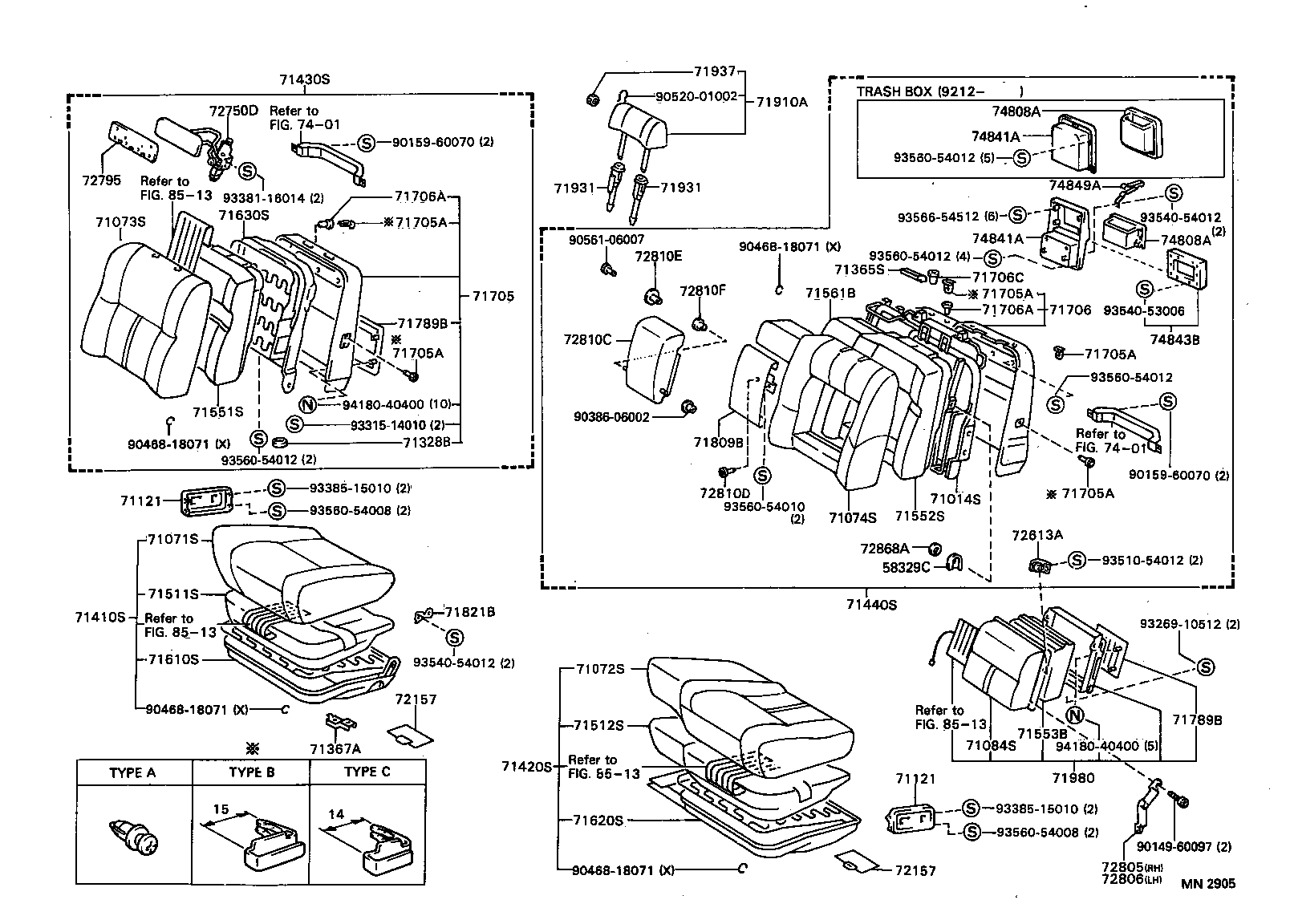

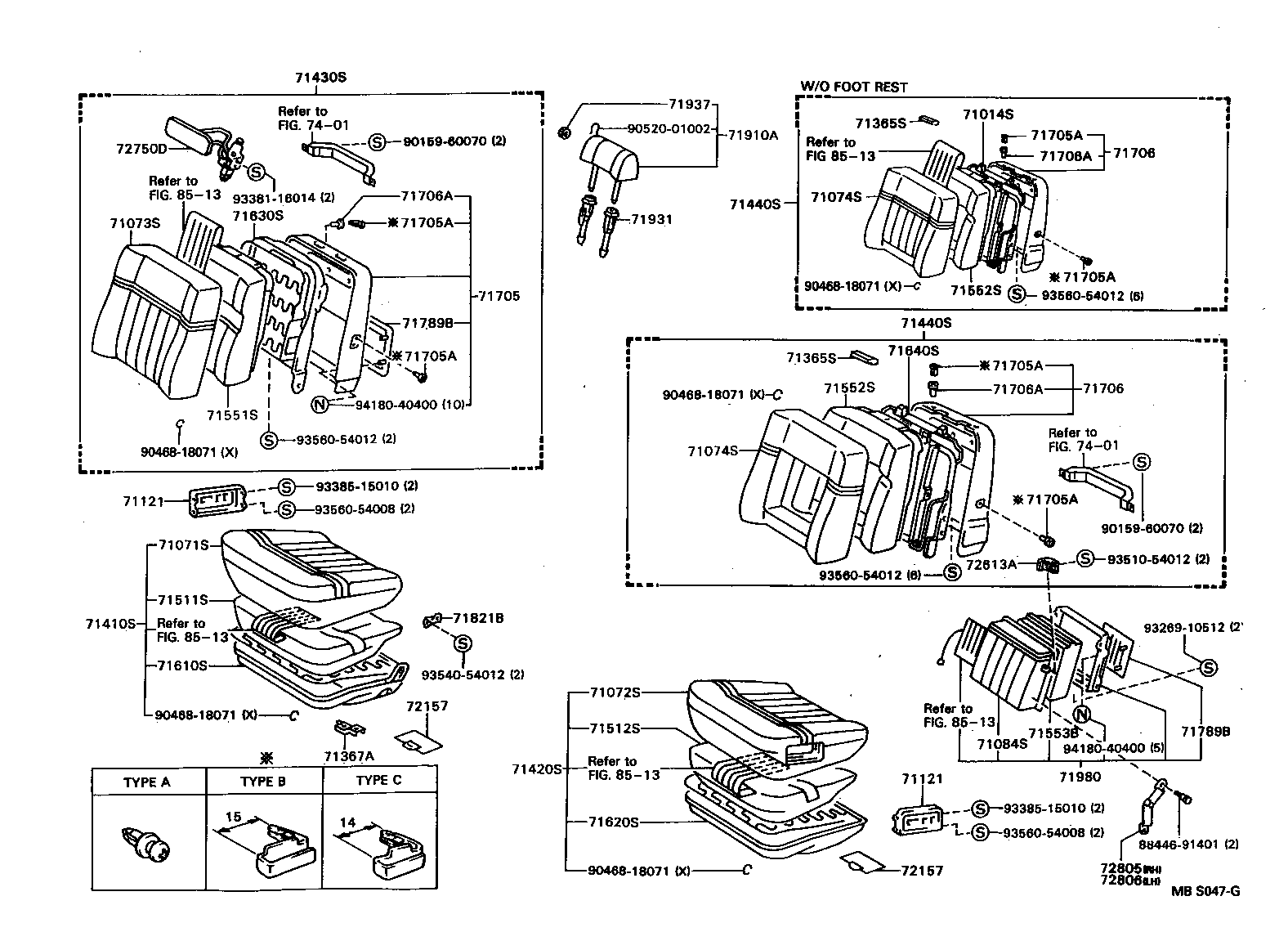

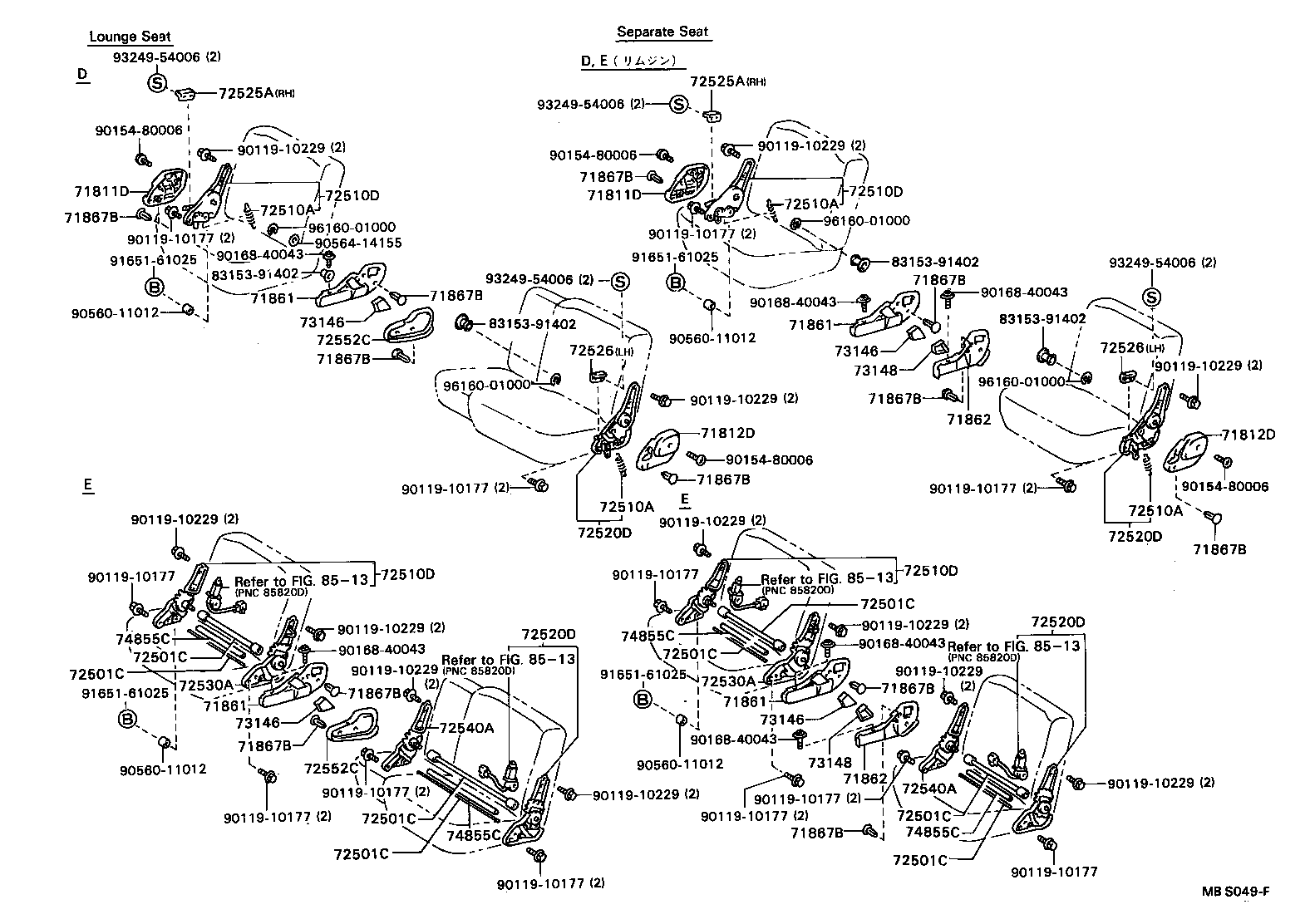

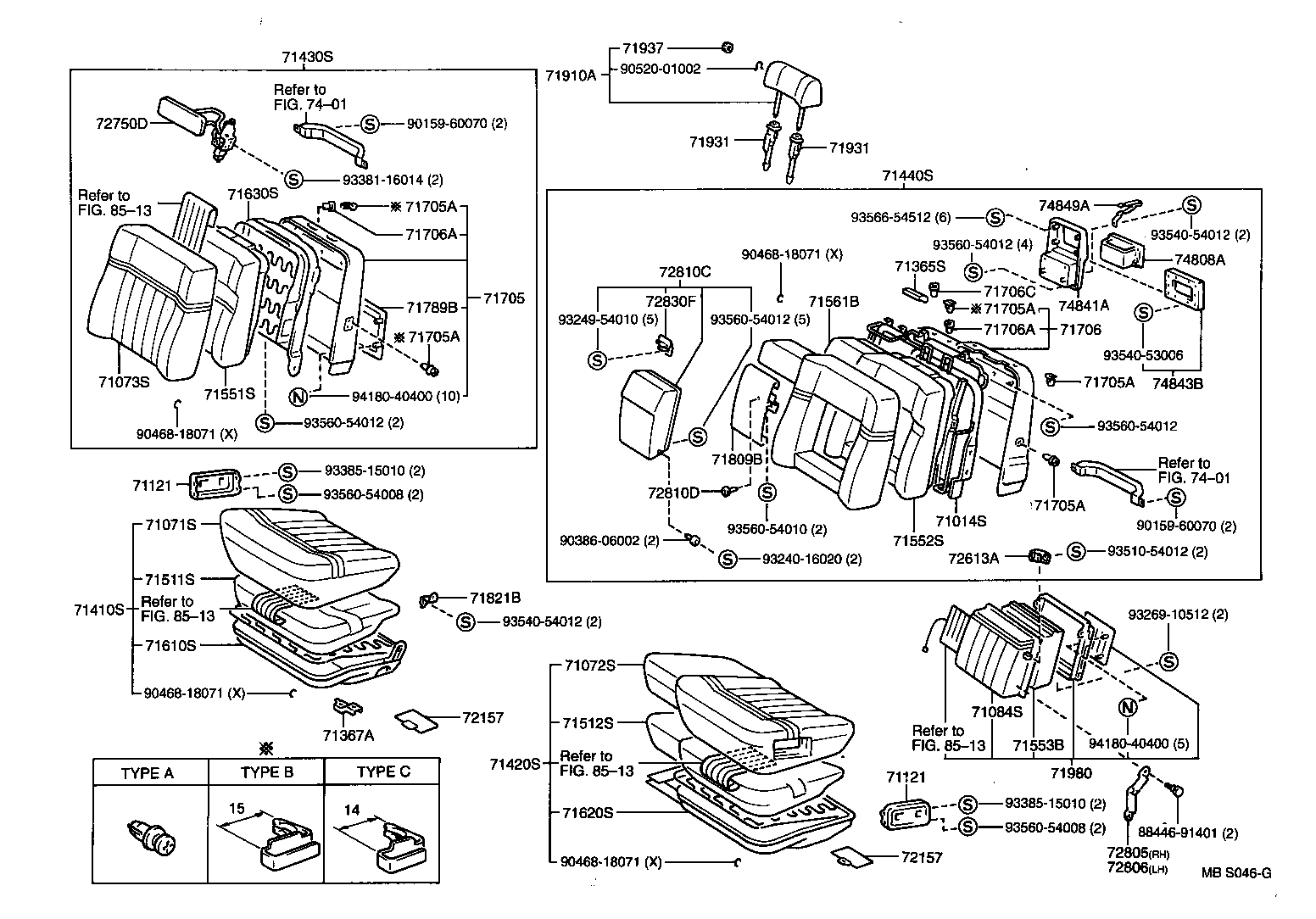

77 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 58329C | Spacer, Footrest |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71084S | Cover Sub-assy, Front Seatback, Inside LH |
| 71121 | Bracket, Front Seat Cushion, RH |
| 71328B | Washer, Front Seatback Pocket Setting, RH |
| 71365S | Pad, Center Seatback |
| 71367A | Bracket, Front Seat Set, NO.7 |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71553B | Pad, Front Seatback, B |
| 71561B | Pad, Front Seatback, Upper |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71705A | Clip(FOR FRONT SEATBACK BOARD) |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71706A | Cap, Front Seatback Board |
| 71706C | Cap, Front Seatback, Center Board |
| 71789B | Pocket, Front Seatback Board |
| 71809B | Cover Sub-assy, Front Seat Armrest Holder |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71821B | Bracket, Front Seat Shield Set, NO.1 |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867B | Clip(FOR FRONT SEAT CUSHION INNER SHIELD) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 71937 | Handle, Front Seat Headrest Regulator |
| 71980 | Footrest Assy, Front Seat, NO.1 |
| 72110 | Regulator Assy, Power Seat, RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72401 | Housing Sub-assy, Front Seat Motor Side |
| 72402 | Housing Sub-assy, Cable Side |
| 72405 | Housing Sub-assy, Front Seat Vertical |
| 72410A | Cable Assy, Seat Adjuster Drive, NO.1 |
| 72501C | Pipe Sub-assy, Reclining Connecting |
| 72510A | Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER) |
| 72510D | Adjuster Assy, Reclining Seat, Outer RH |
| 72520D | Adjuster Assy, Reclining Seat, Outer LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72530A | Adjuster Assy, Reclining Seat, Inner RH |
| 72540A | Adjuster Assy, Reclining Seat, Inner LH |
| 72552C | Cover, Reclining Hinge, LH |
| 72613A | Striker, Front Seat Lock |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72795 | Pad, Lumbar Support |
| 72805 | Link Sub-assy, Front Seat Center Armrest, RH |
| 72806 | Link Sub-assy, Front Seat Center Armrest, LH |
| 72810C | Armrest Assy, Front Seat, Center |
| 72810D | Clip, Front Seat Armrest |
| 72810E | Bush, Front Seat Armrest, NO.1 |
| 72810F | Bush, Front Seat Armrest, NO.2 |
| 72830F | Lock Sub-assy, Front Seat Armrest |
| 72868A | Cover, Center Armrest Hinge |
| 73146 | Cover, Front Seat Belt Inner Anchor Bracket, RH |
| 73148 | Cover, Front Seat Belt Inner Anchor Bracket, LH |
| 74808A | Box Sub-assy, Seat Trash |
| 74841A | Panel, Front Seatback Control |
| 74843B | Ornament, Front Seatback Control Panel |
| 74849A | Retainer, Front Seatback Control Panel Set |
| 74855C | Pipe, Center Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
