Toyota Century
1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan
Discontinued model
Data version 1997-10

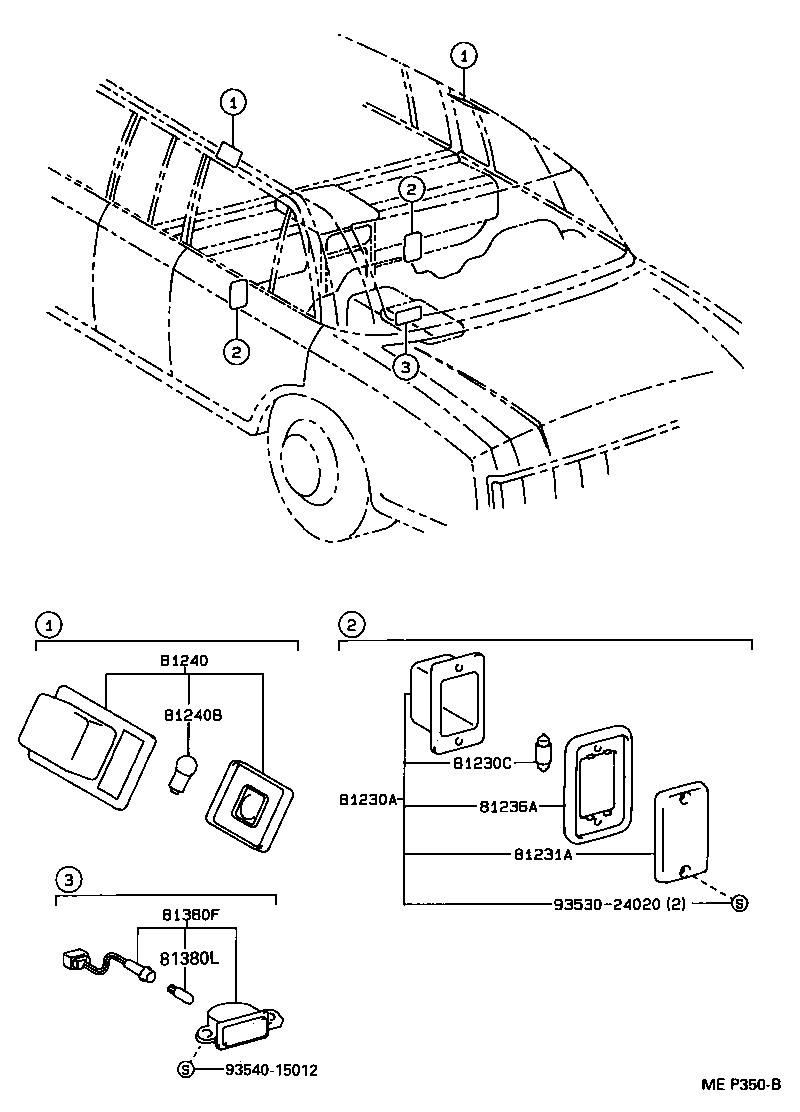

Interior Lamp
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81205 | Lamp Sub-assy, Ash Receptacle |
| 81205B | Bulb, Ash Receptacle Lamp |
| 81230 | Lamp Assy, Courtesy |
| 81230A | Lamp Assy, Courtesy, NO.2 |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230C | Bulb(FOR COURTESY LAMP NO.2) |
| 81231 | Lens, Courtesy Lamp |
| 81231A | Lens, Courtesy Lamp, NO.2 |
| 81236 | Rim, Courtesy Lamp |
| 81236A | Rim, Courtesy Lamp, NO.2 |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81250 | Lamp Assy, Room, NO.2 |
| 81250B | Bulb, Room Lamp, NO.2 |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260B | Bulb(FOR GLOVE BOX) |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261 | Lens And Cover, Map Lamp |
| 81280 | Lamp Assy, Engine Room |
| 81280B | Bulb, Engine Room Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81332 | Packing, Luggage Compartment Lamp Lens |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
| 81380F | Lamp Assy, Console Box |
| 81380H | Lamp Assy, Step |
| 81380J | Cap, Instrumet Panel Under Lamp |
| 81380L | Bulb, Console Box Lamp, Rear |
| 81380N | Cap, Step Lamp |
| 81870D | Lamp Assy, Key Cylinder |
| 81870E | Bulb, Key Cylinder Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
