Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

104 part groups · 16 illustrations

Illustrations

MEK447C 1987-09 → —

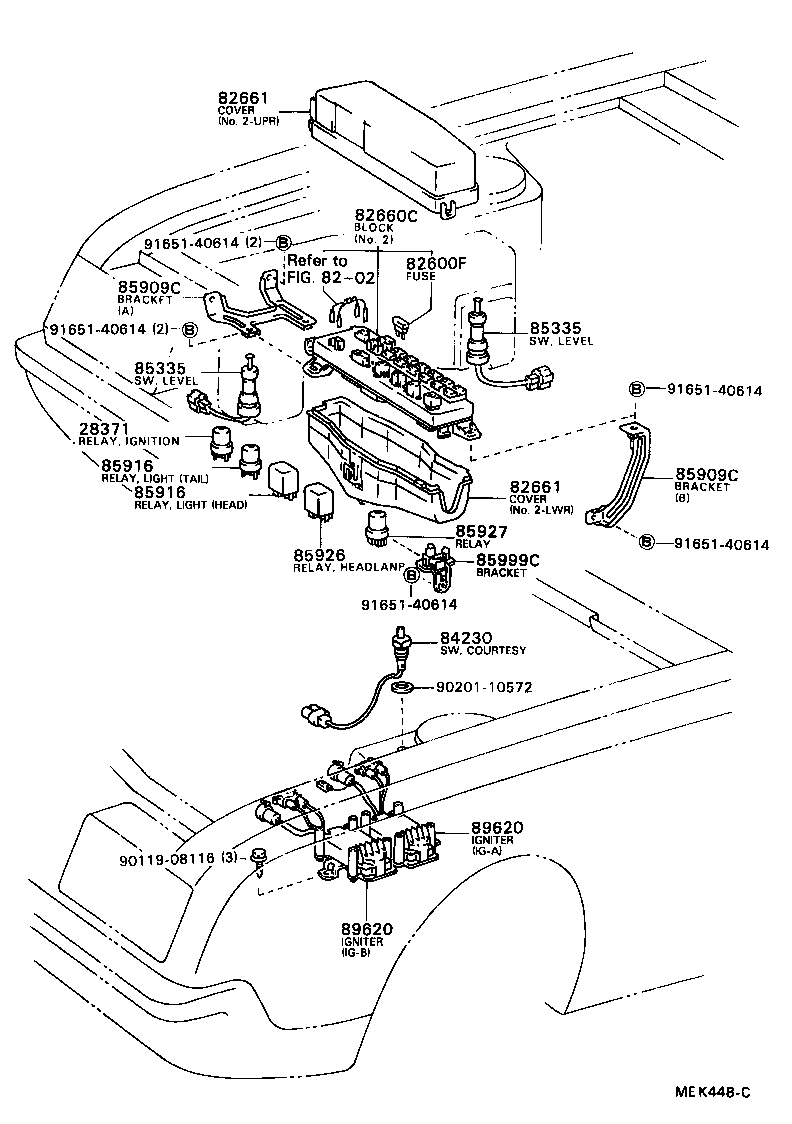

MEK448C 1987-09 → —

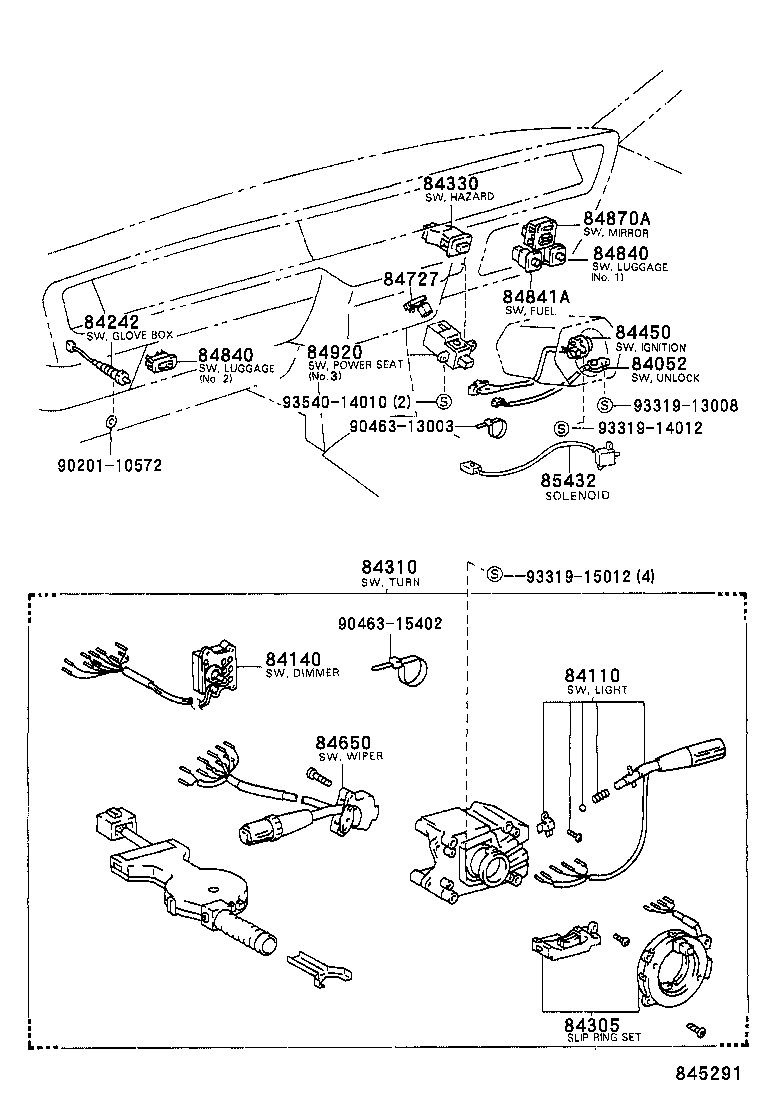

845291 1987-09 → 1992-12

843829 1987-09 → 1997-01

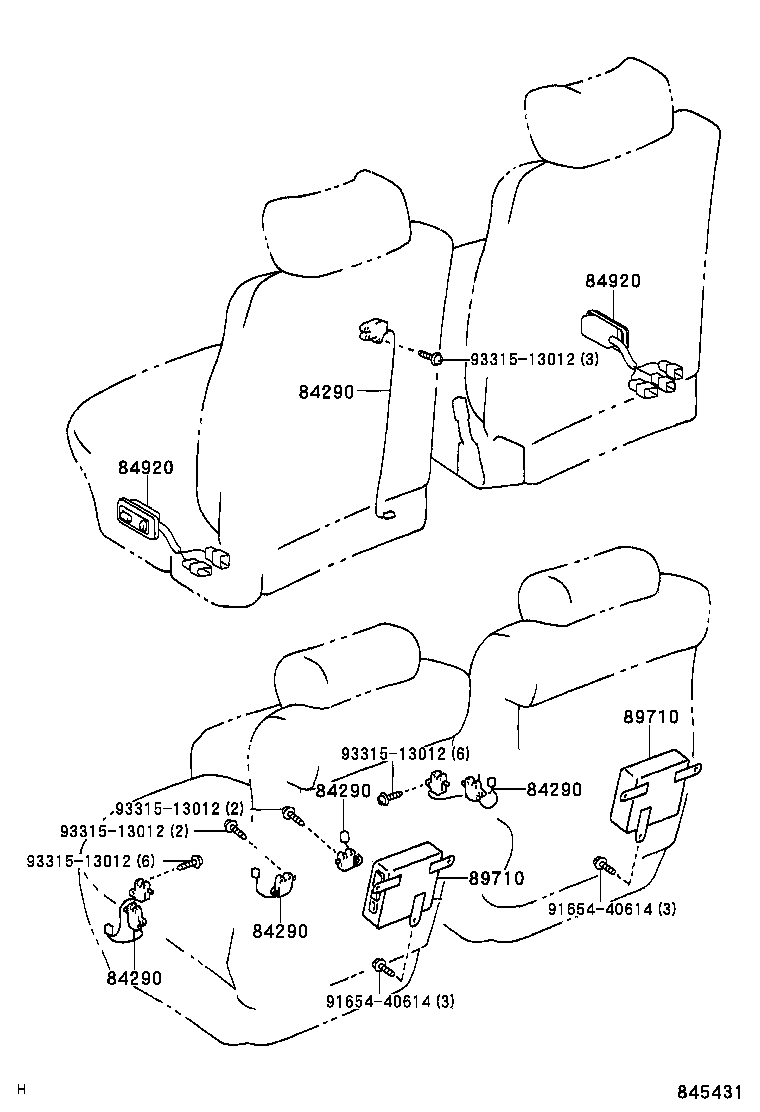

845431 1992-12 → —

MEX198B 1992-12 → —

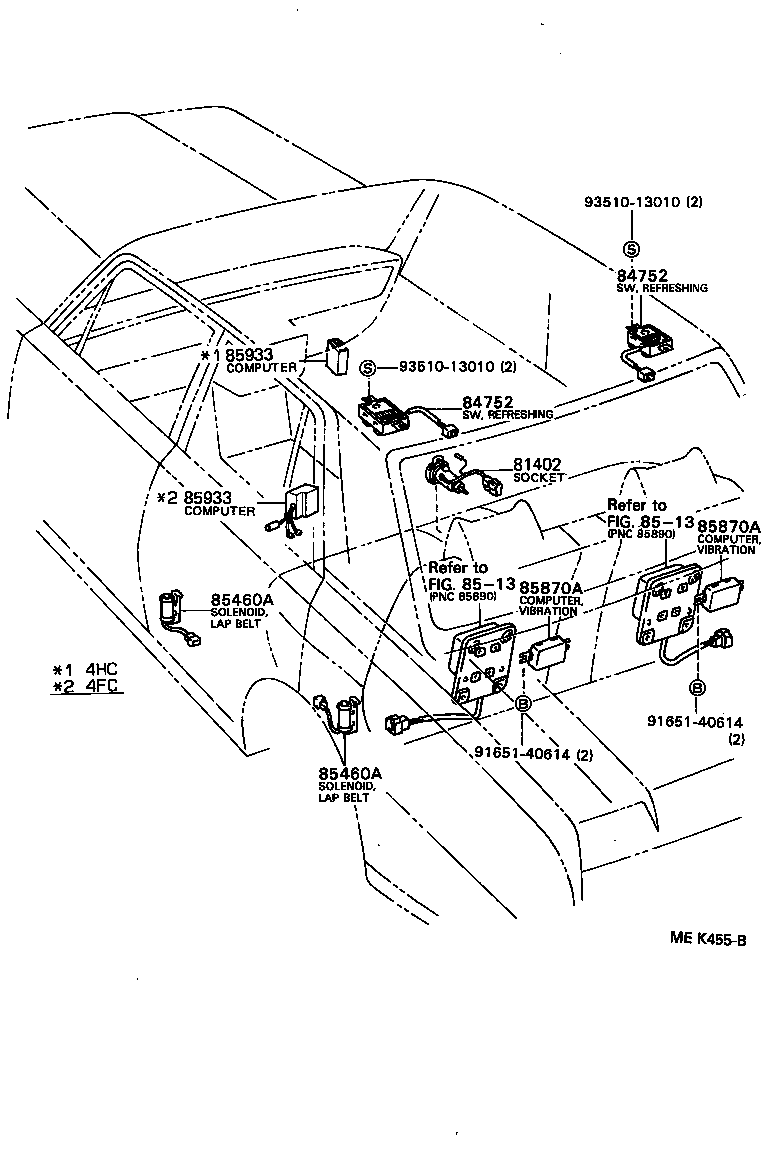

MEK455B 1987-09 → —

MEP382C 1989-10 → 1990-09

MEP382C 1990-09 → —

Part groups

PNC	Description
27790	Relay Assy, Charge Lamp
28300	Relay Assy, Starter
28371	Relay, Ignition, NO.1
81402	Socket Sub-assy, Inspection Lamp, NO.1
81980	Flasher Assy, Turn Signal
82600F	Fuse, Fuse Block
82616	Puller, Fuse
82650	Breaker Assy, Wiring Circuit, NO.1
82660C	Block Assy, Relay
82661	Cover, Relay Block, NO.1
83320	Gage Assy, Fuel Sender
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
83650	Fusee
84052	Switch Assy, Un-lock Warning
84110	Switch Assy, Light Control, NO.1
84140	Switch Assy, Headlamp Dimmer
84230	Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84231A	Switch, Courtesy Lamp
84242	Switch, Glove Box Lamp
84242B	Switch, Glove Box Lamp
84290	Switch Assy, Limit
84305	Slipring, Steering Sensor
84306	Cable Sub-assy, Spiral
84310	Switch Assy, Turn Signal
84317	Sensor, Steering Position
84329	Switch, Turn Signal
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84450	Switch Assy, Ignition OR Starter
84533	Switch, Luggage Closer Limit
84535A	Switch, Door Lock
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84727	Switch, Shift Lock Control
84752	Switch, Refreshing Seat
84810	Switch Assy, Power Window Regulator
84810A	Switch Assy, Power Curtain
84810B	Bulb (FOR POWER WINDOW REGULATOR SWITCH)
84810C	Switch Assy, Partition Glass
84820	Master Switch Assy, Power Window Regulator
84840	Switch Assy, Luggage Compartment Door Opening
84841A	Switch, Fuel Lid Opener
84841C	Relay, Fuel Lid Opener
84870A	Switch Assy, Outer Mirror
84920	Switch Assy, Power Seat
84920B	Bulb (FOR POWER SEAT SWITCH)
84920F	Cap(FOR POWER SEAT SWITCH)
84922	Switch, Front Power Seat
84923	Switch, Rear Power Seat
84930	Switch Assy, Door Control
84930C	Bulb(FOR DOOR CONTROL SWITCH)
84931B	Switch, Door Control
85335	Switch Assy, Washer Level Warning
85410	Solenoid Assy, Luggage Door Lock
85432	Solenoid, Key Interlock
85460A	Solenoid Assy, Lap Belt
85490A	Solenoid Assy, Fuel Lid Opener
85500	Lighter Assy, Cigarette
85870A	Computer Assy, Vibration Seat
85880	Relay Assy, Power Seat
85909C	Bracket Sub-assy, Relay, NO.1
85910C	Relay Assy (FOR HEATER BLOWER MOTOR)
85911	Relay, Auto Curtain Control, RH
85912	Relay, Defogger
85915C	Relay (FOR ELR)
85915E	Relay
85916	Relay, Light Control
85916C	Relay, Back UP Lamp
85916D	Relay, Fog Lamp
85916F	Relay, Cornering Lamp
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85930	Relay Assy, Power Window
85933	Computer, Shift Lock Control
85939	Relay, Power Window
85940	Relay Assy, Windshield Wiper
85982	Relay, Luggage Closer
85999A	Bracket, Relay, NO.2
85999C	Bracket, Relay, NO.3
85999H	Bracket, Relay
86530	Relay Assy, Horn
86640	Chime Assy
86650E	Buzzer Assy
88630G	Relay Assy, Cooler
88630H	Relay Assy, Cooler
89221	Computer, Multiplex Network Body
89222	Computer, Multiplex Network Door, Front RH
89223	Computer, Multiplex Network Door, Front LH
89224	Computer, Multiplex Network Door, Rear RH
89225	Computer, Multiplex Network Door, Rear LH
89226	Fiber, Optical
89373	Sensor, Lamp Failure Indicator
89425	Sensor, Exhaust Gas Temperature
89428	Switch, Temperature Detect, NO.2
89465	Sensor, Oxygen
89466	Gasket, Oxygen Sensor
89550	Computer Assy, Emission Control
89590	Computer Assy, Condition Indicator
89599	Bracket, Condition Indicator Computer
89620	Igniter Assy
89650	Computer Assy, Power Steering
89710	Computer Assy, Position Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
