Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

21 part groups · 3 illustrations

Illustrations

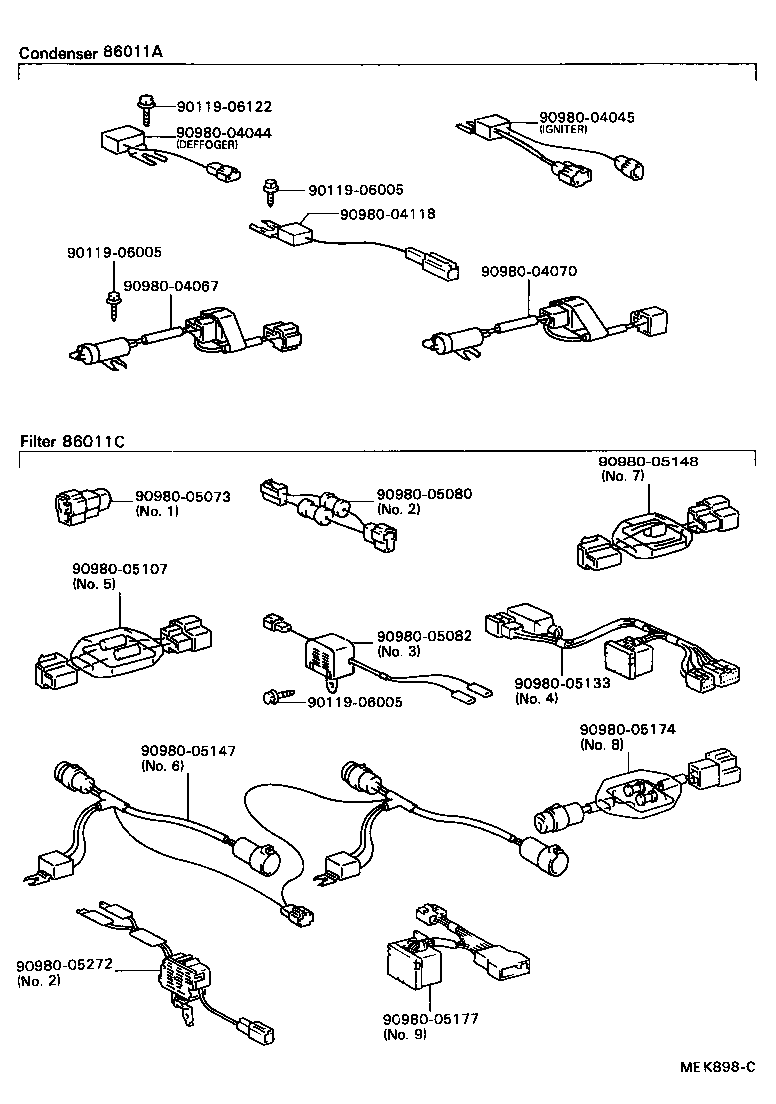

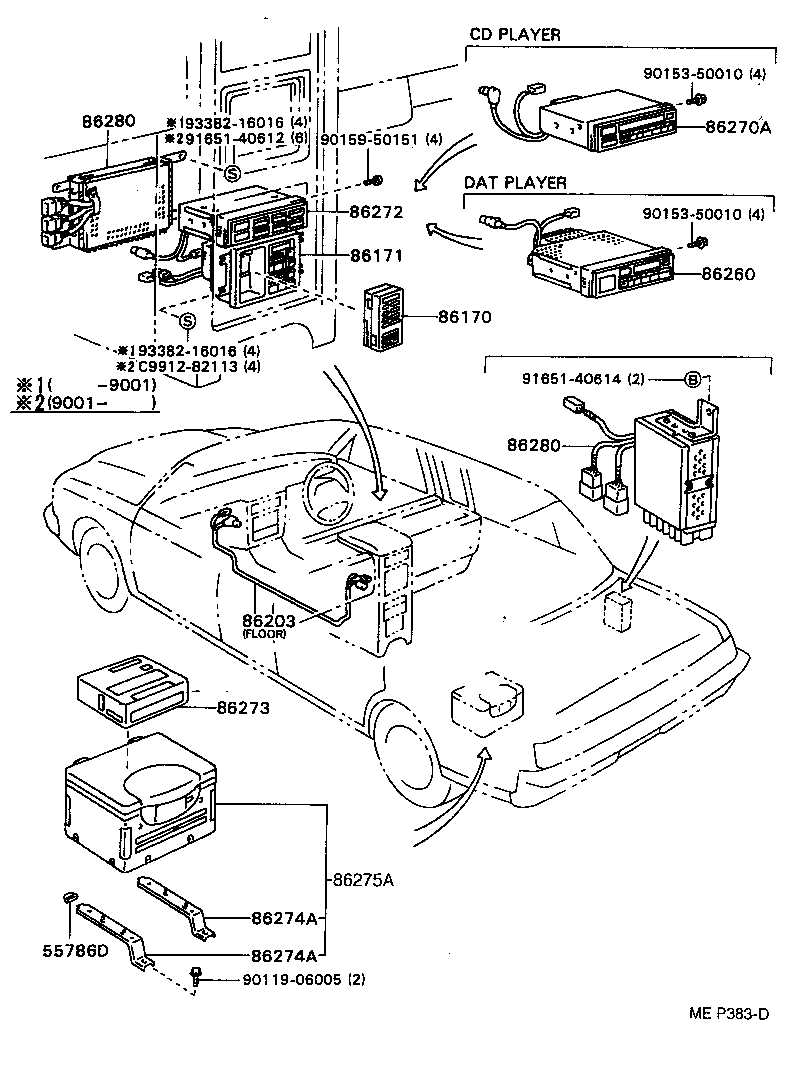

Figure MEK466E MEK466E 1987-09 → — Figure MEP383D MEP383D 1989-10 → — Figure MEK898C MEK898C 1987-09 → —

Part groups

PNCDescription
55786D Cap, Cowl Panel, Outer
86011A Condenser, Radio Setting
86011C Filter, Noise
86040 Headphone Assy, Stereo
86120 Receiver Assy, Radio
86170 Switch And Volume Assy, Radio
86171 Base, Radio Remote Control
86173 Display, Radio Remote Controler
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86252 Code, Microphone, NO.1
86260 Tape Player Assy
86270A Disc Player Assy
86272 Controller, Disc Player
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
