Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

23 part groups · 5 illustrations

Illustrations

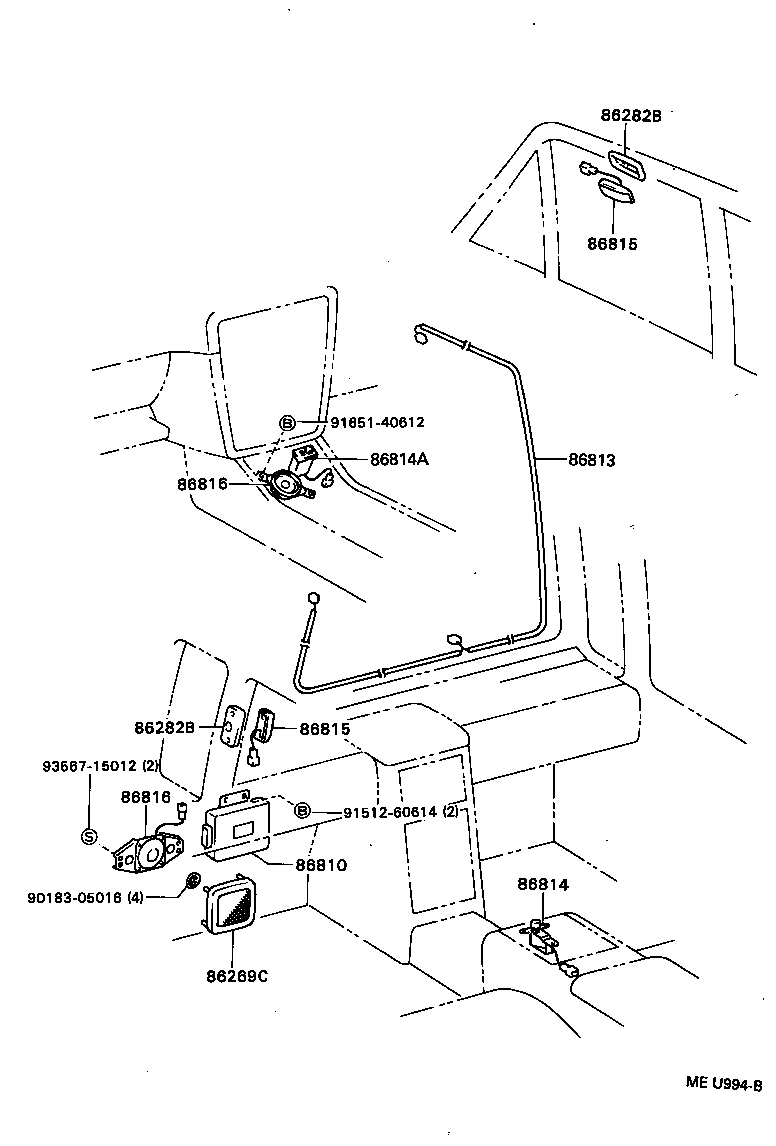

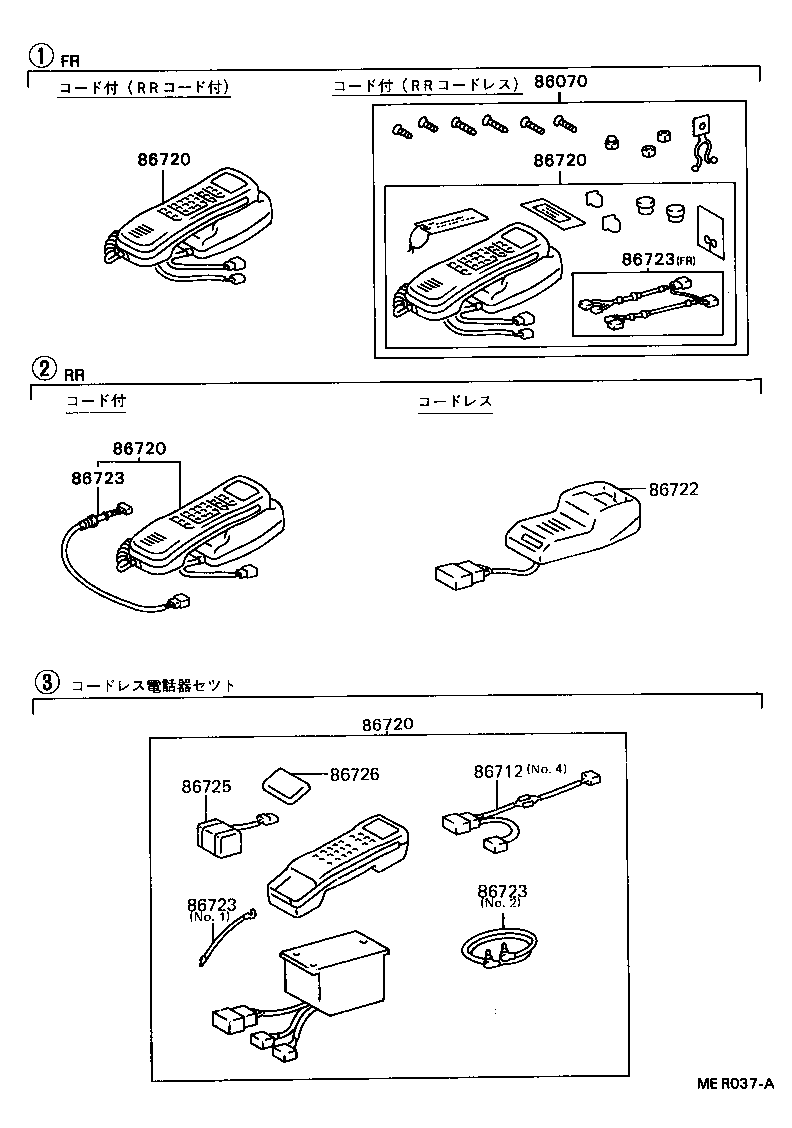

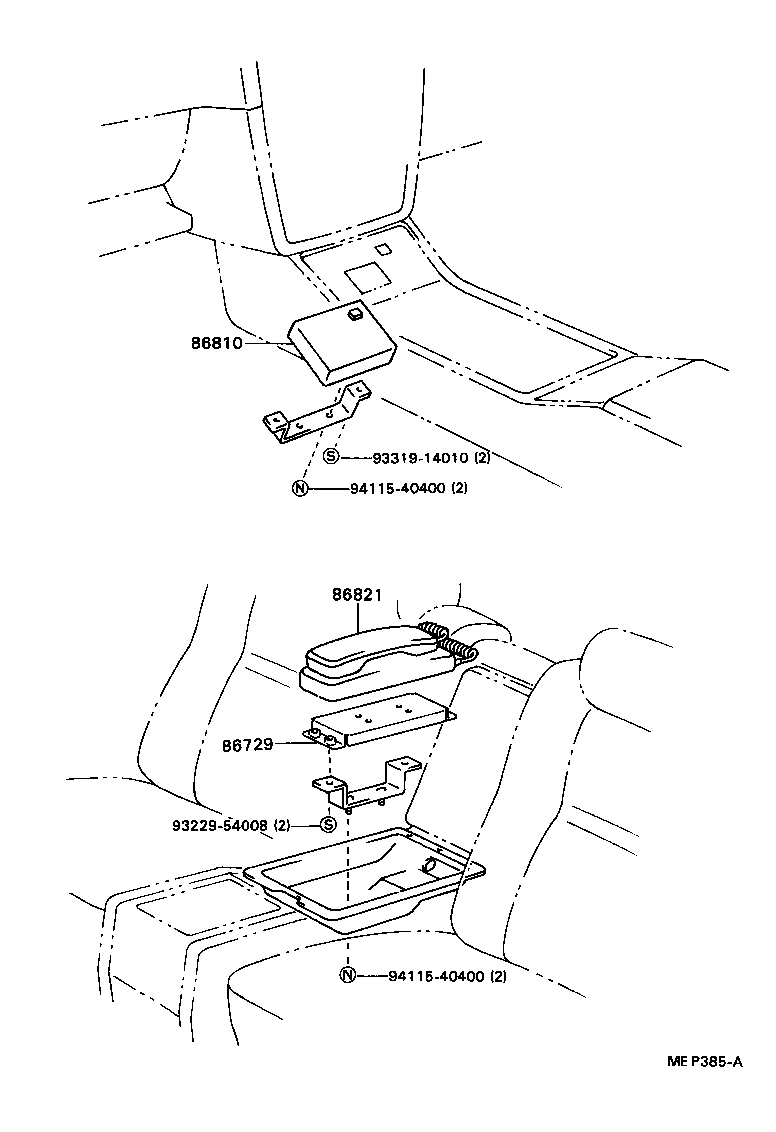

Figure MEK488E MEK488E 1987-09 → — Figure MER037A MER037A 1987-09 → — Figure MEY486 MEY486 1994-12 → — Figure MEP385A MEP385A 1989-10 → — Figure MEU994B MEU994B 1992-12 → —

Part groups

PNCDescription
84989 Switch, Standby Telephone
86070 Mobilephone & Accessory Assy
86269C Grille, Speaker
86282B Bracket, Microphone
86705 Cord Sub-assy, Telephone Antenna
86710 Computer Assy, Telephone
86710A Computer Assy, Telephone
86712 Wire, Telephone
86713 Wire, Telephone Computer
86720 Mobilephone Assy
86722 Cradle, Mobilephone
86723 Wire, Mobilephone
86725 Battery, Mobilephone
86726 Cover, Mobilephone
86729 Bracket, Mobilephone
86730 Microphone Assy, Telephone
86810 Computer Assy, Interphone
86813 Wire, Interphone
86814 Switch, Interphone
86814A Switch, Interphone NO.2
86815 Microphone, Interphone
86816 Speaker Interphone
86821 Handset, Interphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
