Heating & Air Conditioning - Cooler Unit

35 part groups · 3 illustrations

Illustrations

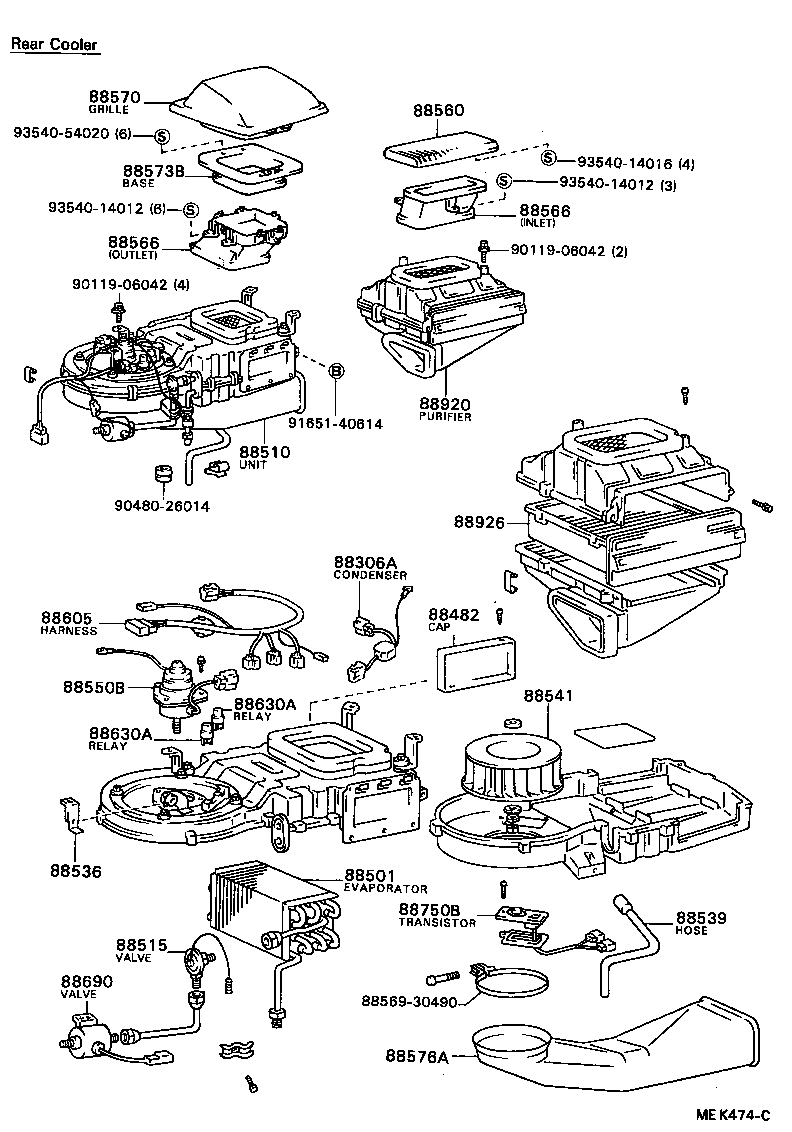

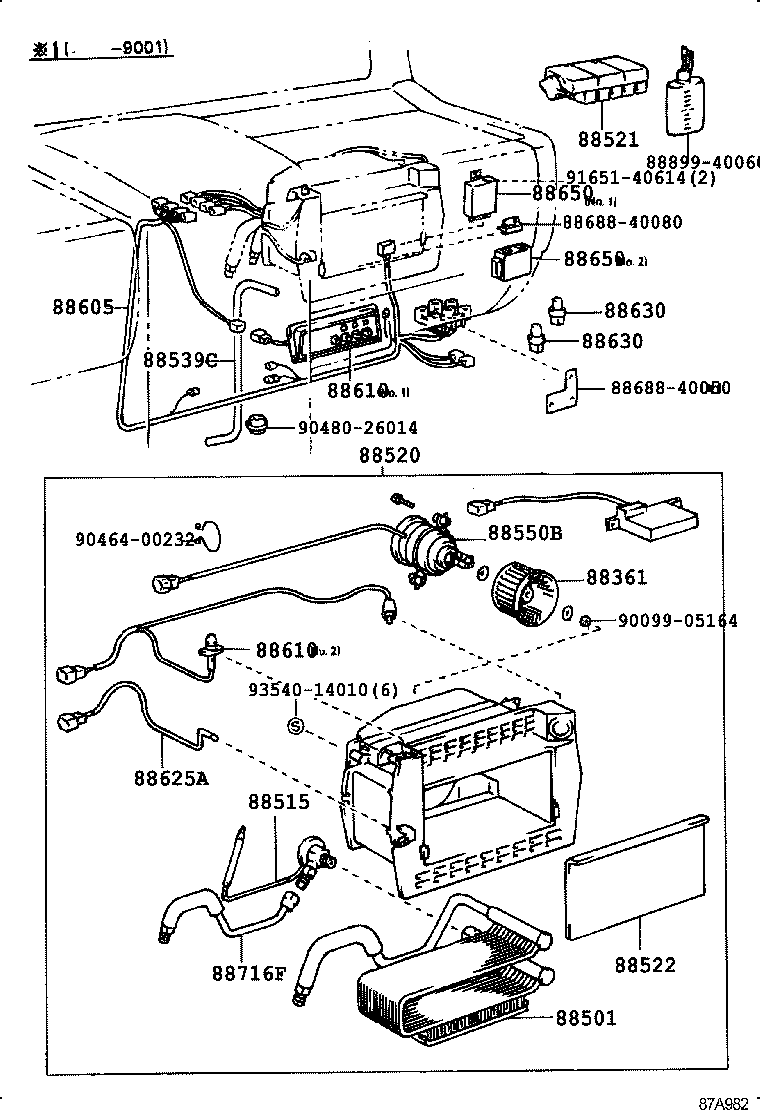

Figure MEK473C MEK473C 1987-09 → — Figure MEK474C MEK474C 1987-09 → — Figure 87A982 87A982 1990-09 → —

Part groups

PNCDescription
87107A Unit Sub-assy, Heater Radiator
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88306A Condenser (FOR BLOWER MOTOR)
88361 Fan, Cooler Blower, NO.1
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88520 Box Assy, Cooling
88521 Case, Cooler Unit
88522 Door, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88541 Fan, Blower
88550B Motor Assy, Blower
88560 Grille Assy, Cooler Air Inlet
88566 Duct, Cooler Air, NO.1
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88576A Filter, Expansion, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88606A Diaphragm Sub-assy, Cooler
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88650 Amplifier Assy, Cooler Stabilizer
88690 Valve Assy, Cooler Magnet
88716F Pipe, Cooler Refrigerant Liquid, F
88750B Transistor Assy, Blower Resistor
88920 Purifier Assy, Air
88926 Filter, Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
