Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

48 part groups · 10 illustrations

Illustrations

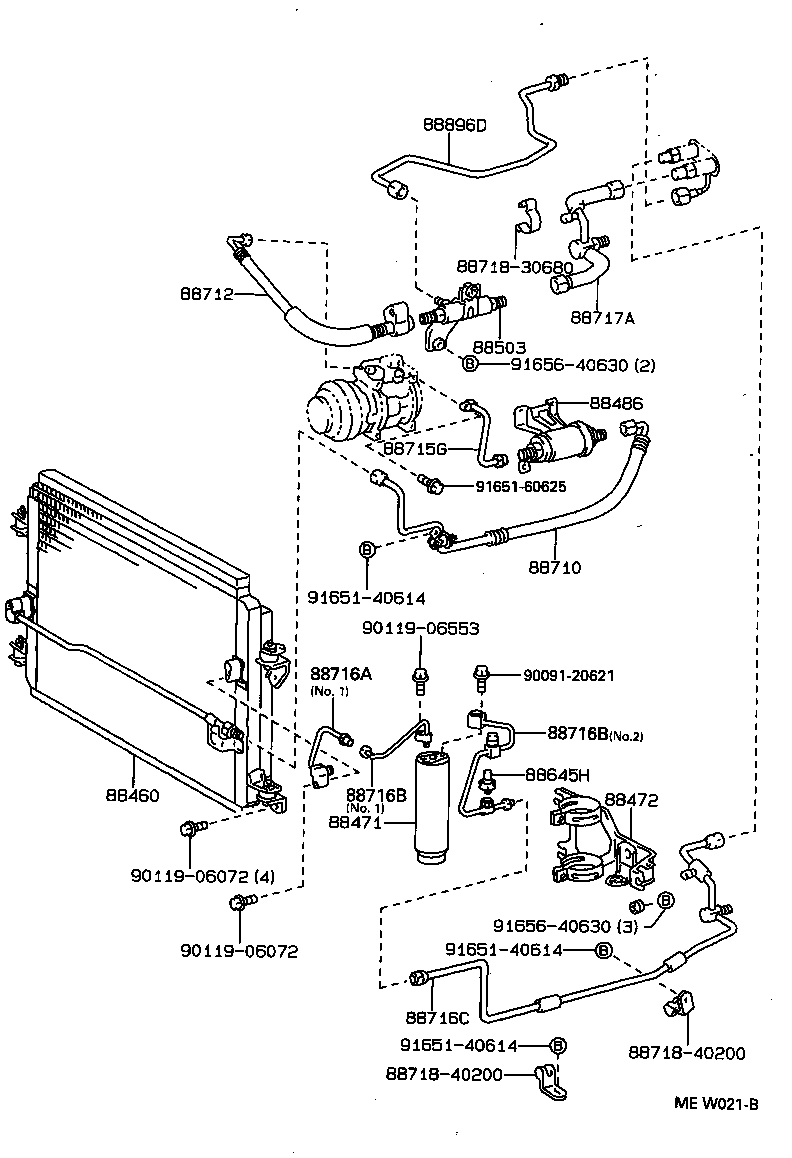

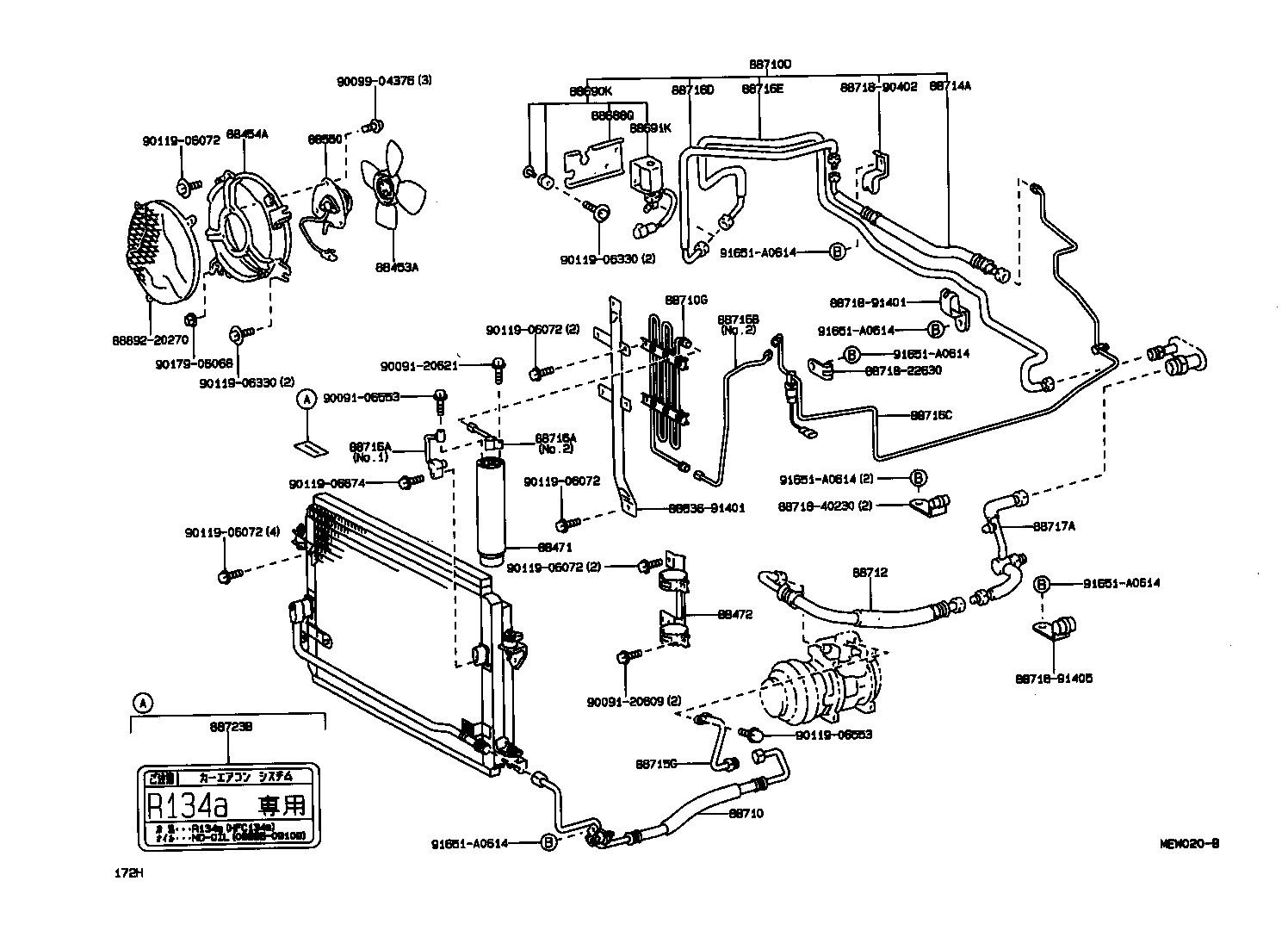

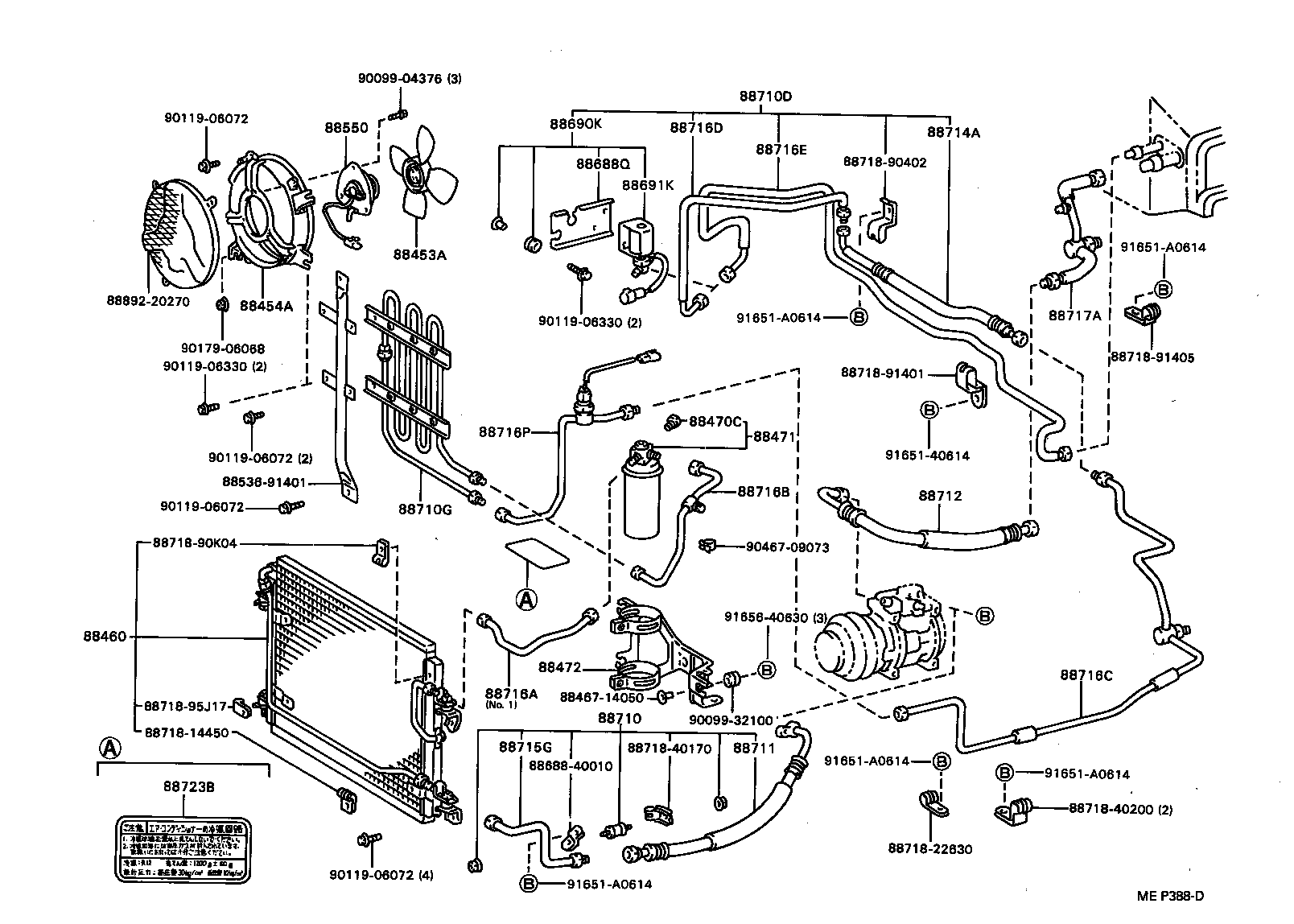

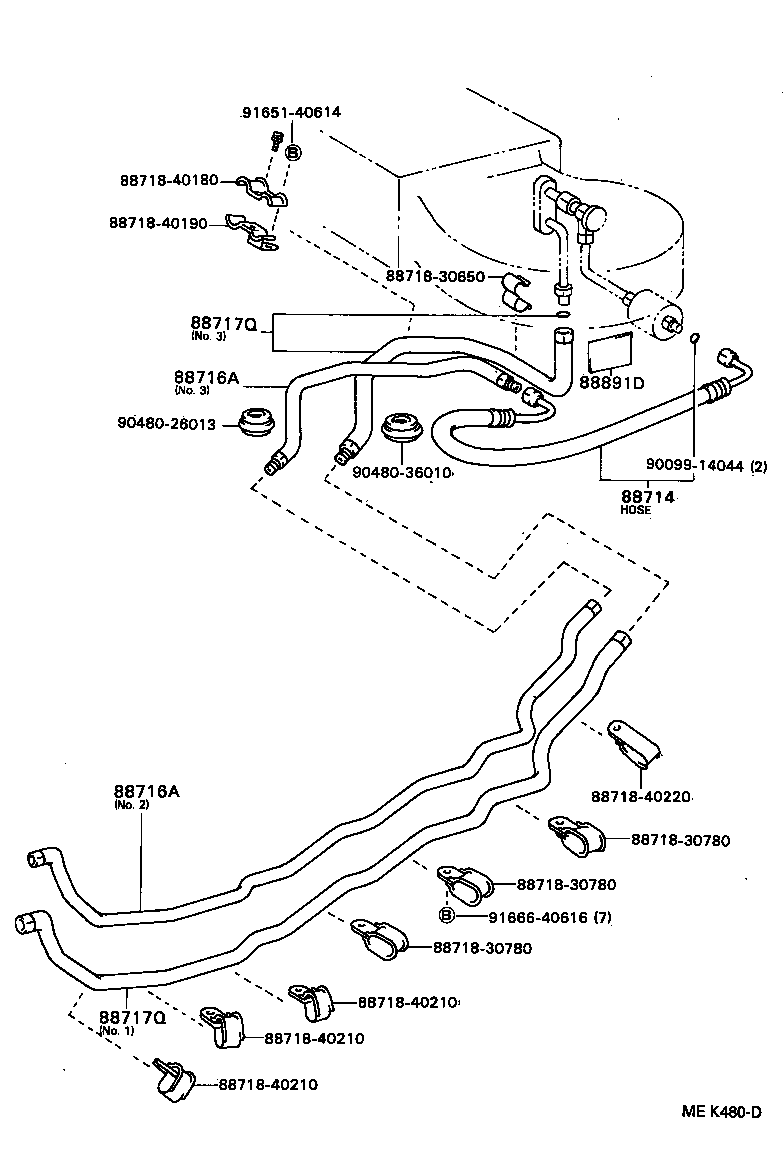

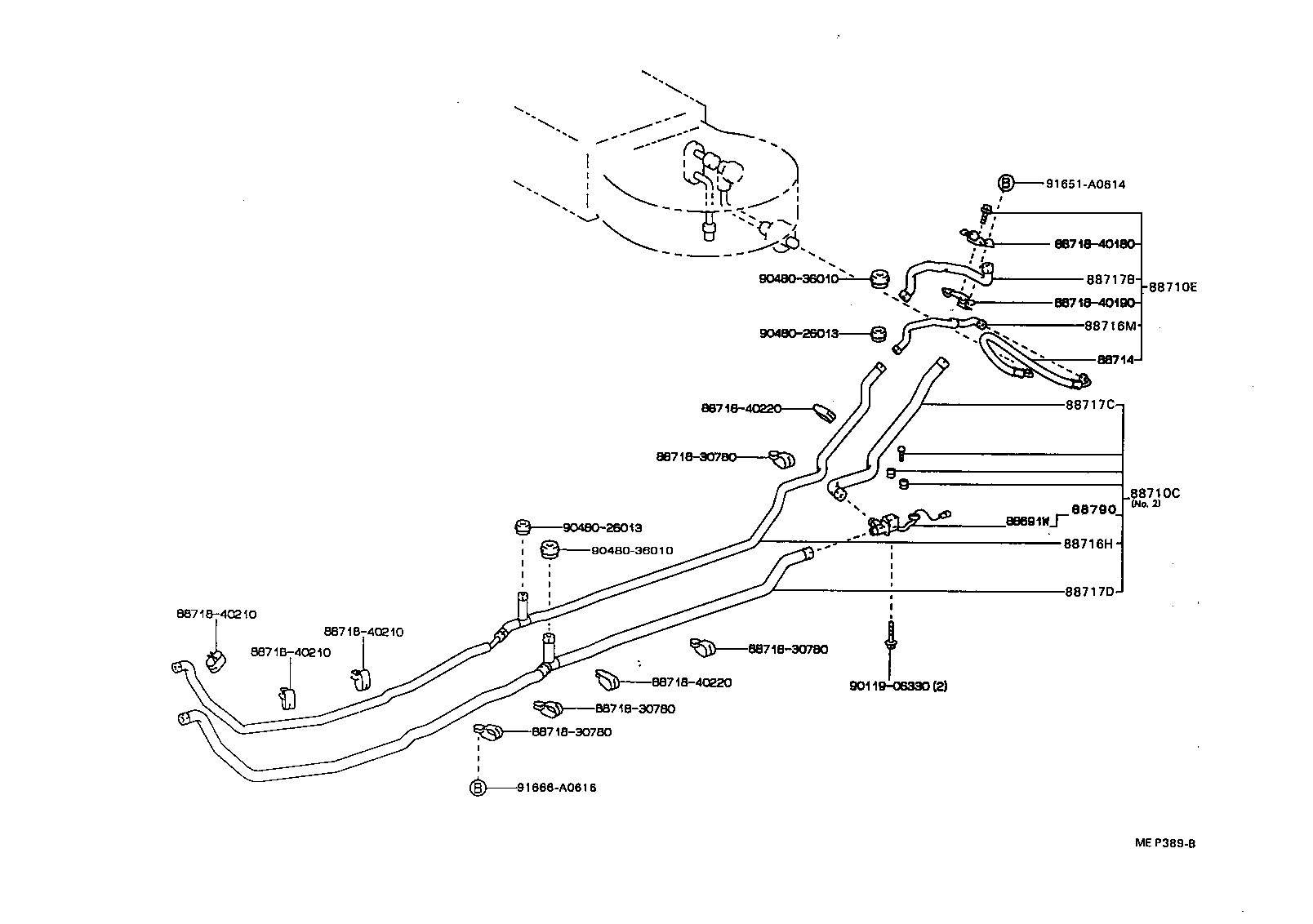

Figure MEK479C MEK479C 1987-09 → 1992-12 Figure MEW021B MEW021B 1992-12 → — Figure MEK480D MEK480D 1987-09 → — Figure MEP388D MEP388D 1989-10 → 1990-09 Figure MEP388D MEP388D 1990-09 → 1992-12 Figure MEW020B MEW020B 1992-12 → — Figure MEP389B MEP389B 1989-10 → 1990-09 Figure MEP389B MEP389B 1990-09 → — Figure MEP390C MEP390C 1989-10 → 1990-09 Figure MEP390C MEP390C 1990-09 → —

Part groups

PNCDescription
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88486 Muffler, Discharge
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88688Q Bracket (FOR MAGNET VALVE)
88690K Valve Assy, Magnet
88691K Valve Assy, Magnet
88691W Valve, Magnet
88691Z Valve, Magnet (COOL BOX)
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714A Hose, Cooler Refrigerant Liquid, NO.2
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717P Pipe, Cooler Refrigerant Suction, P
88717Q Pipe, Cooler Refrigerant Suction, Q
88717S Pipe, Cooler Refrigerant Suction, S
88723B Label, Cooler Service Caution
88725 Sensor, Refrigerant
88790 Valve Assy, Magnet
88891D Packing D (FOR COOLER)
88896D Pipe, Equalizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
