Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

4 part groups · 4 illustrations

Illustrations

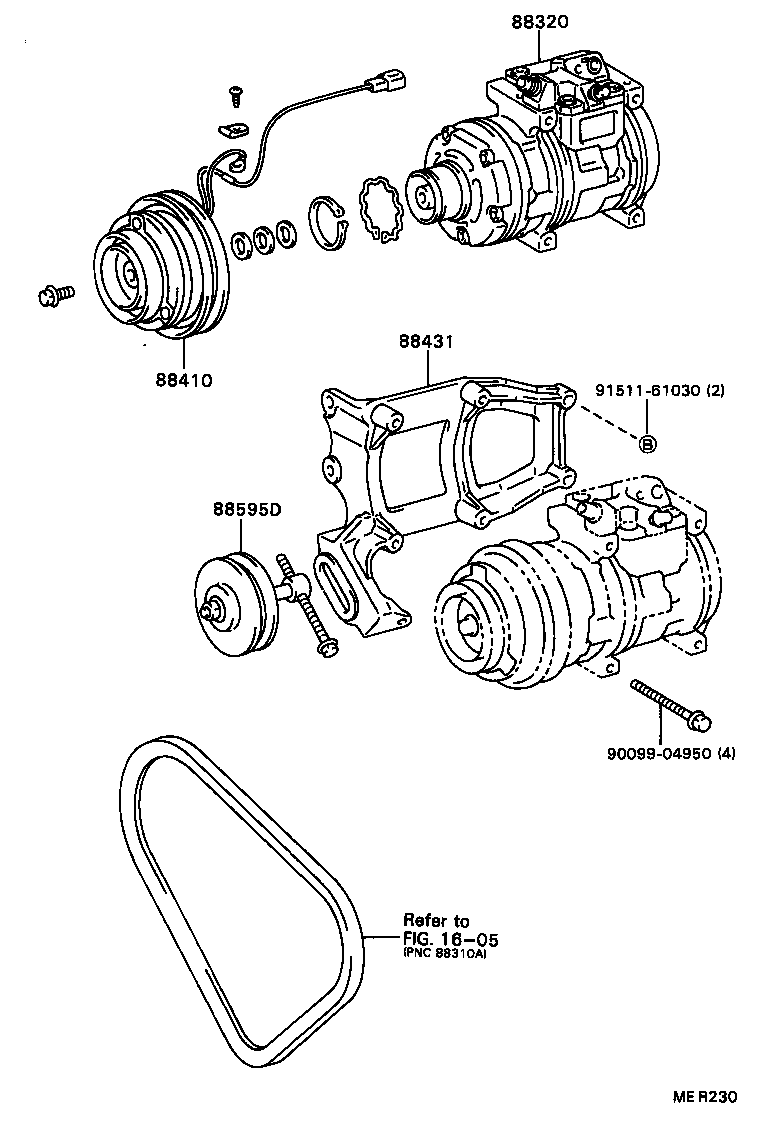

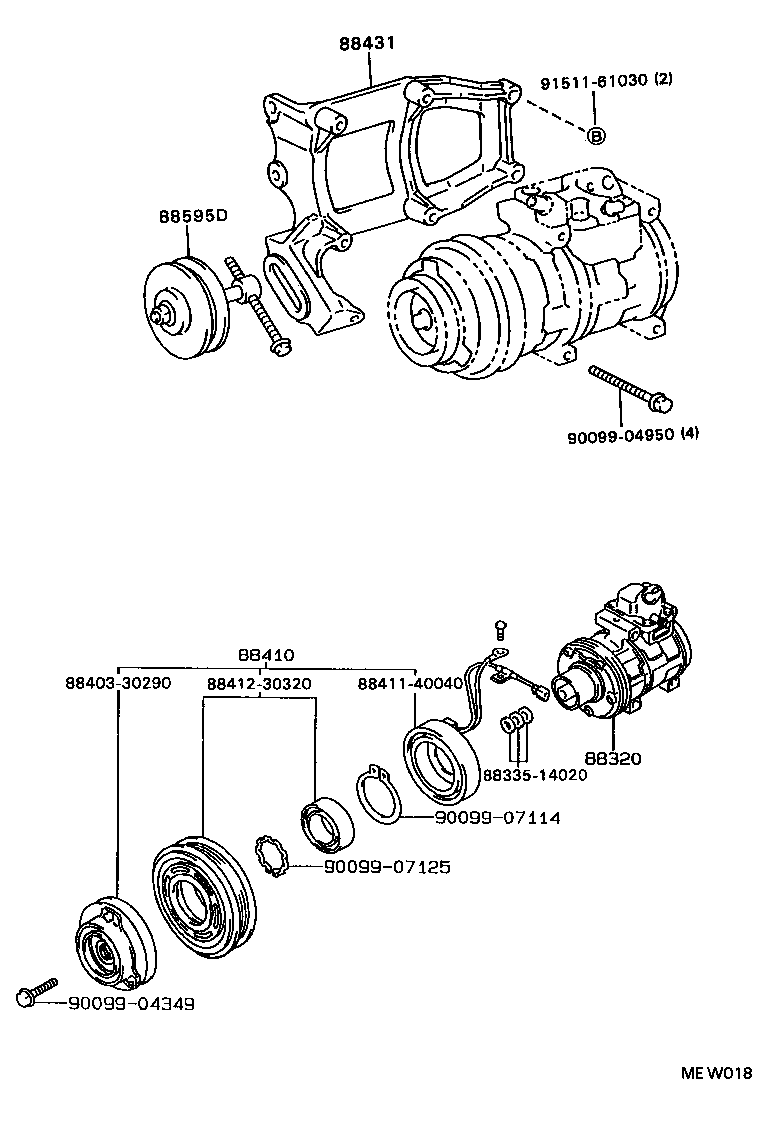

Figure 87E332 87E332 1987-09 → 1992-12 Figure MER230 MER230 1990-09 → 1992-12 Figure MER230 MER230 1992-12 → — Figure MEW018 MEW018 1992-12 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88595D Pulley Assy, Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
