Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

15 part groups · 3 illustrations

Illustrations

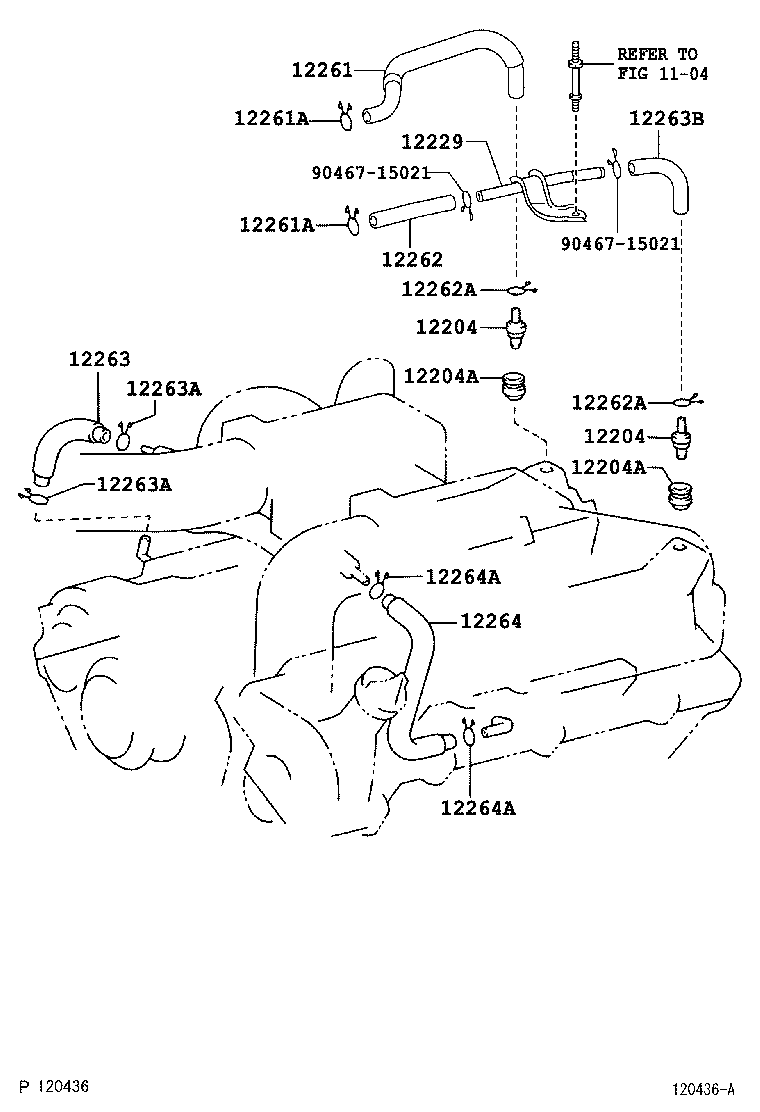

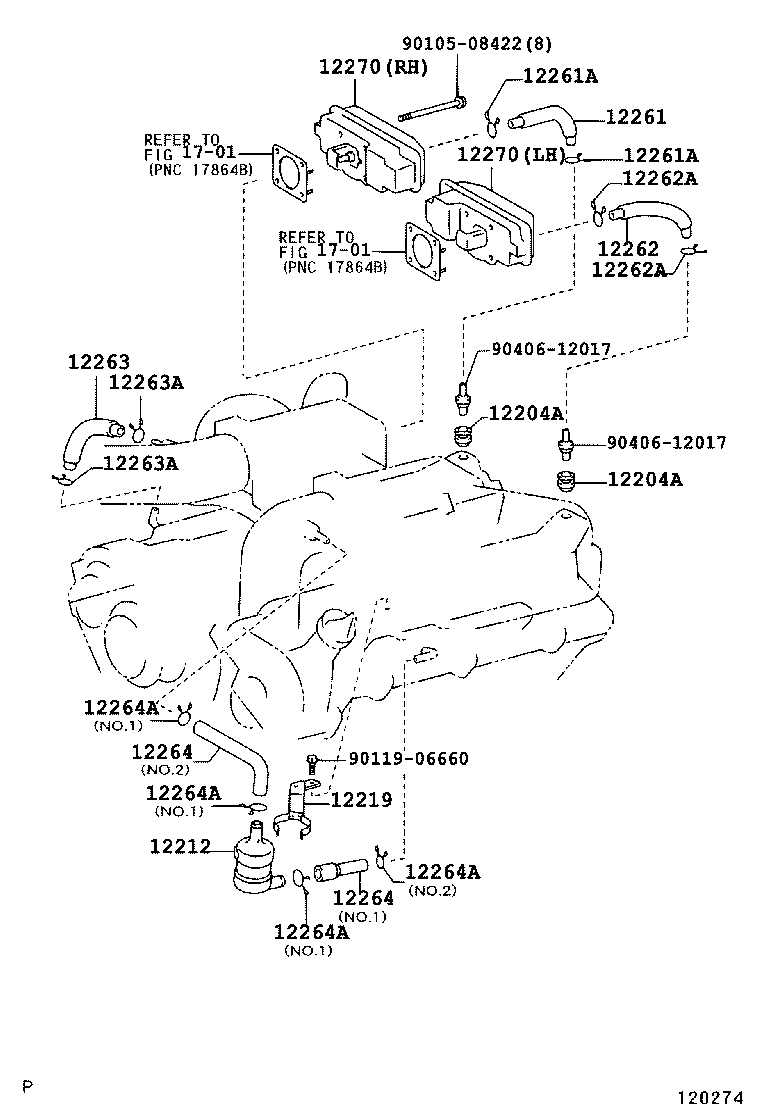

Figure 120030C 120030C 1997-04 → 2005-01 Figure 120274 120274 2003-01 → 2005-01 Figure 120436A 120436A 2005-01 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12212 Case, Ventilation, LH
12219 Bracket, Ventilation Case
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12263B Hose, Ventilation, NO,3
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
