Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

13 part groups · 2 illustrations

Illustrations

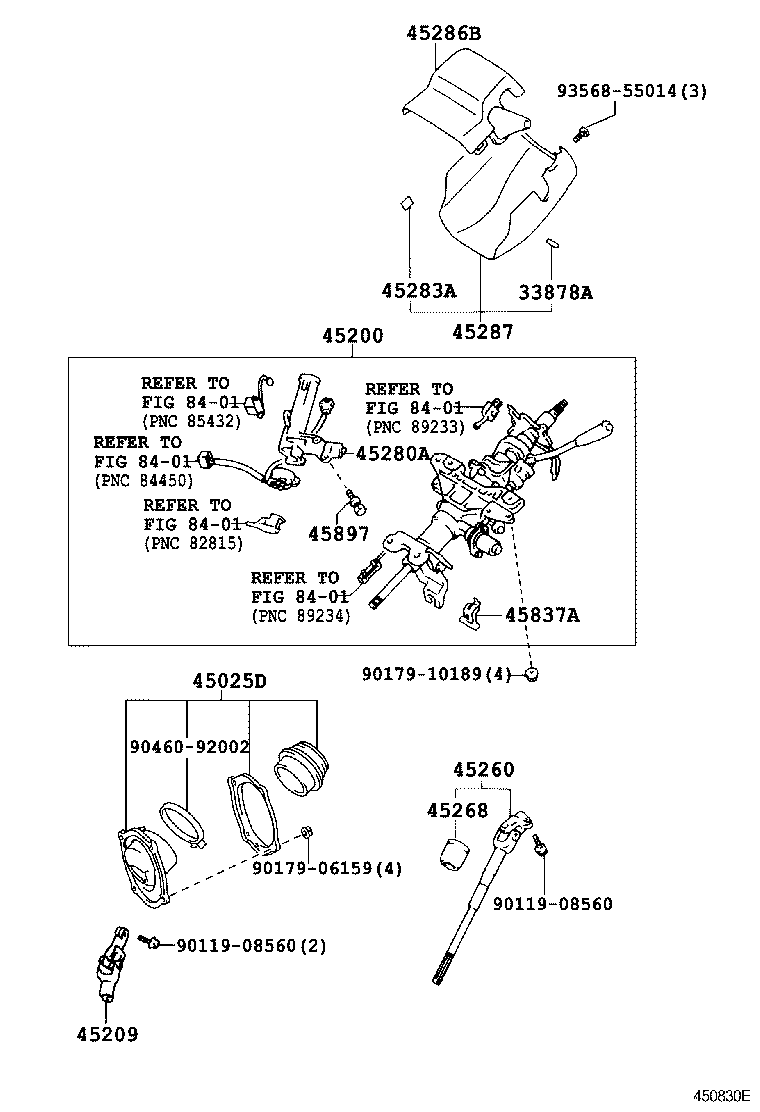

Figure 450831F 450831F 1997-04 → — Figure 450830E 450830E 1997-04 → —

Part groups

PNCDescription
33878A Label, Shift Lock Information, NO.2
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
45209 Yoke Sub-assy, Steering Sliding
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45268 Cover, Steering Inter Shaft Dust Seal
45280A Bracket Assy, Steering Column, Upper
45283A Plate, Beam Change & Turn Signal Caution
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45837A Bracket, Steerlng Lower Tube, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
