Toyota Century
1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan
Discontinued model
Data version 2017-07

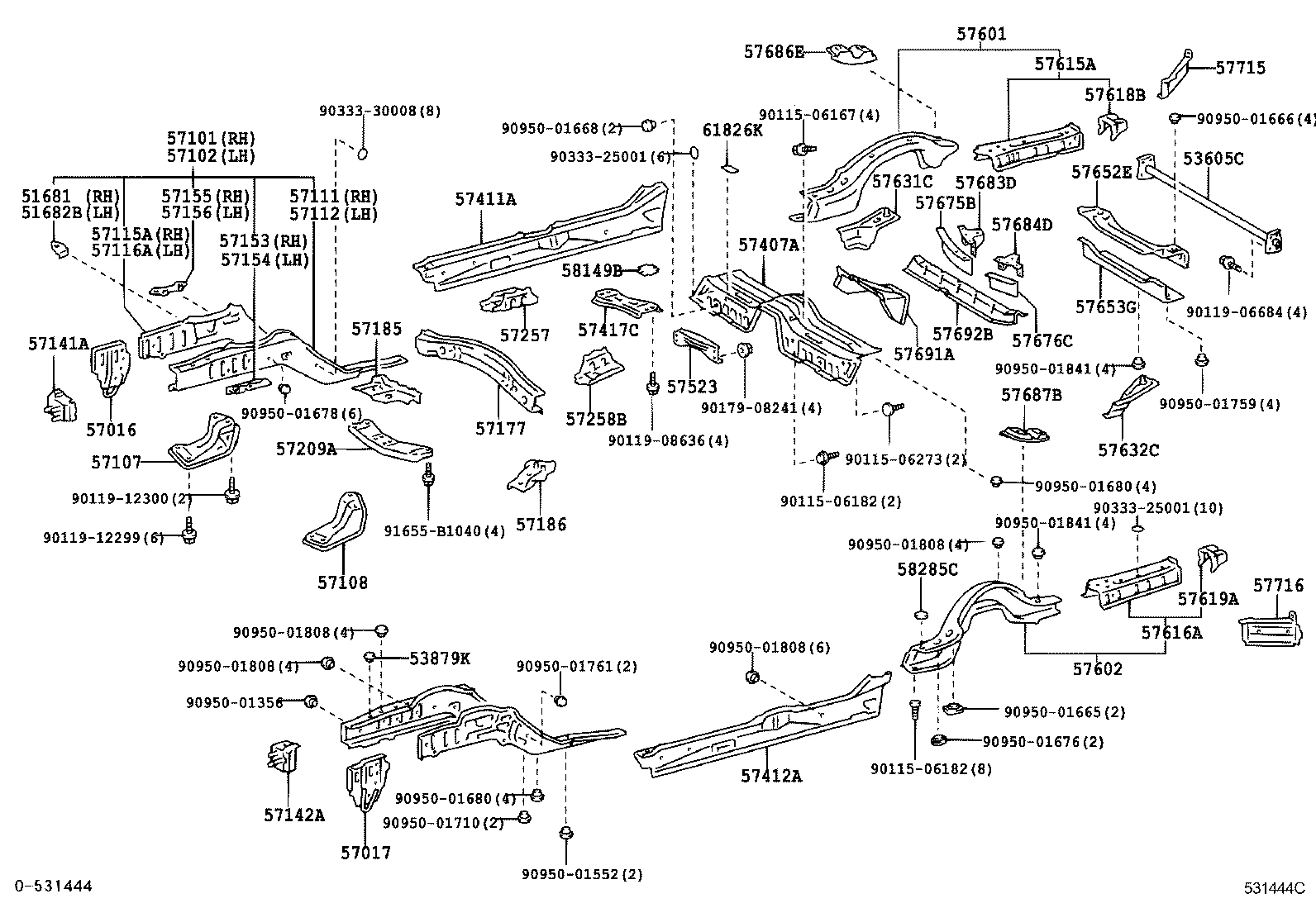

Floor Side Member
57 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51681 | Bracket, Flexible Hose |
| 51682B | Bracket, Flexible Hose, LH |
| 53605C | Brace Sub-assy, Rear Floor Side Member |
| 53879K | Retainer, Front Fender Liner |
| 57016 | Reinforcement Sub-assy, Front Side Member, RH |
| 57017 | Reinforcement Sub-assy, Front Side Member, LH |
| 57101 | Member Sub-assy, Front Side, RH |
| 57102 | Member Sub-assy, Front Side, LH |
| 57107 | Bracket Sub-assy, Strut Bar, RH |
| 57108 | Bracket Sub-assy, Strut Bar, LH |
| 57111 | Member, Front Side, RH |
| 57112 | Member, Front Side, LH |
| 57115A | Plate, Front Side Member, Outer RH |
| 57116A | Plate, Front Side Member, Outer LH |
| 57141A | Support, Front Bumper Arm, RH |
| 57142A | Support, Front Bumper Arm, LH |
| 57153 | Reinforcement, Front Side Member, NO.2 RH |
| 57154 | Reinforcement, Front Side Member, NO.2 LH |
| 57155 | Reinforcement, Front Side Member, NO.3, RH |
| 57156 | Reinforcement, Front Side Member, NO.3, LH |
| 57177 | Crossmember, Front Side Member TO Dash Panel |
| 57185 | Reinforsement, Front Side Member, Rear NO.1 Inner RH |
| 57186 | Reinforcement, Front Side Member, Rear NO.1 Inner LH |
| 57209A | Member Sub-assy, Engine Rear Mounting |
| 57257 | Bracket, Engine Rear Support Member |
| 57258B | Bracket, Engine Rear Mounting Member, LH |
| 57407A | Member Sub-assy, Center Floor Cross |
| 57411A | Member, Floor Side, Inner RH |
| 57412A | Member, Floor Side, Inner LH |
| 57417C | Reinforcement, Front Floor Under |
| 57523 | Brace, Center Floor Crossmember |
| 57601 | Member Sub-assy, Rear Floor Side, RH |
| 57602 | Member Sub-assy, Rear Floor Side, LH |
| 57615A | Member, Rear Floor Side, Rear RH |
| 57616A | Member, Rear Floor Side, Rear LH |
| 57618B | Reinforcement, Rear Bumper Retainer, RH |
| 57619A | Reinforcement, Rear Bumper Retainer, LH |
| 57631C | Extension, Rear Floor Side Member, Front RH |
| 57632C | Extension, Rear Floor Side Member, Front LH |
| 57652E | Member, Rear Floor Cross, NO.1 |
| 57653G | Member, Rear Floor Cross, NO.2 |
| 57667A | Reinforcement, Rear Floor Crossmember, NO.4 |
| 57675B | Reinforcement, Rear Floor Cross, NO.1 RH |
| 57676C | Reinforcement, Rear Floor Cross, NO.1 LH |
| 57683D | Bracket, Fuel Tank Mounting, NO.1 |
| 57684D | Bracket, Fuel Tank Mounting, NO.2 |
| 57686E | Bracket, Fuel Tank Mounting, Rear RH |
| 57687B | Bracket, Fuel Tank Mounting, Rear LH |
| 57691A | Bracket, Fuel Tank Mounting, Front Center |
| 57692B | Bracket, Fuel Tank Mounting, Rear Center |
| 57705E | Bracket Sub-assy, Rear Suspenshion Member Mounting, RR RH |
| 57706C | Bracket Sub-assy, Rear Suspension Member Mounting, RR LH |
| 57715 | Reinforcement, Rear Bumper Stay, RH |
| 57716 | Reinforcement, Rear Bumper Stay, LH |
| 58149B | Plate, Front Floor Reinforce Nut |
| 58285C | Cover, Rear Floor Hole |
| 61826K | Plate, Noise Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
