Toyota Century
1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan
Discontinued model
Data version 2017-07

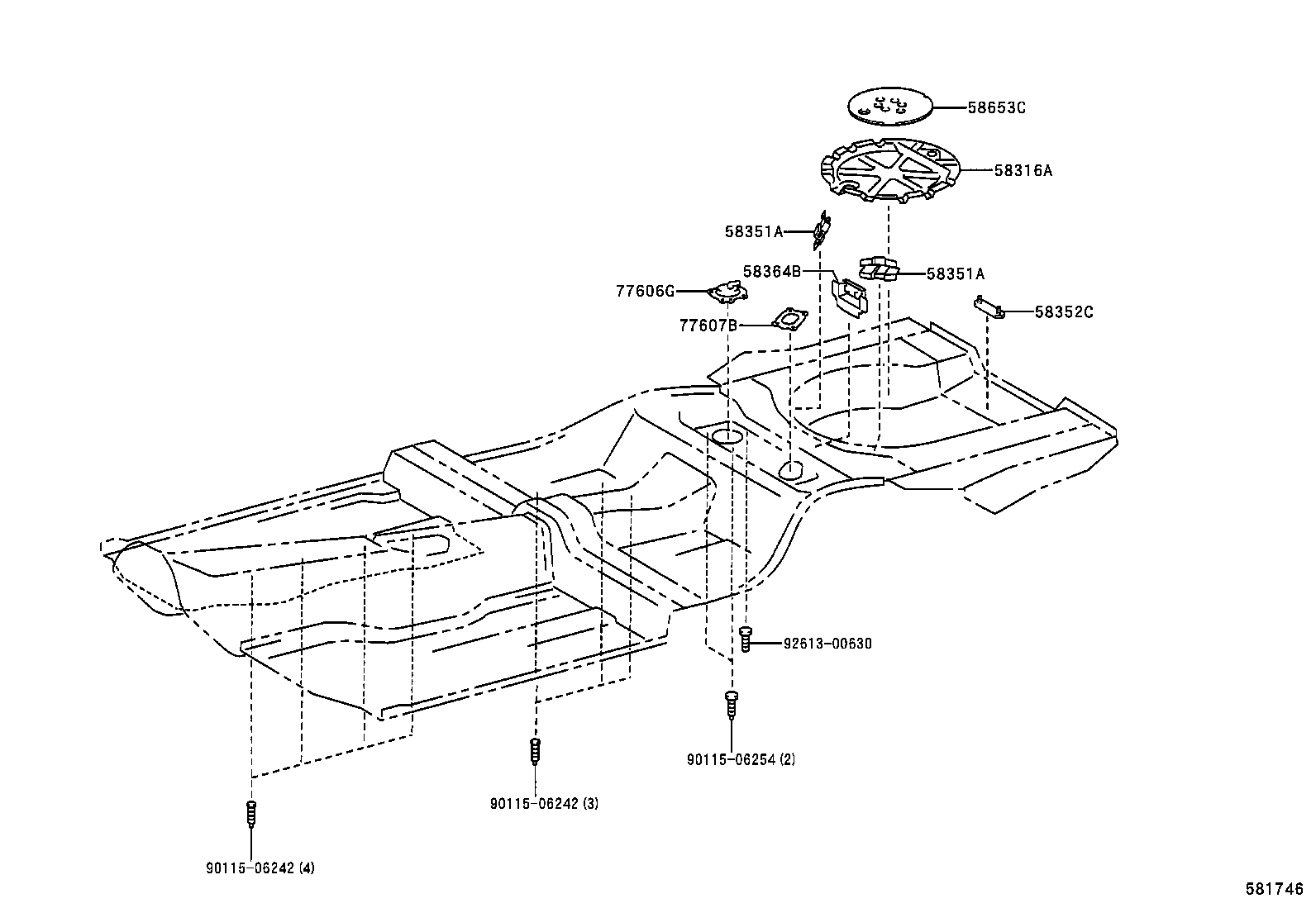

Floor Pan & Lower Back Panel
74 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55149B | Bracket, Junction Block |
| 55362A | Bracket, Parking Brake Mounting |
| 55386A | Bracket, Computer Mounting, NO.1 |
| 57423 | Bracket, Front Floor Reinforcement, RH |
| 57424 | Bracket, Front Floor Reinforcement, LH |
| 57425B | Reinforcement, Front Floor, NO.2 RH |
| 57426B | Reinforcement, Front Floor, NO.2 LH |
| 57427C | Reinforcement, Front Floor, Upper |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57453C | Member, Front Floor Cross Side, RH |
| 57454B | Member, Front Floor Cross Side, LH |
| 57455C | Bracket, Front Seat Mounting, Outside RH |
| 57456B | Bracket, Front Seat Mounting, Outside LH |
| 57458 | Member, Front Floor Cross, NO.1 |
| 57459A | Member, Front Floor Cross, NO.2 |
| 57465A | Gusset, Center Floor Crossmember, RH |
| 57465B | Bracket, Front Seat, Inner |
| 57468A | Bracket, Front Seat, Outside, Rear RH |
| 57469A | Bracket, Front Seat, Outside, Rear LH |
| 57661D | Member, Rear Floor Cross, Front |
| 57671E | Bracket, Rear Seatback Hinge Mounting, RH |
| 57672D | Bracket, Rear Seatback Hinge Mounting, LH |
| 57683A | Bracket, Fuel Tank Mounting, NO.1 |
| 57684A | Bracket, Fuel Tank Mounting, NO.2 |
| 57805B | Reinforcement Sub-assy, Belt Anchor, RH |
| 57806 | Reinforcement Sub-assy, Belt Anchor, LH |
| 58103B | Bracket Sub-assy, Front Seat Mounting, Inner RH |
| 58104B | Bracket Sub-assy, Front Seat Mounting, Inside, LH |
| 58111A | Pan, Front Floor, RH |
| 58112A | Panel, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58136 | Cover, Front Floor Hole |
| 58163A | Retainer, Console Box Mounting, NO.1 |
| 58164A | Retainer, Console Box Mounting |
| 58172 | Bracket, Computer Mounting, NO.3 |
| 58172D | Bracket, Computer Mounting, NO.4 |
| 58208 | Pan, Center Floor |
| 58209A | Reinforcement Sub-assy, Drive Shaft Center Support |
| 58239A | Plate, Belt Anchor Nut |
| 58253D | Bracket, Parking Brake Cable |
| 58257A | Clamp, Parking Brake Cable, NO.2 |
| 58261A | Cover, Transmission |
| 58261E | Cover, Transmission |
| 58269A | Bracket, Parking Brake Cable Guide, NO.3 |
| 58273A | Reinforcement, Belt Anchor TO Center Floor, RH |
| 58285E | Cover, Center Floor Hole |
| 58292B | Reinforcement, Fuel Filter Mounting |
| 58298D | Reinforcement, Seat Belt Anchor Floor, RH |
| 58299B | Reinforcement, Seat Belt Anchor Floor, LH |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58312 | Panel, Rear Body Floor, NO.1 |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58316A | Extension, Rear Floor Side Panel, Rear RH |
| 58351A | Bracket, Spare Wheel Carrier |
| 58352C | Reinforcement, Rear Floor Panel, NO.2 |
| 58364B | Bracket, Fuel Tank Support |
| 58365A | Bracket, Fuel Tank Support, RH |
| 58366A | Bracket, Fuel Tank Support, LH |
| 58385H | Bracket, Rear Bumper Cover, NO.1 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58398H | Cover, Floor Under, NO.1 |
| 58653C | Sheet, Rear Floor Silencer, NO.2 |
| 58683A | Panel, Center Floor Silencer, RH |
| 58684A | Panel, Center Floor Silencer, LH |
| 58791B | Carrier, Jack |
| 61826E | Plate, Noise Control, NO.3 |
| 75121A | Bracket, Rear License Plate |
| 77606G | Case Sub-assy, Fuel Tank Cover Vent |
| 77607B | Case Sub-assy, Fuel Tank Cover Vent, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
