Toyota Century
1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan
Discontinued model
Data version 2017-07

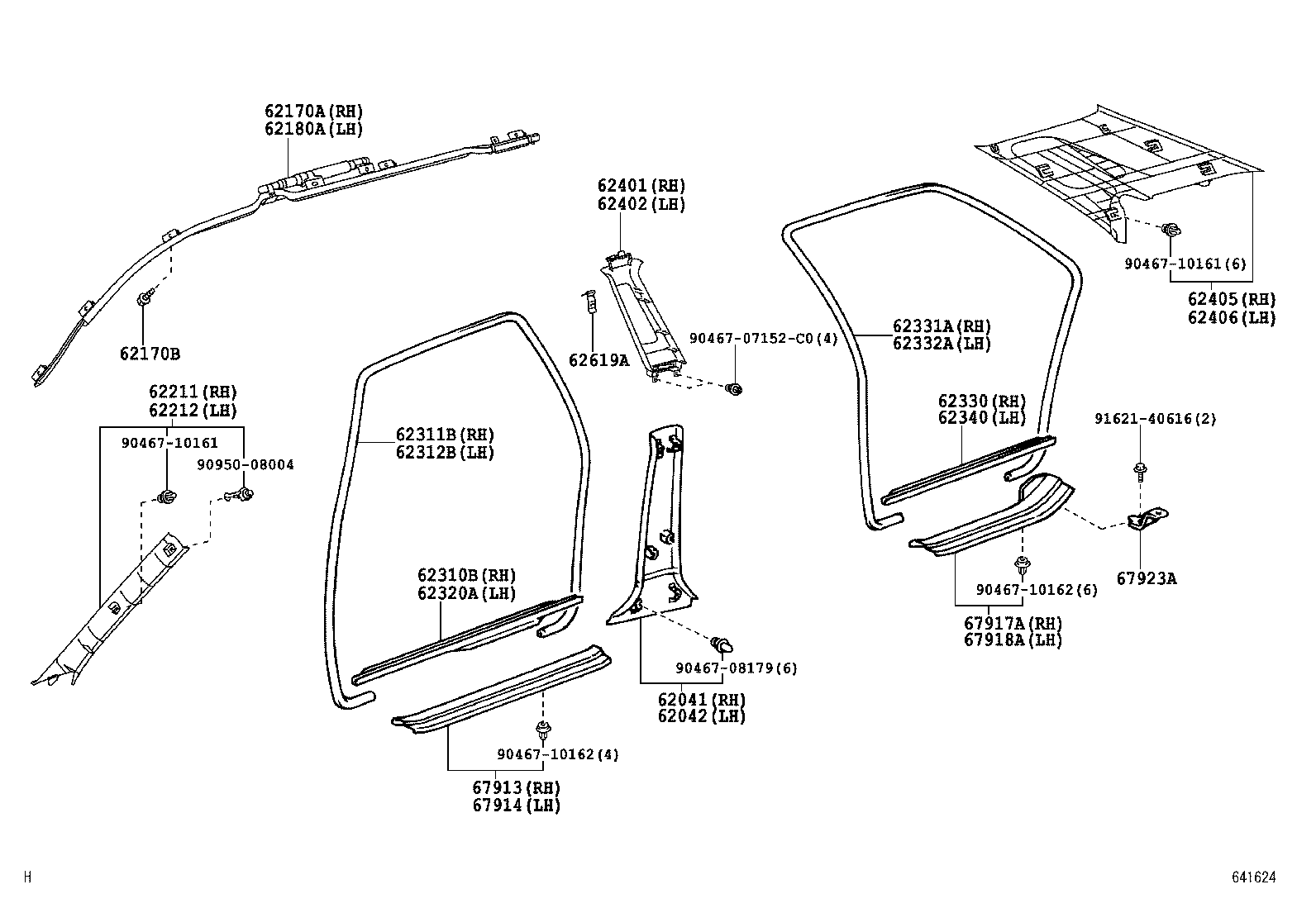

Inside Trim Board & Door Opening Trim Moulding
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62041 | Panel Sub-assy, Center Pillar Garnish, Lower RH |
| 62042 | Panel Sub-assy, Center Pillar Garnish, Lower LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310B | Weatherstrip Assy, Front Door Opening Trim, RH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62320A | Weatherstrip Assy, Front Door Opening Trim, LH |
| 62330 | Weatherstrip Assy, Rear Door Opening Trim, RH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62340 | Weatherstrip Assy, Rear Door Opening Trim, LH |
| 62401 | Panel Sub-assy, Center Pillar Garnish, Upper RH |
| 62402 | Panel Sub-assy, Center Pillar Garnish, Upper LH |
| 62403A | Garnish Sub-assy, Roof Side Rail, RH |
| 62404A | Garnish Sub-assy, Roof Side Rail, LH |
| 62405 | Garnish Sub-assy, Roof Side, Inner RH |
| 62406 | Garnish Sub-assy, Roof Side, Inner LH |
| 62619A | Plate, Side Trim Set |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 67923A | Clamp, Door Scuff Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
