Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 2 illustrations

Illustrations

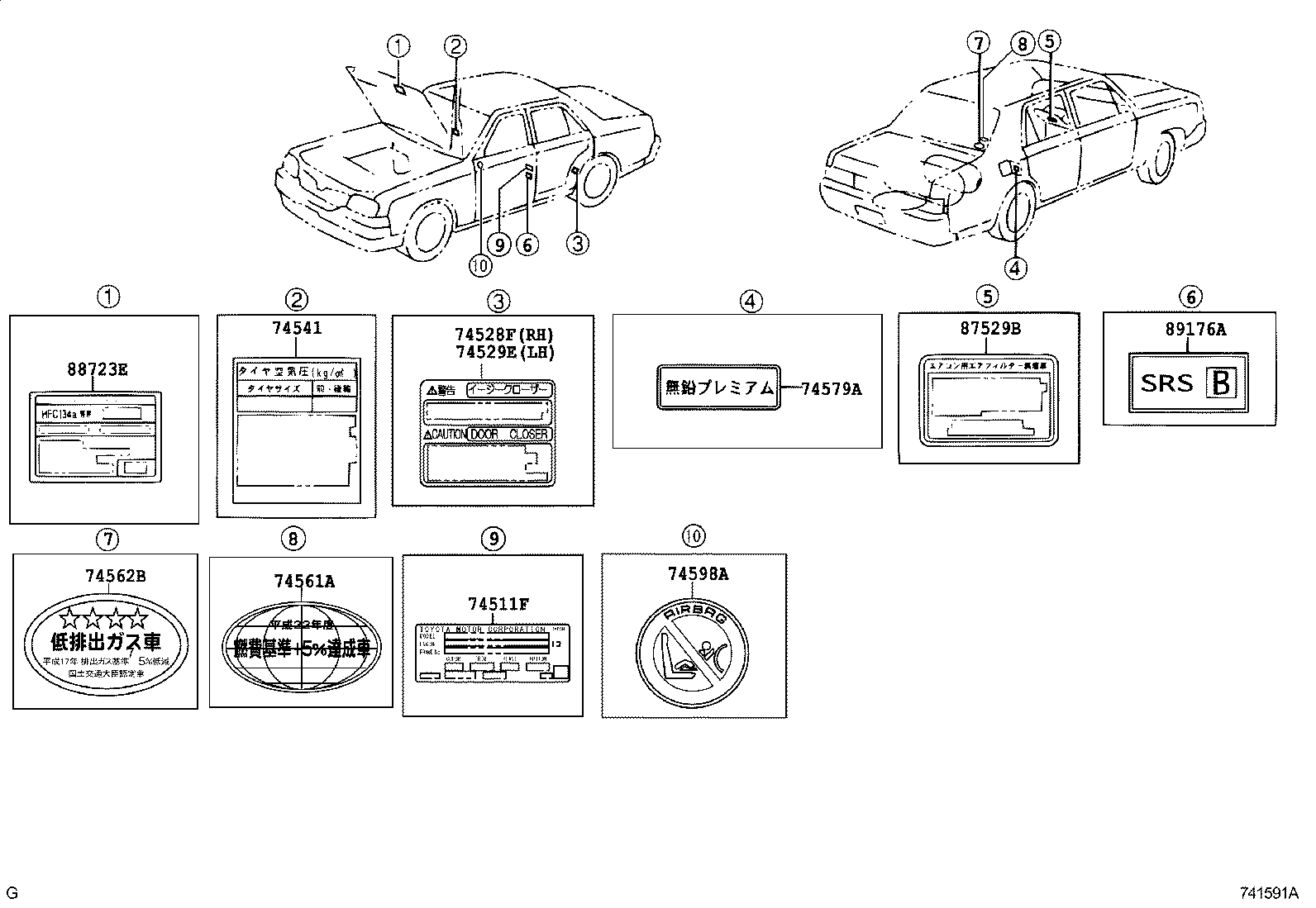

Figure 740156K 740156K 1997-04 → 2005-01 Figure 741591A 741591A 2005-01 → —

Part groups

PNCDescription
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74528F Label, Door Closer Caution, RH
74529E Label, Door Closer Caution, LH
74538B Label, Fuel Tank System Caution
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74543P Label, Rear Seat Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74563 Plate, Emission Control Device Identification
74571A Film, Label Cover
74571B Film, Label Cover
74579A Label, Unleaded Fuel Information
74598A Label, Passenger Airbag Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
