Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

125 part groups · 6 illustrations

Illustrations

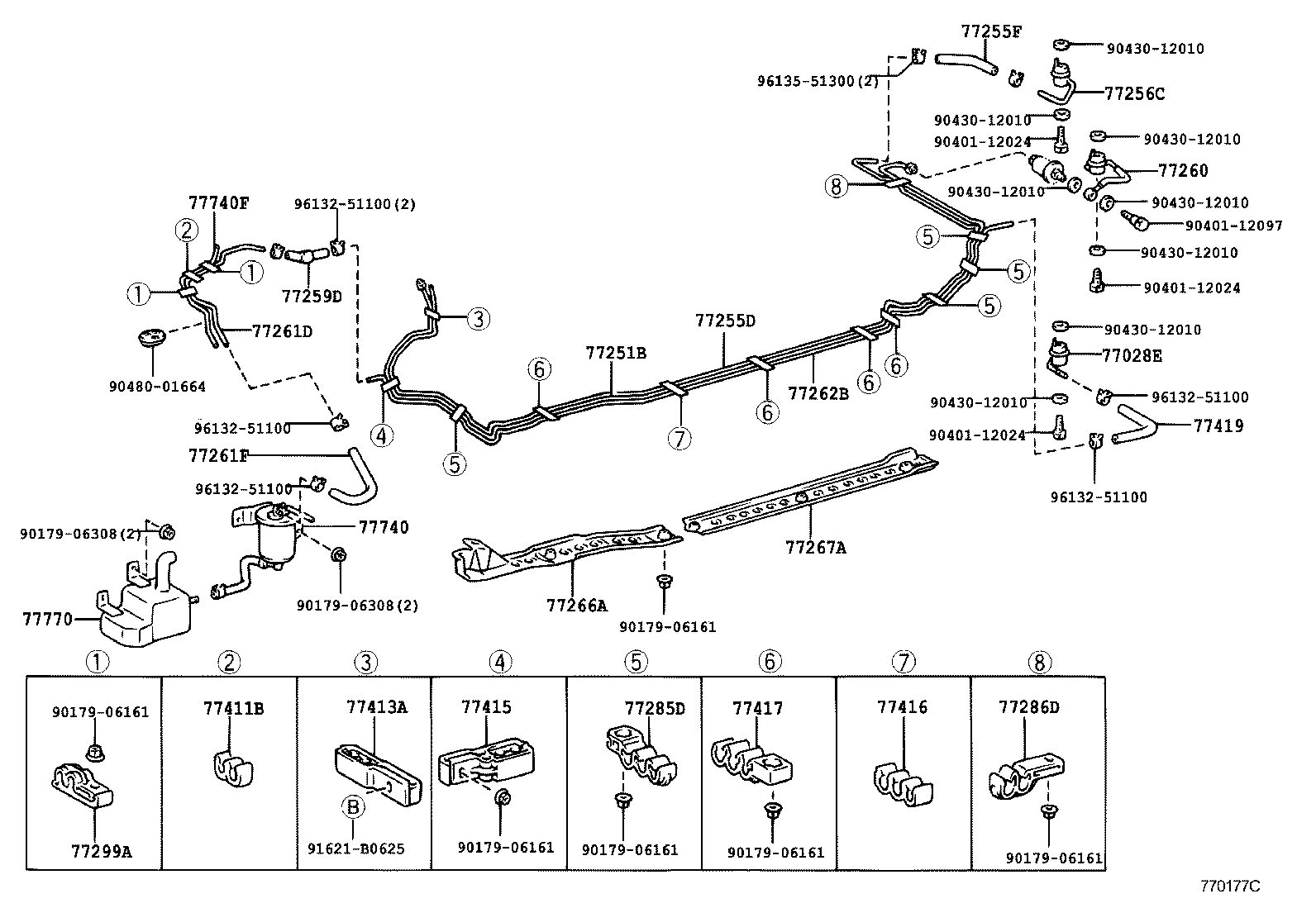

770176N 1997-04 → —

770177E 1997-04 → 2000-04

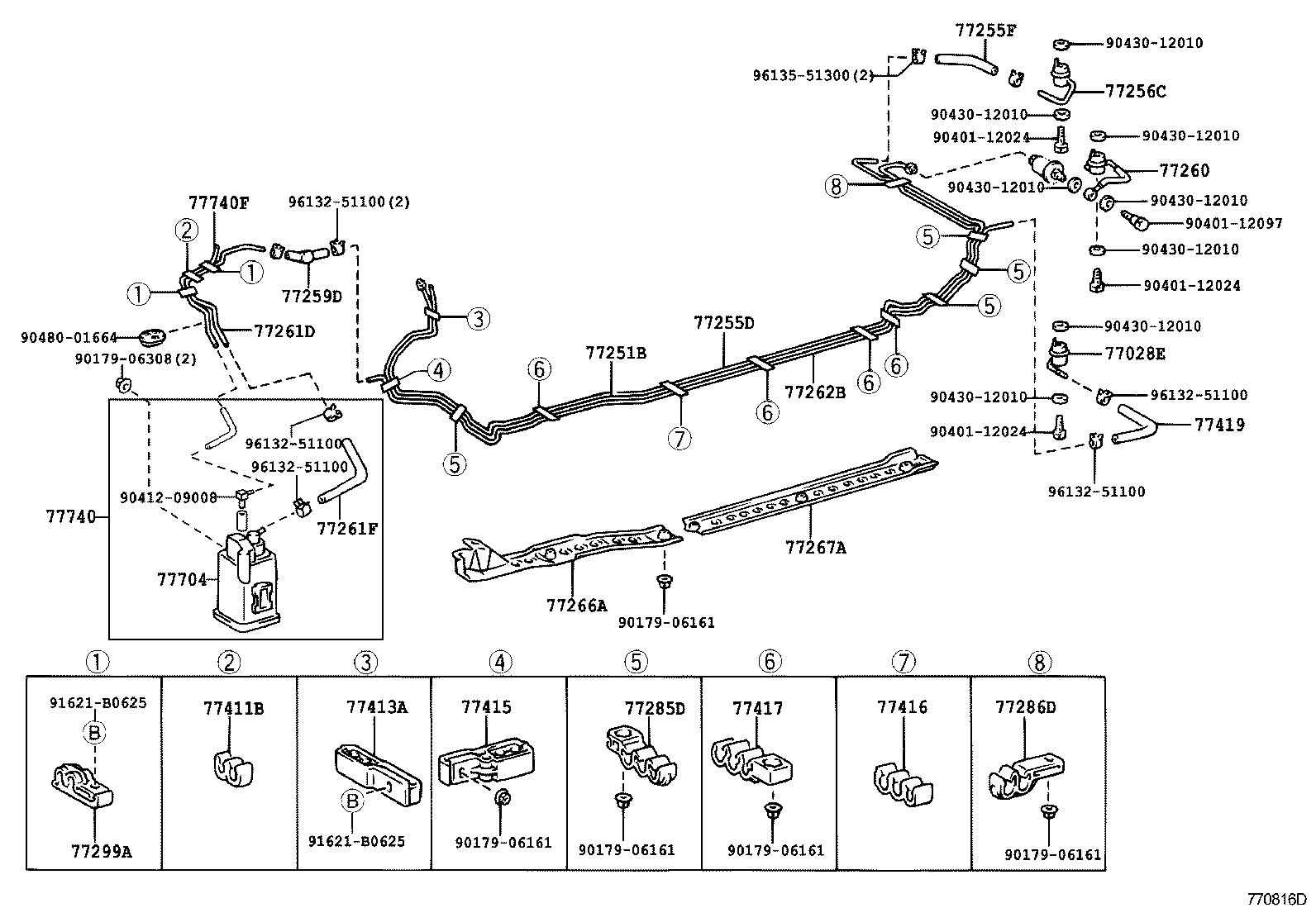

770816D 2000-04 → —

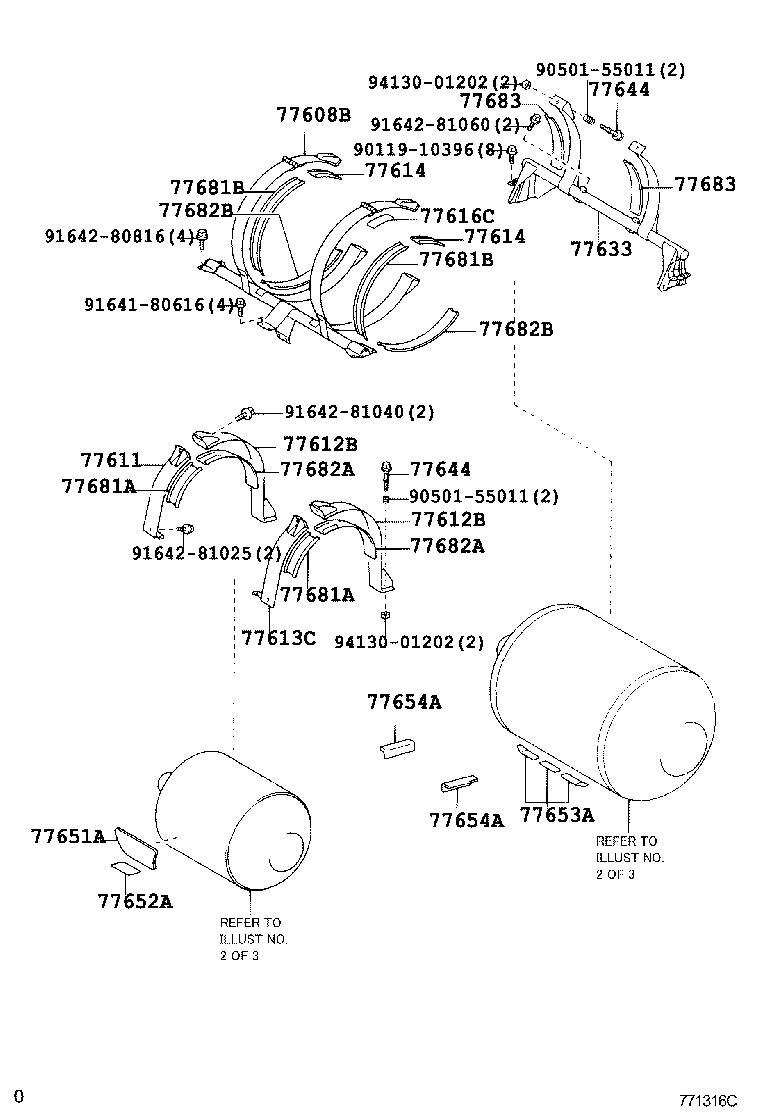

771316C 2003-01 → 2005-01

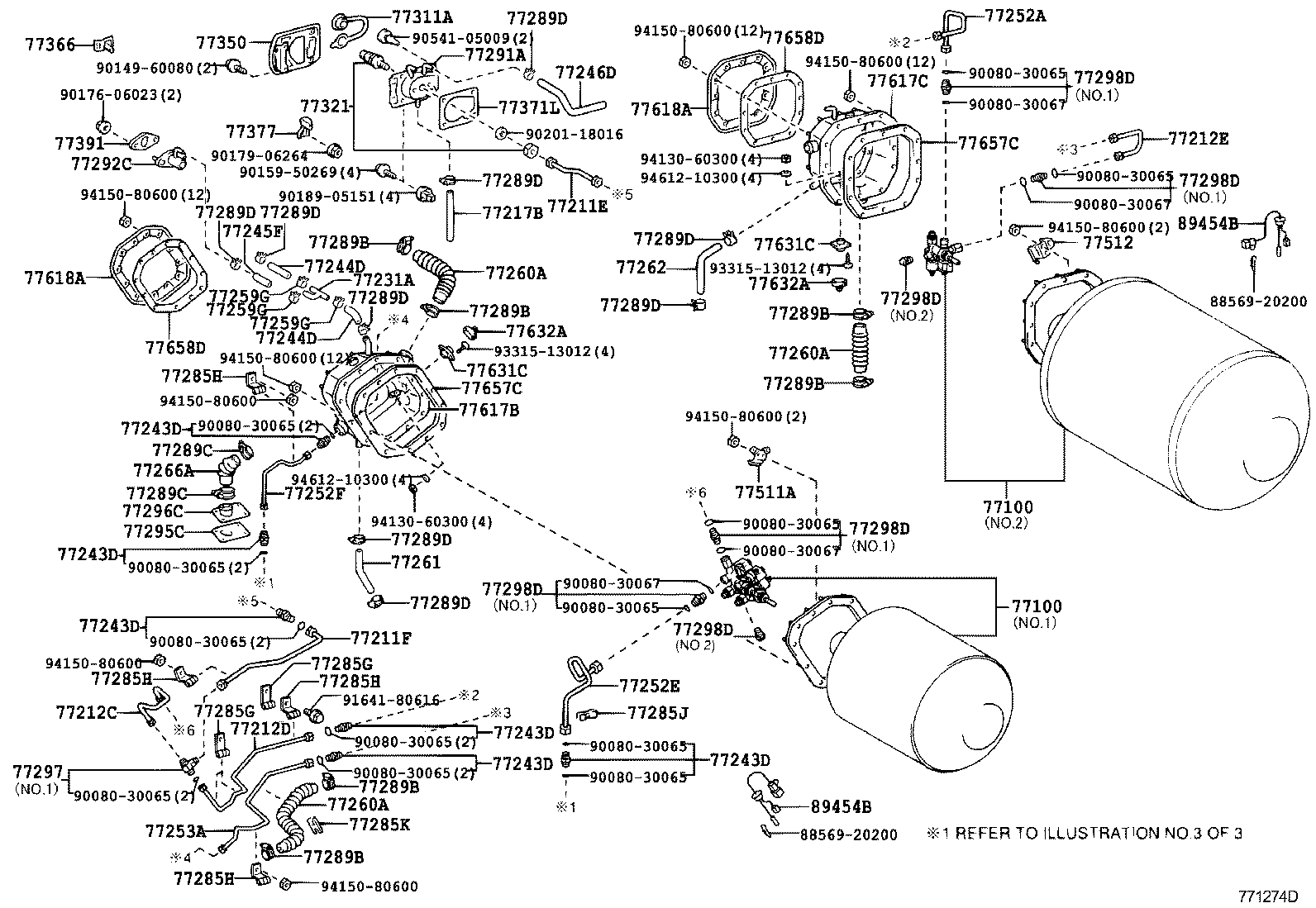

771274D 2003-01 → 2005-01

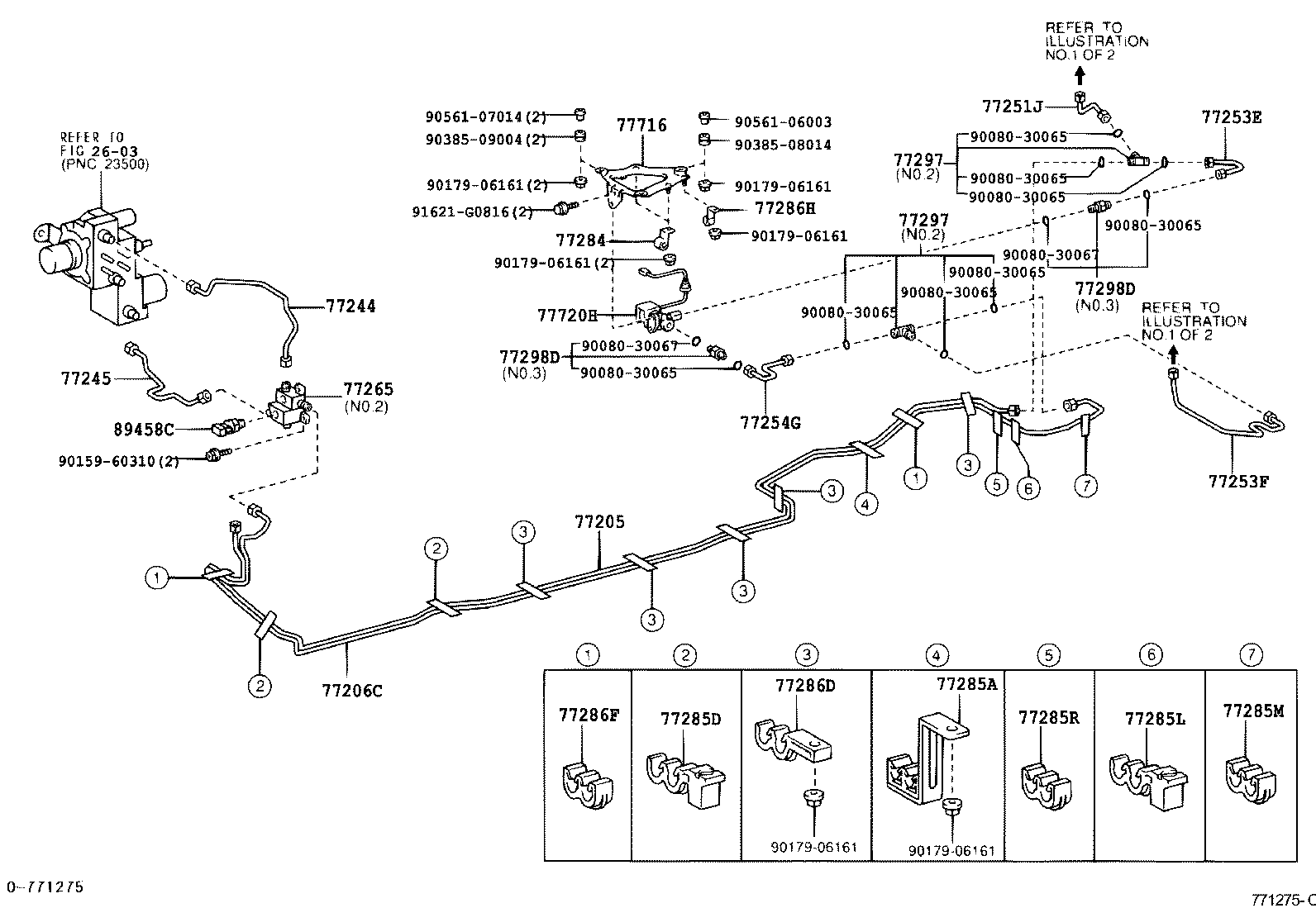

771275C 2003-01 → 2005-01

Part groups

PNC	Description
23239A	Hose
23249A	Rubber, Cushion(FOR FUEL PUMP)
77028E	Tube Sub-assy, Fuel Tank TO Canister, Rear
77100	Tank Assy, Fuel
77169A	Gasket, Fuel Suction Tube Set
77178	Gasket, Fuel Tank Filler Pipe, Lower
77179B	Gasket, Fuel Tank Evaporation Vent Tube
77201E	Pipe Sub-assy, Fuel Tank Filler
77203A	Tube Sub-assy, Fuel Suction
77205	Tube Sub-assy, Fuel Main
77206C	Tube Sub-assy, Fuel Main, NO.2
77211E	Tube, Fuel Tank Filler, NO.1
77211F	Tube, Fuel Tank Filler, NO.1
77212C	Tube, Fuel Tank Filler, NO.2
77212D	Tube, Fuel Tank Filler, NO.2
77212E	Tube, Fuel Tank Filler, NO.2
77217B	Hose, Fuel Tank Inlet
77231A	Connector, Fuel Tank Breather Tube
77240	Tube Assy, Fuel Suction
77243D	Joint, Fuel Tube, NO.1
77244	Tube, Fuel Main, NO.4
77244D	Tube, Fuel Evaporation Breather, NO.1
77245	Tube, Fuel Main, NO.5
77245F	Tube, Fuel Evaporation Breather, NO.2
77246D	Tube, Fuel Evaporation Breather, NO.3
77251B	Tube, Fuel Main
77251J	Tube, Fuel Main, NO.1
77252A	Tube, Fuel Main, NO.2
77252E	Tube, Fuel Main, NO.2 (FOR FRONT FUEL MAIN)
77252F	Tube, Fuel Main, Rear
77253A	Tube, Fuel Main, NO.3
77253E	Tube, Fuel Main, NO.2
77253F	Tube, Fuel Main, NO.3
77254G	Tube, Fuel Main, NO.4
77255D	Tube, Fuel Return
77255F	Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C	Tube, Fuel Return, NO.2
77259D	Hose, Fuel, NO.1
77259G	Clip, Fuel Hose
77260	Hose Assy, Fuel Main
77260A	Duct Assy, Fuel Tank Valve Cover
77261	Tube Sub-assy, Fuel Emission
77261D	Tube, Fuel Tank TO Canister
77261F	Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77262	Tube, Fuel Emission, NO.2
77262B	Tube, Fuel Tank TO Canister, NO.2
77265	Connector, Fuel Main Tube
77266A	Protector, Fuel Tube, NO.1
77267A	Protector, Fuel Tube, NO.2
77284	Clamp, Fuel Tube
77285A	Support, Fuel Return And Main Tube
77285D	Clamp, Fuel Tube, NO.1
77285G	Clamp, Fuel Tube, NO.1
77285H	Clamp, Fuel Tube, NO.1
77285J	Clamp, Fuel Tube, NO.1
77285K	Clamp, Fuel Tube, NO.1
77285L	Clamp, Fuel Tube, NO.1
77285M	Clamp, Fuel Tube, NO.1
77285R	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77286H	Clamp, Fuel Tube, NO.3
77289B	Clamp, Fuel Tube, NO.3
77289C	Clamp, Fuel Tube, NO.4
77289D	Clamp, Fuel Tube, NO.5
77290	Shield Assy, Fuel Tank Filler Pipe
77291A	Shield, Fuel Tank Filler Pipe
77292C	Shield, Fuel Tank Filler Pipe, NO.2
77295C	Grommet, Fuel Tube
77296C	Plate, Fuel Hose Grommet Support
77297	Connector, Fuel Tube
77298D	Adapter, Fuel Tube Joint
77299A	Clamp, Fuel Tube, NO.5
77310A	Cap Assy, Fuel Tank
77311A	Cap, Fuel Inlet Coupler
77316	Gasket, Fuel Tank Cap
77321	Coupler, Fuel Inlet
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77371L	Ring, Fuel Tank Filler Pipe Shield
77377	Retainer, Fuel Filler Opening Lid Lock
77391	Ring, Fuel Inlet Box
77411B	Support, Fuel Tube Grommet, NO.1
77413A	Support, Fuel Tube Grommet, NO.3
77415	Support, Fuel Tube Grommet, NO.5
77416	Support, Fuel Tube Grommet, NO.6
77417	Support, Fuel Tube Grommet, NO.7
77419	Hose, Fuel, NO.3
77511A	Bracket, Fuel Tank
77512	Bracket, Fuel Tank, Rear
77606F	Case Sub-assy, Fuel Tank Cover Vent
77607	Case Sub-assy, Fuel Tank Cover Vent, LH
77608B	Frame Sub-assy, Fuel Tank, Lower
77611	Band, Fuel Tank
77612B	Band, Fuel Tank, NO.2
77613C	Band, Fuel Tank, NO.3
77614	Seat, Fuel Tank Band
77616C	Seat, Fuel Tank Band
77617B	Cover, Fuel Tank Valve, Rear
77617C	Cover, Fuel Tank Valve, Rear
77618A	Cover, Fuel Tank Valve, Lower
77631C	Cover, Fuel Tank Valve Handle, Upper
77632A	Cover, Fuel Tank Valve Handle, Lower
77633	Stay, Fuel Tank
77644	Bolt, Fuel Tank
77651A	Cushion, Fuel Tank, NO.1
77652A	Cushion, Fuel Tank, NO.2
77653A	Cushion, Fuel Tank, NO.3
77654A	Cushion, Fuel Tank, NO.4
77657C	Seal, Fuel Tank Valve Cover, NO.1
77658	Moulding, Fuel Tank Edge
77658D	Seal, Fuel Tank Valve Cover, NO.2
77681A	Seat, Fuel Tank Band
77681B	Seat, Fuel Tank Band
77682A	Seat, Fuel Tank Band, NO.2
77682B	Seat, Fuel Tank Band, NO.2
77683	Seat, Fuel Tank Band, NO.3
77704	Canister Sub-assy, Charcoal
77716	Bracket, Fuel Solenoid Valve Main
77720H	Valve Assy, Fuel Outlet
77740	Canister Assy, Charcoal
77740F	Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77770	Tank Assy, Charcoal Canister
89454B	Sensor, Fuel Temperature
89458C	Sensor, Fuel Pressure

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
