Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 2 illustrations

Illustrations

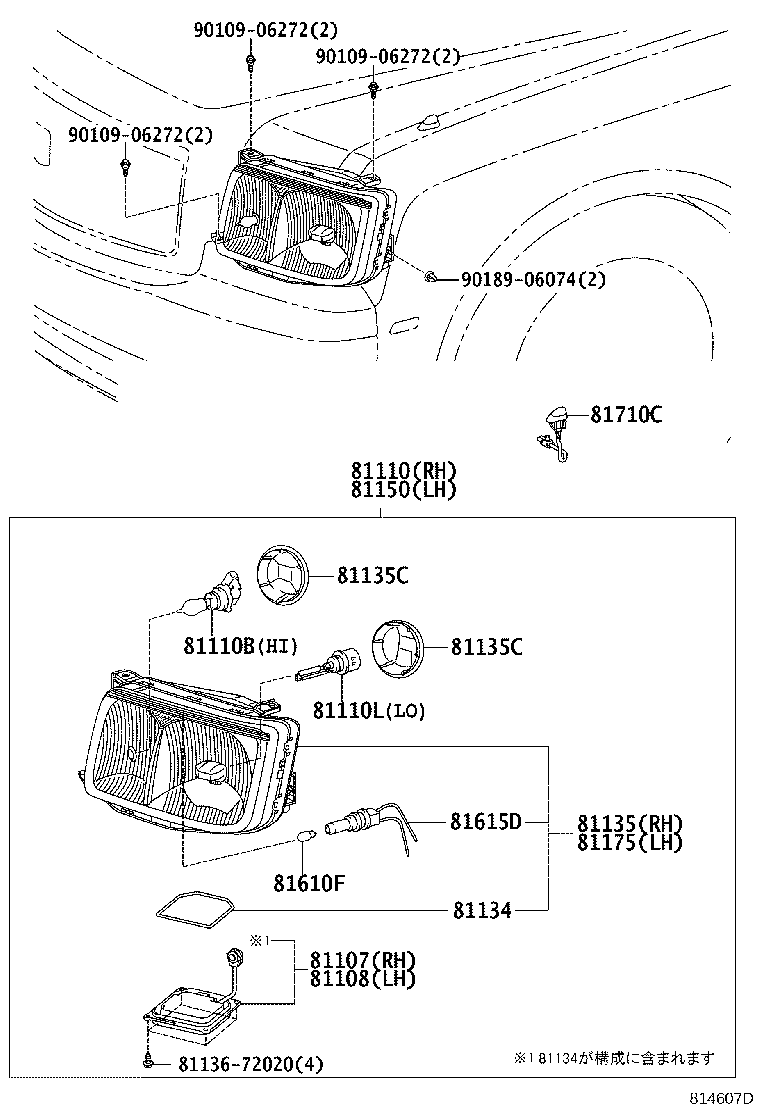

Figure 810343D 810343D 1997-04 → 2008-01 Figure 814607D 814607D 2008-01 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81122 Holder, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81138A Socket & Wire, Headlamp
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
81710C Marker Assy, Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
