Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

6 part groups · 2 illustrations

Illustrations

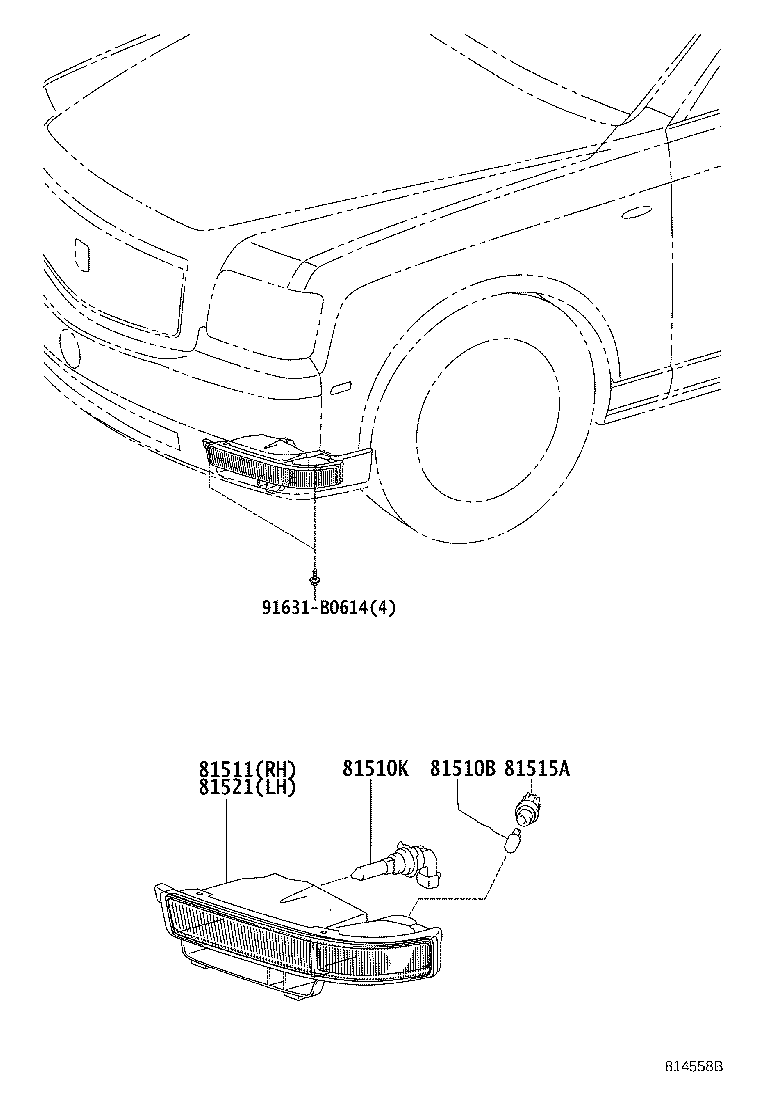

Figure 810344E 810344E 1997-04 → 2008-01 Figure 814558B 814558B 2008-01 → —

Part groups

PNCDescription
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81510K Bulb, Fog Lamp
81510P Bulb, Cornering Lamp
81511 Lens, Front Turn Signal Lamp, RH
81515A Plug Assy, Front Turn Signal Lamp
81521 Lens, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
