Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 3 illustrations

Illustrations

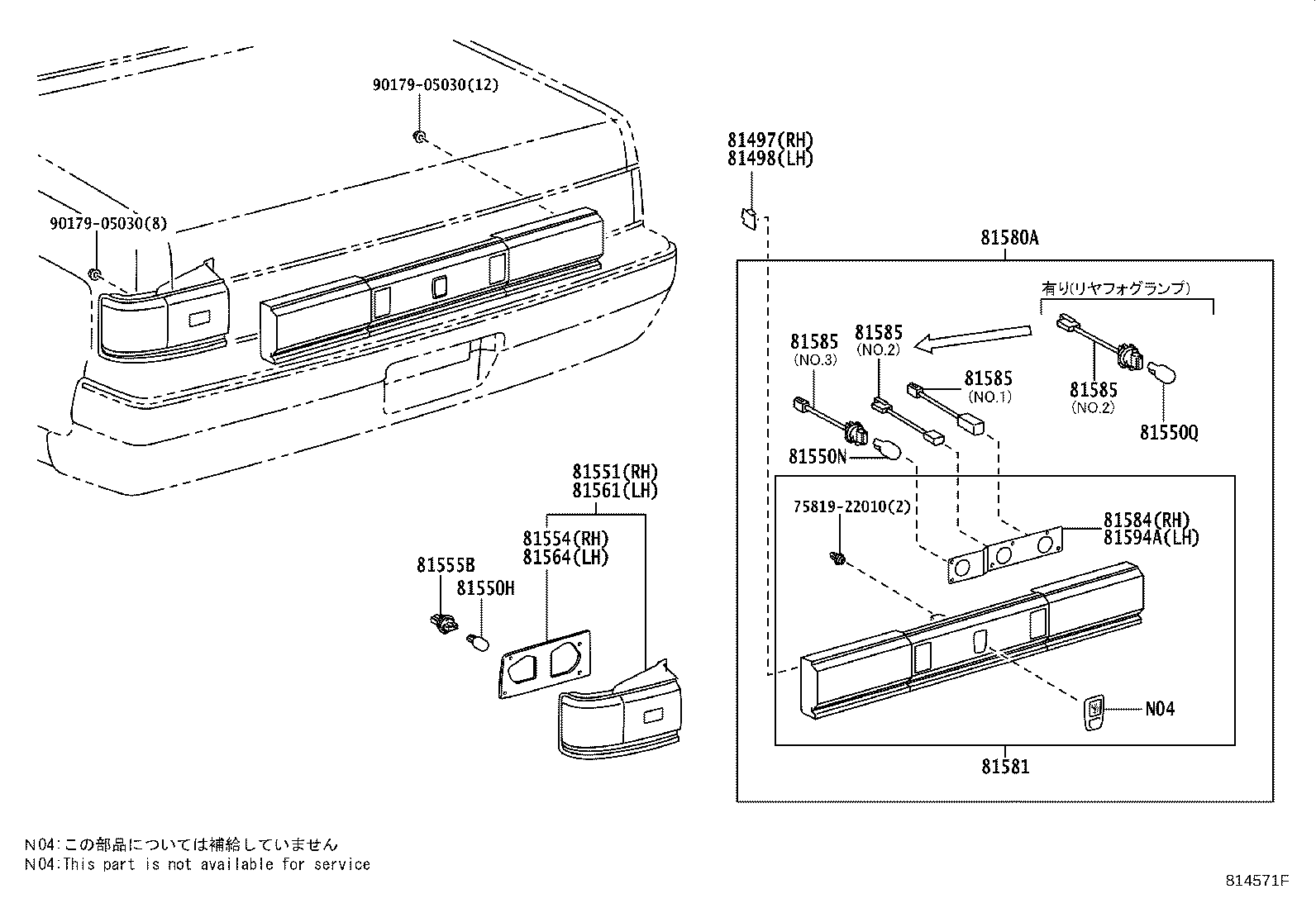

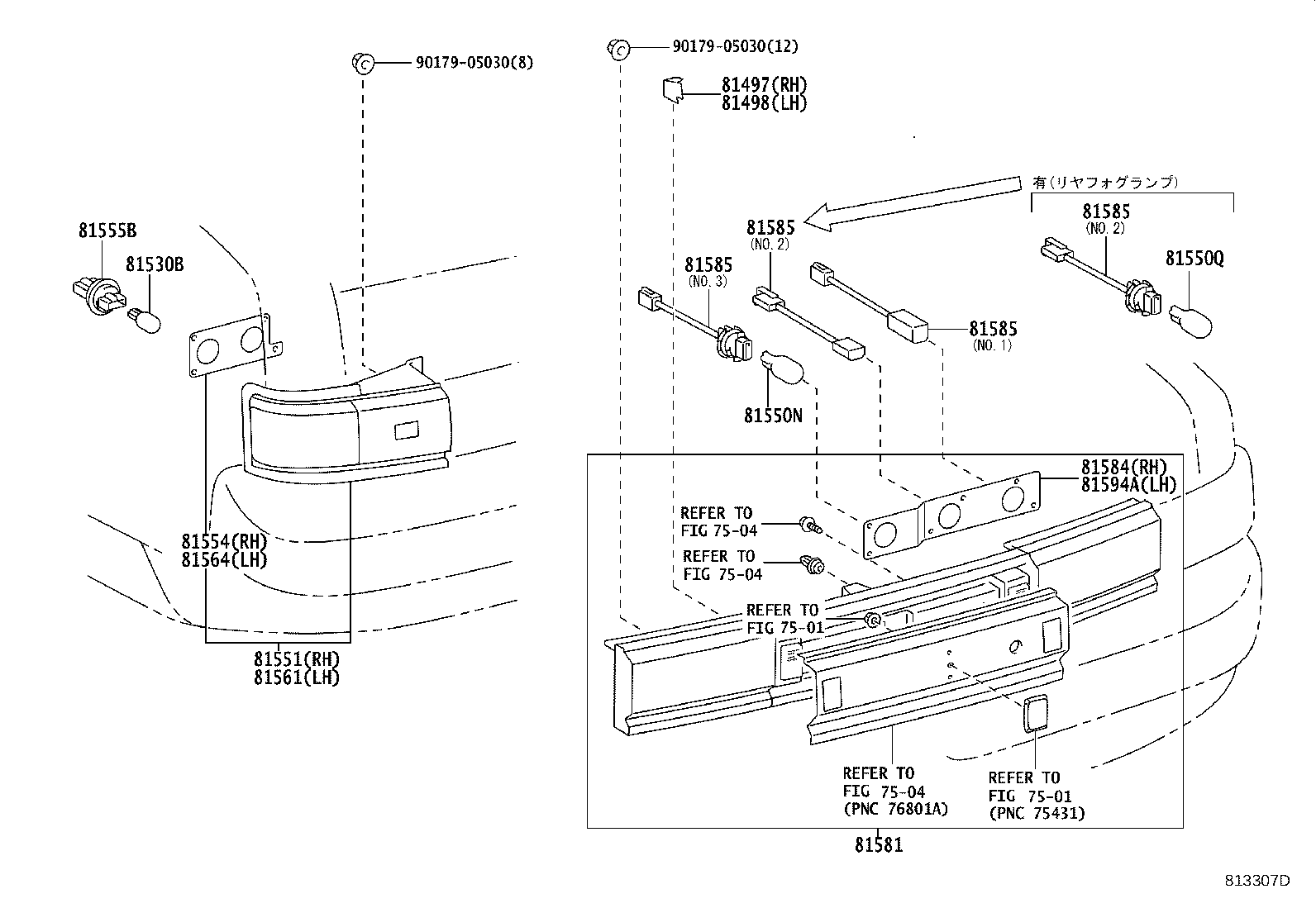

Figure 810348O 810348O 1997-04 → 2005-01 Figure 813307D 813307D 2005-01 → 2008-01 Figure 814571F 814571F 2008-01 → —

Part groups

PNCDescription
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81530B Bulb, Rear Turn Signal Lamp
81550H Bulb, Tail & Stop Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555B Socket Plug, NO.1
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81580A Lamp Assy, Rear
81580B Bulb (FOR REAR LAMP)
81581 Lens, Rear Lamp
81584 Packing, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
