Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

15 part groups · 2 illustrations

Illustrations

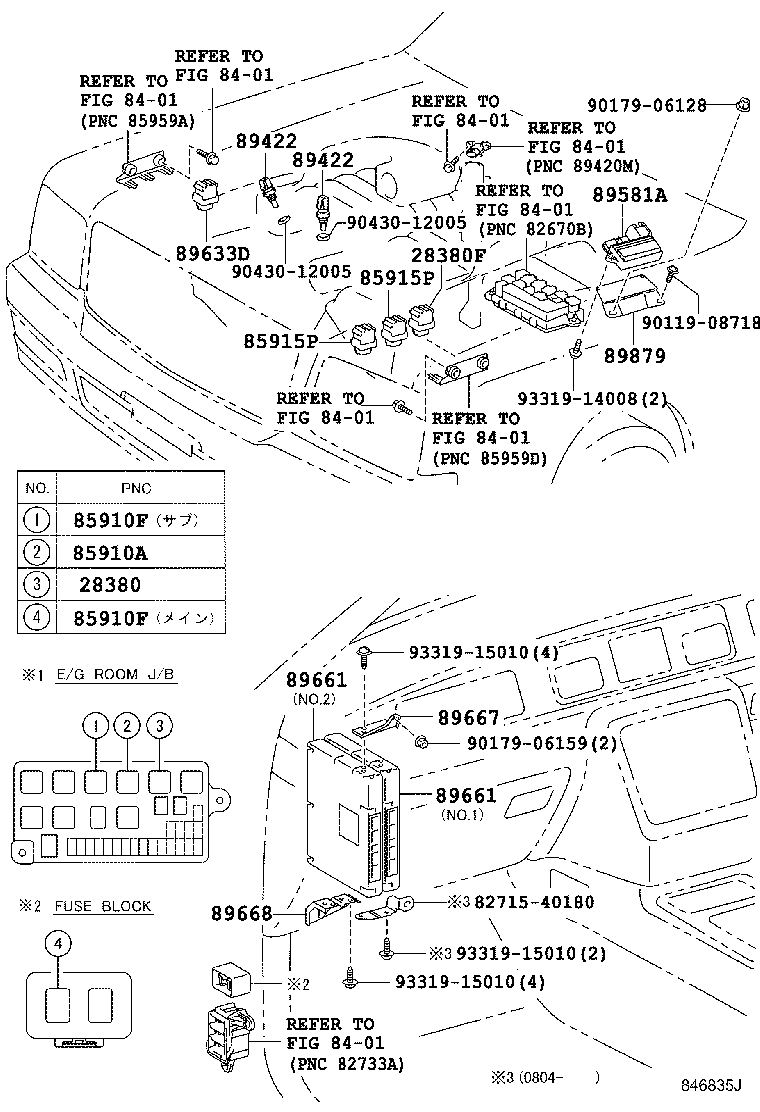

Figure 840776F 840776F 1997-04 → 2005-01 Figure 846835J 846835J 2005-01 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
28380F Relay Assy, Fuel Pump Select
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85915P Relay, Throttle
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89581A Driver, Air Injection Control
89633D Air Speed Valve Relay
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
