Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

23 part groups · 5 illustrations

Illustrations

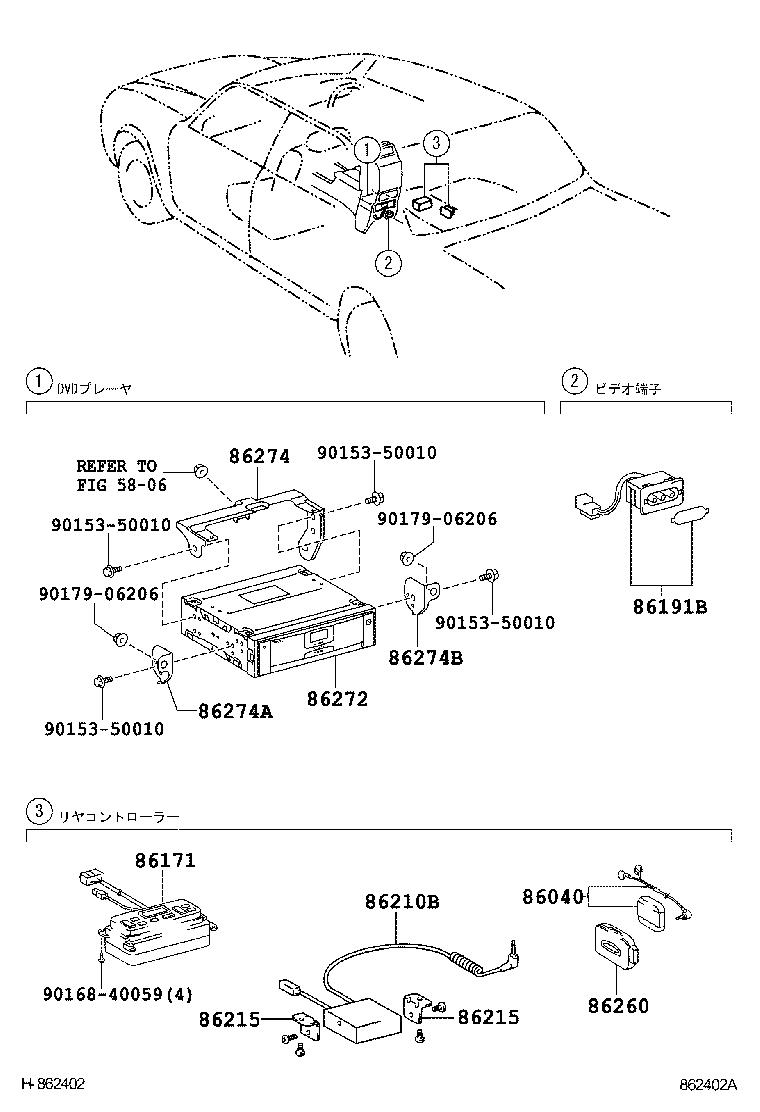

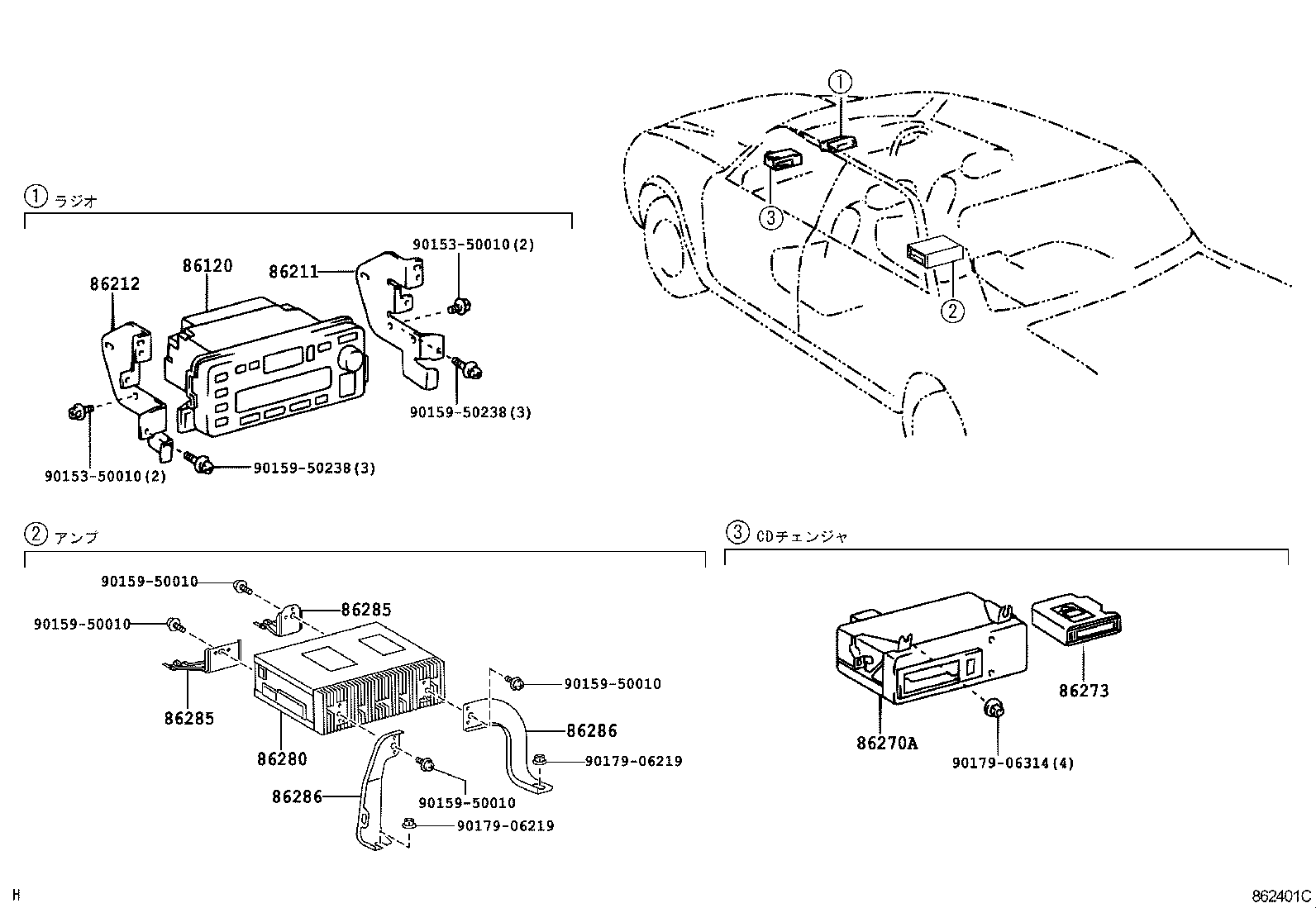

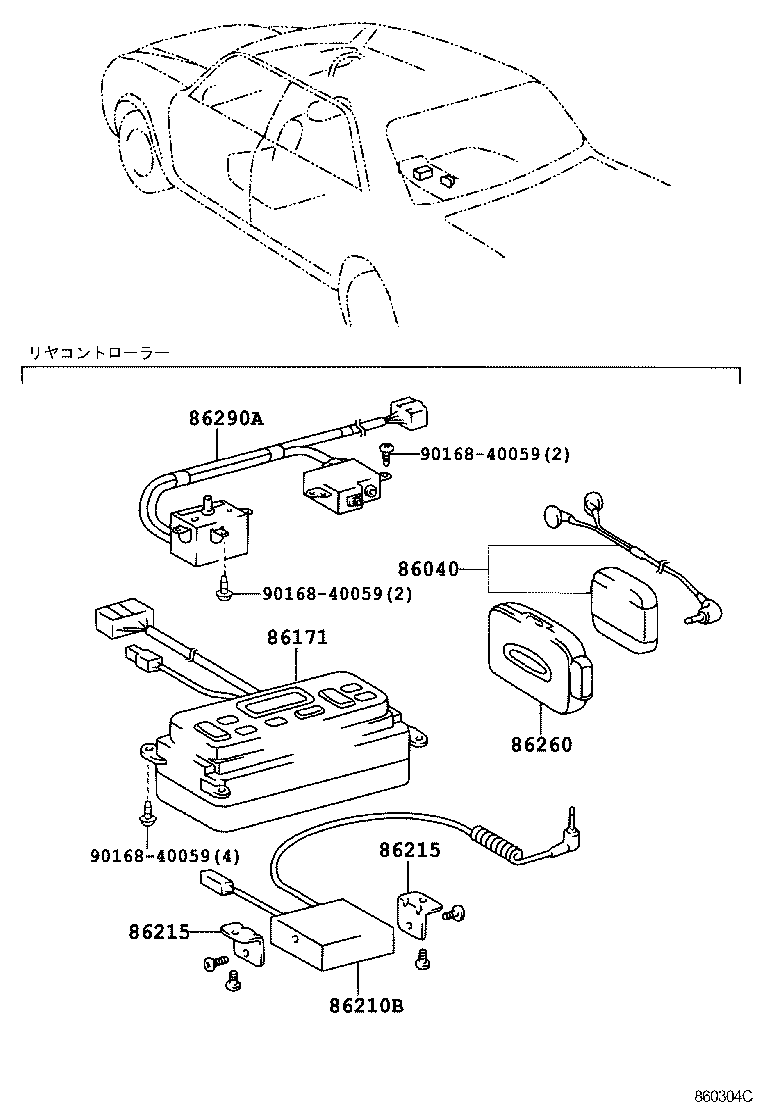

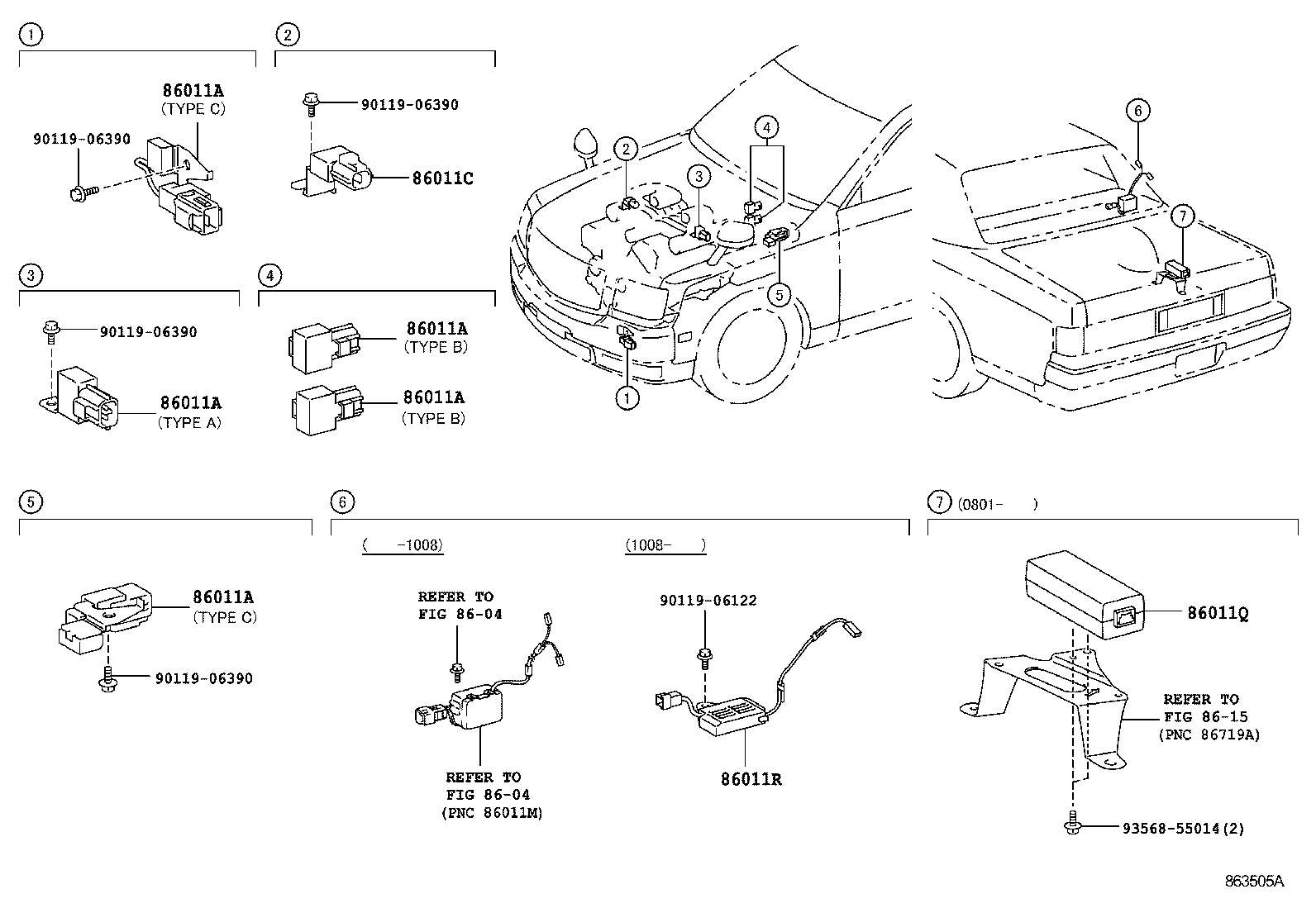

Figure 860303F 860303F 1997-04 → 2005-01 Figure 862401C 862401C 2005-01 → — Figure 860304C 860304C 1997-04 → 2005-01 Figure 862402A 862402A 2005-01 → — Figure 863505A 863505A 1997-04 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86040 Headphone Assy, Stereo
86120 Receiver Assy, Radio
86171 Base, Radio Remote Control
86191B Terminal, Video(VIDEO ADAPTER)
86210B Converter Assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86215 Bracket, Radio, NO.5
86260 Tape Player Assy
86270A Disc Player Assy
86272 Controller, Disc Player
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
86274B Bracket, Disc Player
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86290A Amplifier Assy, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
