Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

26 part groups · 3 illustrations

Illustrations

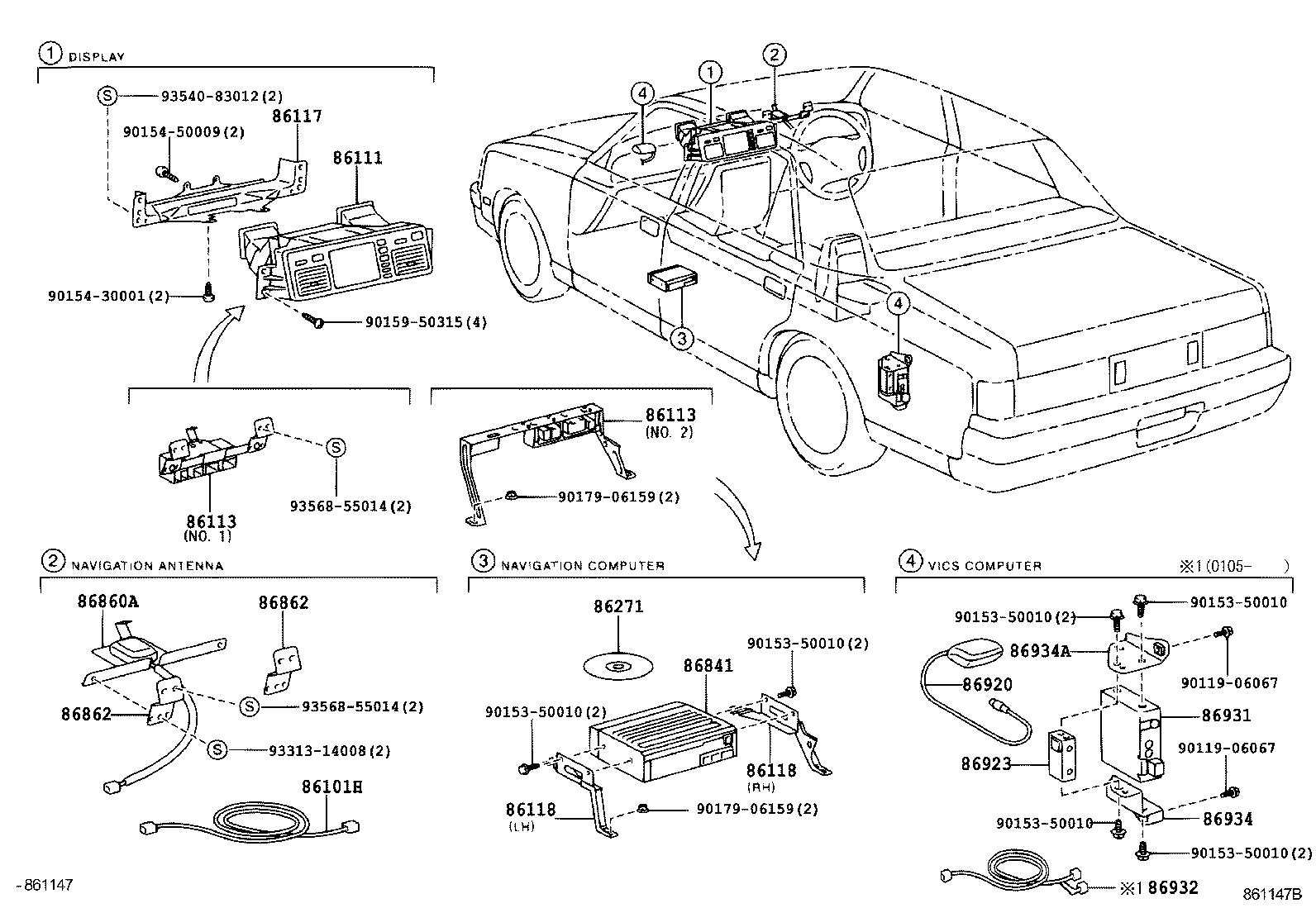

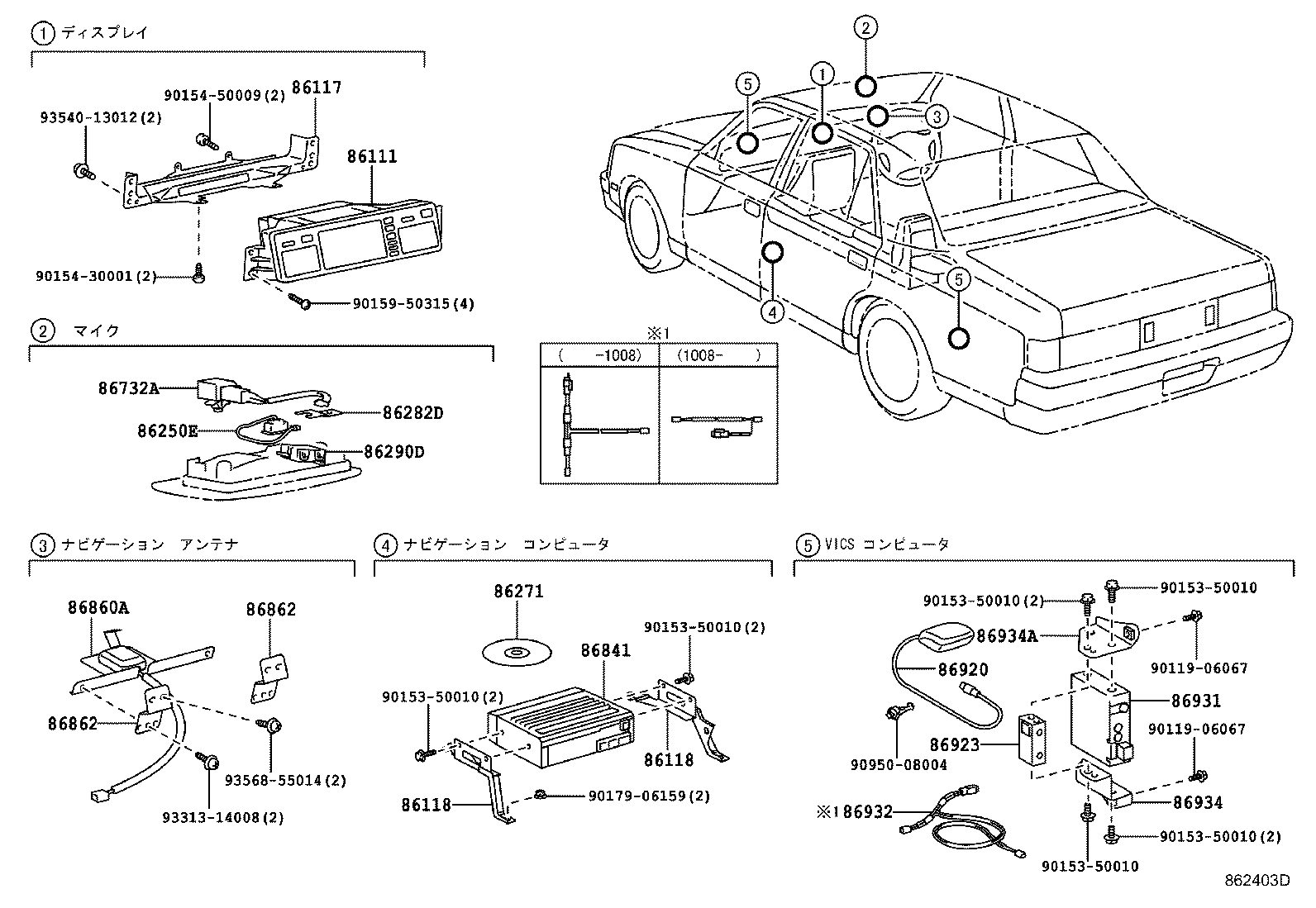

Figure 860299E 860299E 1997-04 → 2000-04 Figure 861147B 861147B 2000-04 → 2005-01 Figure 862403D 862403D 2005-01 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86111 Multi-display
86113 Block, Multi-display Junction
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86273A Magazine, Disc Player
86282D Bracket, Microphone
86286A Bracket, Amplifier, NO.2
86290D Amplifier Assy, Microphone
86732A Wire,Microphone
86807 Disc Kit, Cd-rom
86841 Computer, Navigation
86845 Card, Navigation
86851 Receiver, Navigation
86860A Antenna, Navigation
86862 Bracket, Navigation Antenna
86870 Player Assy, Cd-rom
86920 Antenna Assy, Traffic Information
86923 Detector, Traffic Information
86931 Computer, Traffic Information
86932 Wire, Traffic Information
86934 Bracket, Traffic Information, NO.1
86934A Bracket, Traffic Information, NO.2
89226A Fiber, Optical
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
