Toyota Century
1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan
Discontinued model
Data version 2017-07

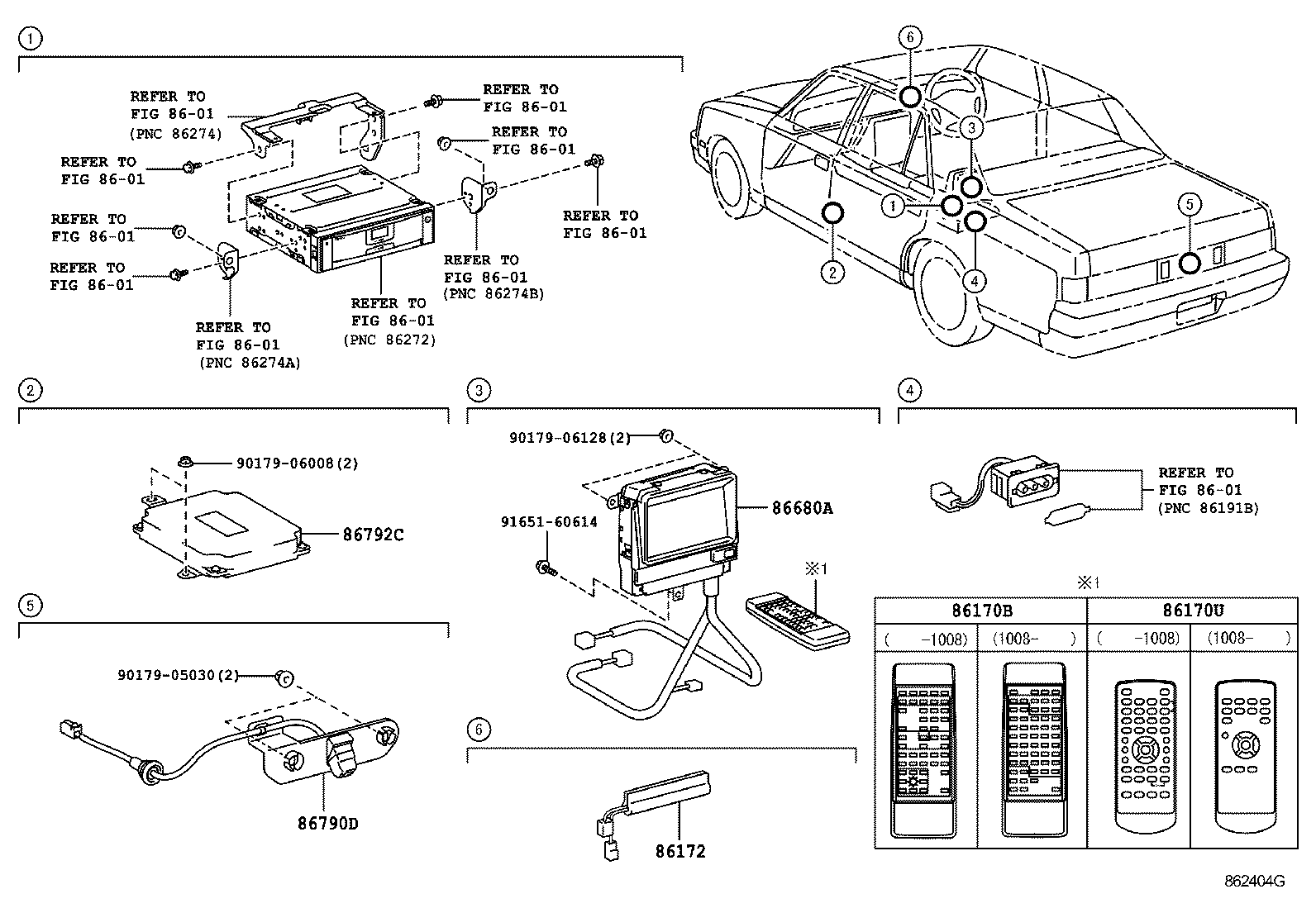

Camera & Rear Monitor Display
14 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010A | Tuner Assy, Television |
| 86029 | Bracket Set, Television |

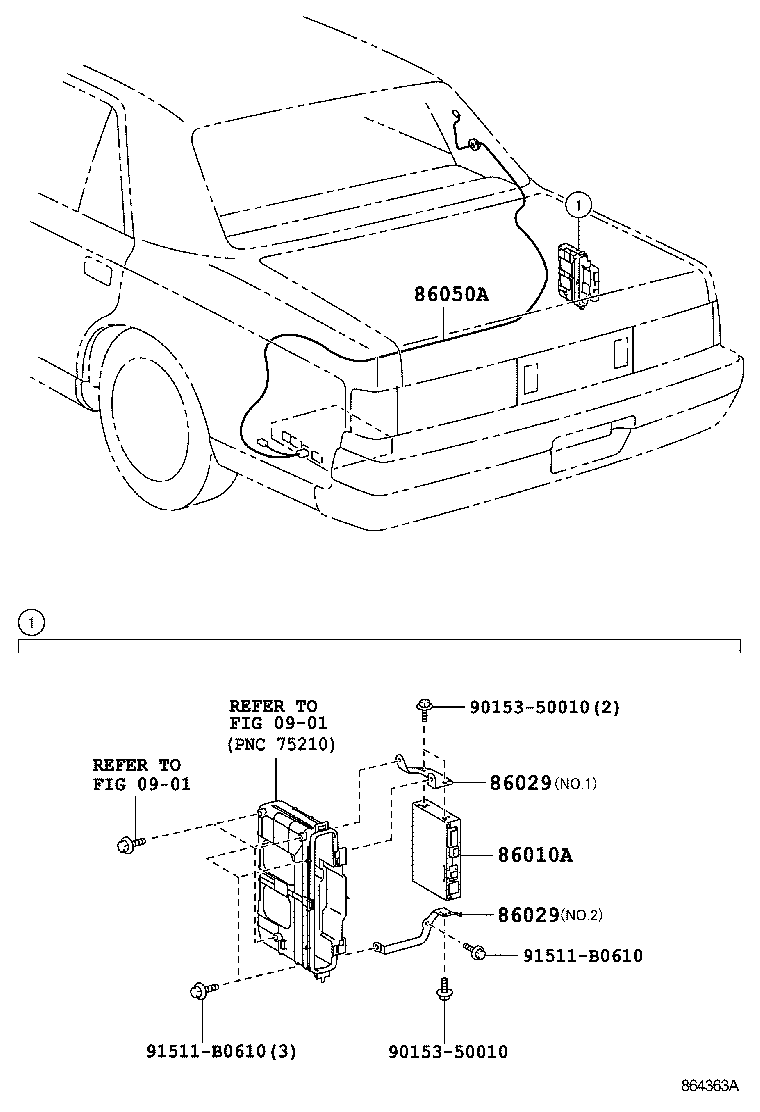

| 86050A | Antenna Assy, Television |
| 86117A | Bracket, Television Display, A |
| 86117C | Bracket, Multi-display Controller, NO.2 |
| 86118A | Bracket, Television Display, B |
| 86170B | Switch & Volume Assy, Television |
| 86170U | Switch & Volume Assy, Rear |
| 86172 | Receiver, Television Remote Control |
| 86680A | Display Assy, Television |
| 86681 | Divider, Antenna |
| 86690A | Video Deck Assy |
| 86790D | Camera Assy, Television, RR |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
