Toyota Century

1997-04 → 2017-01 · chassis GZG50 · catalogue 341140 · Japan

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

20 part groups · 5 illustrations

Illustrations

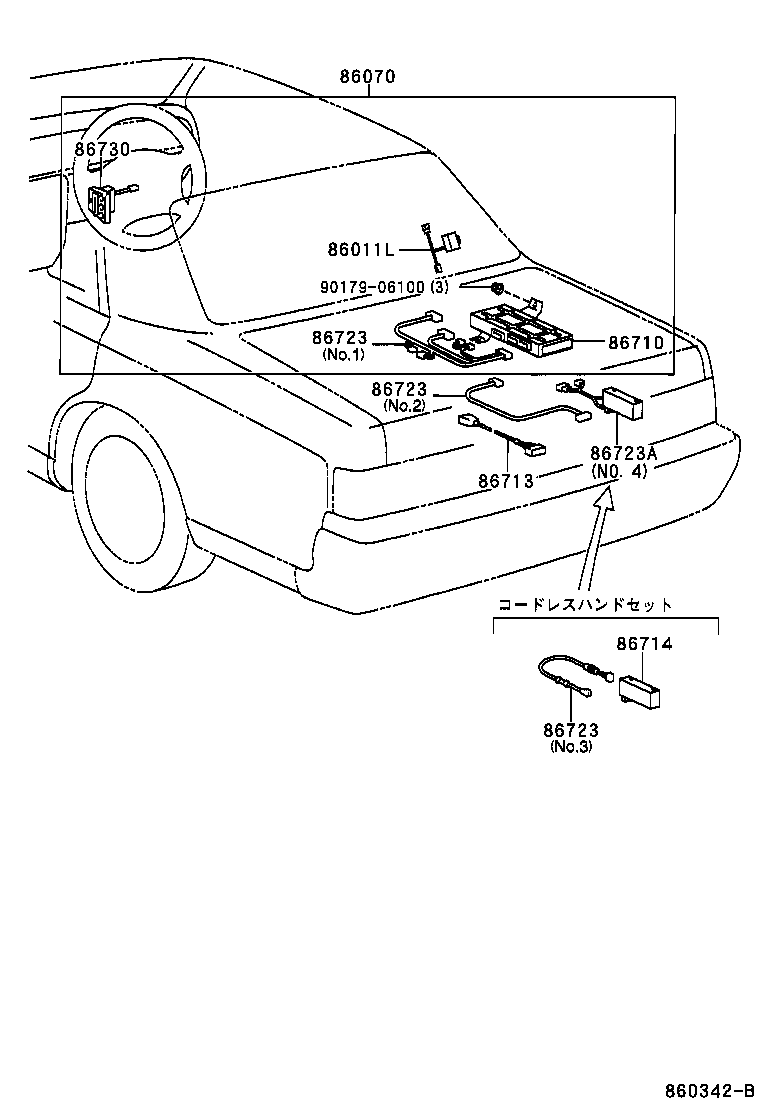

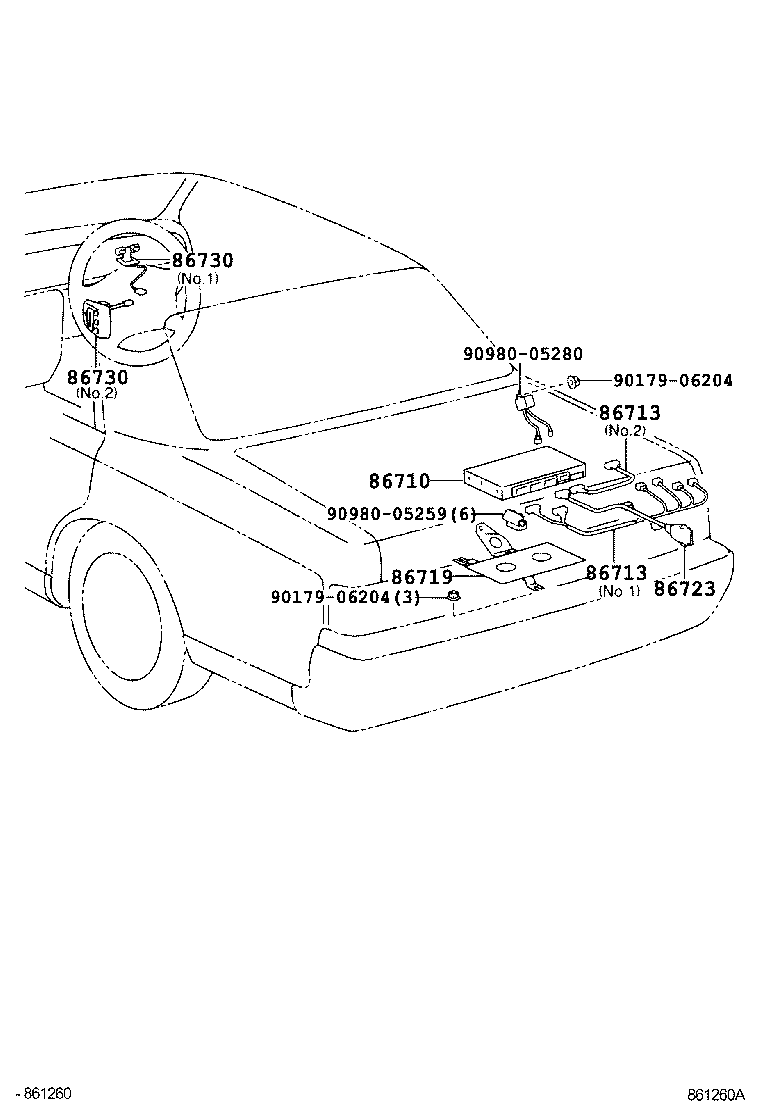

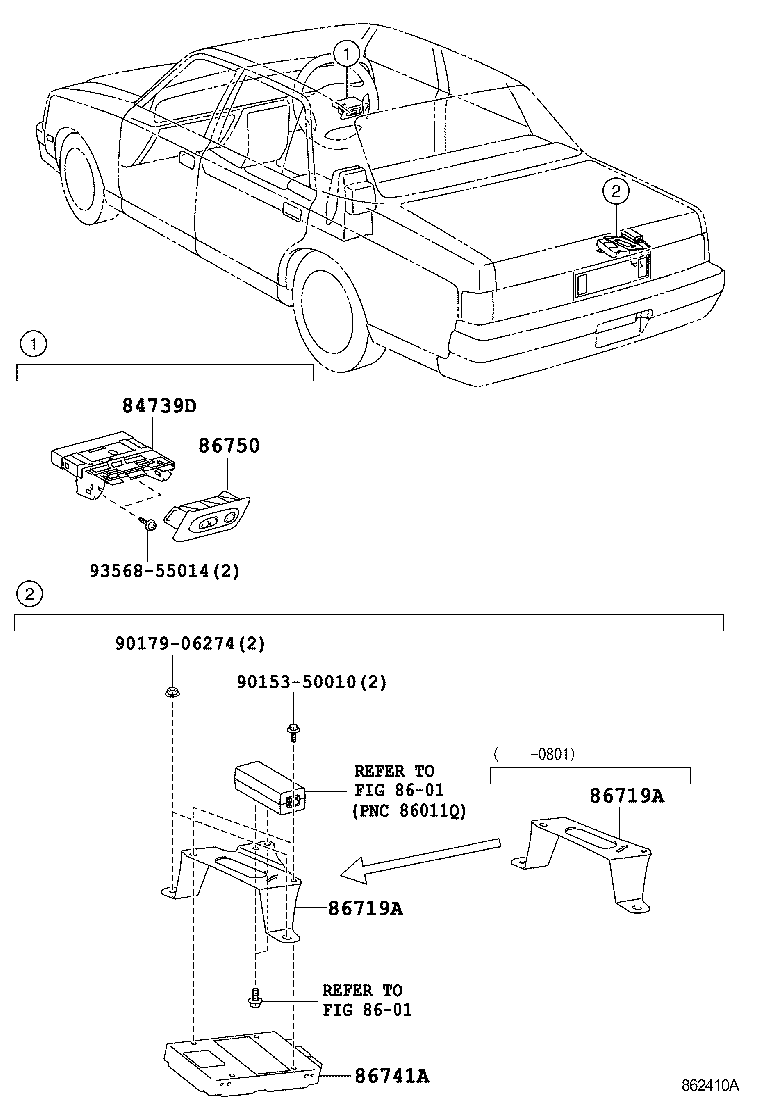

Figure 860340A 860340A 1997-04 → 2005-01 Figure 862410A 862410A 2005-01 → — Figure 860341B 860341B 1997-04 → — Figure 860342B 860342B 1997-04 → 2000-04 Figure 861260A 861260A 2000-04 → 2005-01

Part groups

PNCDescription
84739D Retainer, Switch
86011L Filter, Noise
86070 Mobilephone & Accessory Assy
86070A Mobilephone & Accessory Assy (HANDSET)
86705 Cord Sub-assy, Telephone Antenna
86710 Computer Assy, Telephone
86712 Wire, Telephone
86713 Wire, Telephone Computer
86714 Controller, Telephone
86719 Bracket, Telephone
86719A Bracket, Telephone NO.1
86720 Mobilephone Assy
86723 Wire, Mobilephone
86723A Wire, Mobilephone
86725 Battery, Mobilephone
86726 Cover, Mobilephone
86726A Cover, Mobilephone, NO.2
86730 Microphone Assy, Telephone
86741A Transceiver, Telematics
86750 Switch Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
