Toyota Century
2018-06 → present · chassis UWG60 · catalogue 341150 · Japan
Supported model
Data version 2018-07

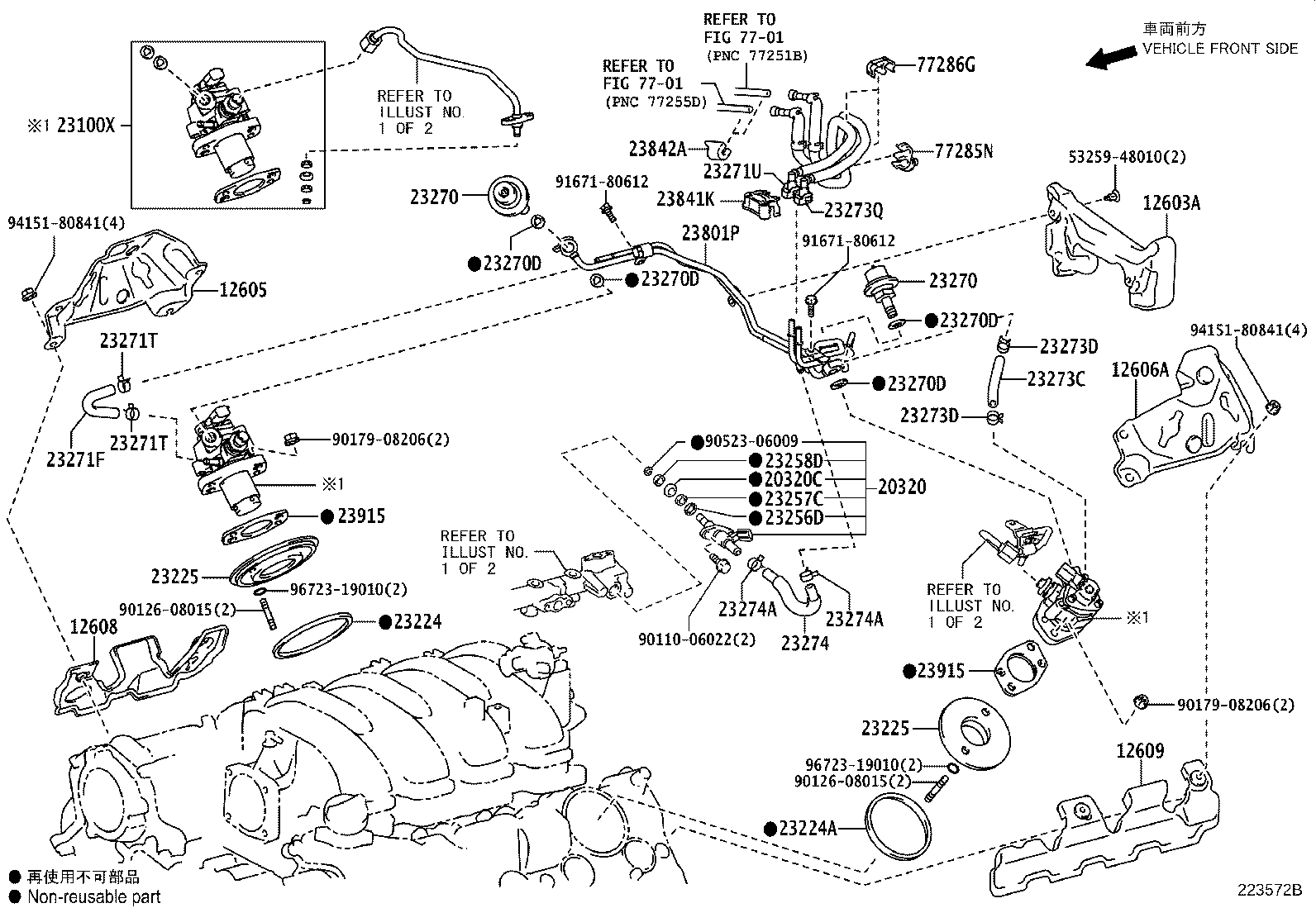

Fuel Injection System
58 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12603A | Cover, Sub-assy, Engine, NO.3 |
| 12605 | Cover Sub-assy, Engine, RH |
| 12606A | Cover Sub-assy, Engine, LH |
| 12608 | Cover Sub-assy, Engine, NO.5 |
| 12609 | Cover Sub-assy, Engine, NO.6 |
| 20320 | Valve Assy, Fuel Relief |
| 20320C | Ring, O(FOR FUEL RELIEF VALVE) |
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22271 | Gasket, Throttle Body |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23224 | Gasket, Fuel Pump Spacer, RH |
| 23224A | Gasket, Fuel Pump Spacer, LH |
| 23225 | Spacer, Fuel Pump |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250E | Injector Assy, Fuel(FOR DIRECT) |
| 23250F | Injector Assy, Fuel(FOR PORT) |
| 23250G | Ring, O, NO.2(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23256A | Ring, Fuel Pipe, NO.1 |
| 23256D | Ring, Fuel Relief Valve Back-up, NO.1 |
| 23257 | Ring, Fuel Injector Back-up, NO.2 |
| 23257A | Ring, Fuel Pipe, NO.2 |
| 23257C | Ring, Fuel Relief Valve Back-up, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23258D | Ring, Fuel Relief Valve Back-up, NO.3 |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270D | Gasket(FOR PULSATION DAMPER) |
| 23271F | Hose, Fuel |
| 23271T | Clamp OR Clip(FOR FUEL HOSE) |
| 23271U | Hose, Fuel, NO.1 |
| 23273C | Hose, Fuel, NO.2 |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23273Q | Hose, Fuel, NO.2 |
| 23274 | Hose, Fuel, NO.3 |
| 23274A | Clip(FOR HOSE, FUEL, NO.3) |
| 23274K | Hose, Fuel, NO.3 |
| 23291 | Insulator, Injector Vibration |
| 23291A | Insulator, Injector Vibration |
| 23695A | Clamp, Nozzle Holder |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23804 | Pipe Sub-assy, Fuel, NO.4 |
| 23807R | Plug, Fuel Delivary Pipe |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23809 | Support Sub-assy, Fuel Pipe |
| 23811B | Pipe, Fuel, NO.1 |
| 23814B | Pipe, Fuel Delivery |
| 23815 | Pipe, Fuel Delivery, NO.2 |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23841K | Clamp, Fuel Pipe |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23860 | Pipe Assy, Fuel Delivery W/Sensor, LH |
| 23901 | Tube Sub-assy, Fuel |
| 23915 | Insulator, Fuel Pump |
| 77281P | Clamp, Fuel Hose |
| 77285N | Clamp, Fuel Tube, NO.1 |
| 77286G | Clamp, Fuel Tube, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
